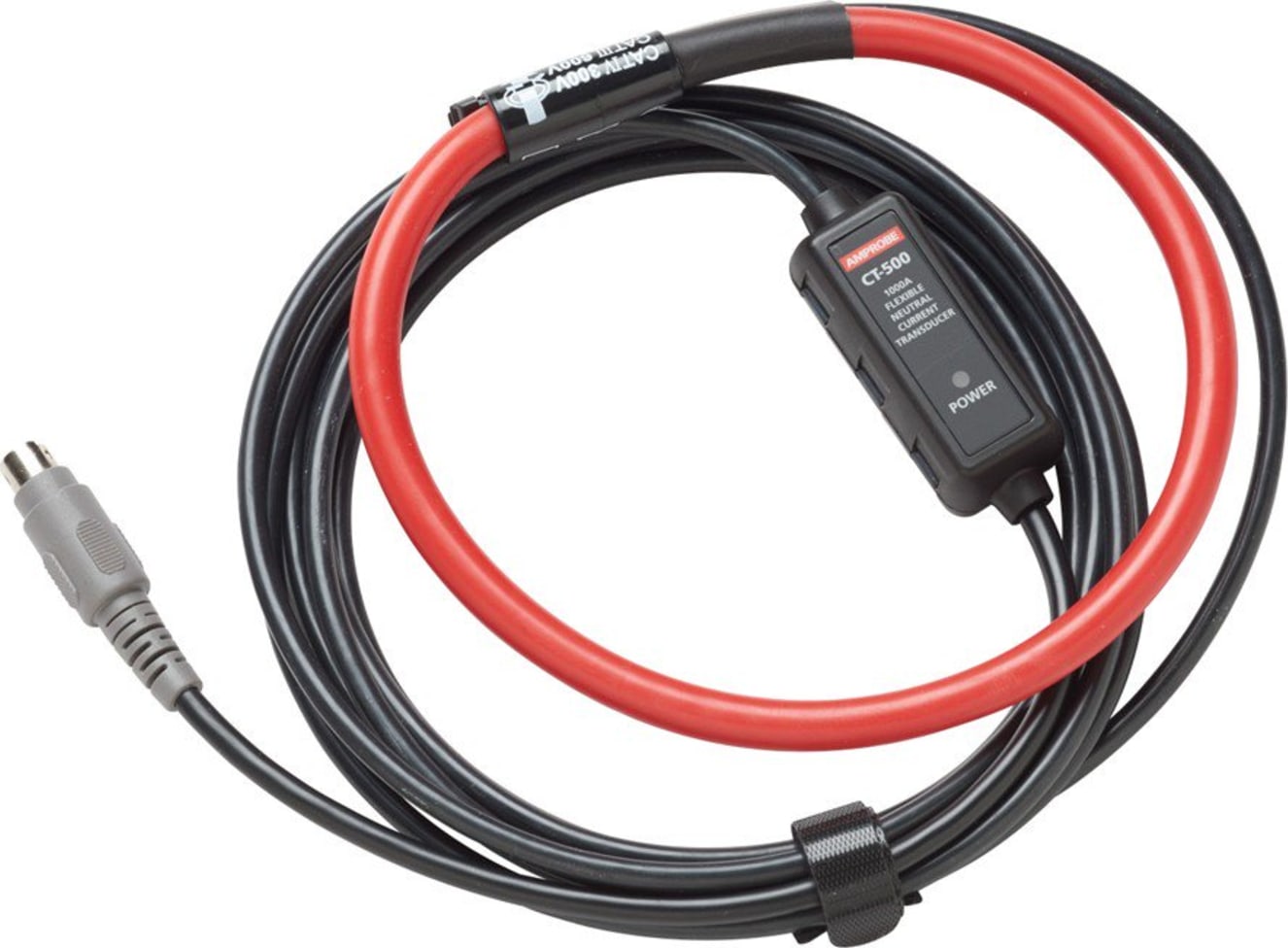

Amprobe CT-500 Flex Current Sensor for DM-5

Name: Amprobe CT-500 Flex Current Sensor for DM-5
Brand: Amprobe
SKU: AmprobeCT-500
Price: 528.67 USD
Availability: InStock

0 reviews | UPC: 095969808781 | Model: Amprobe CT-500

Compare

1000A FLEXIBLE NEUTRAL CURRENT TRANSDUCER

View Product Details

List Price: $684.99

In Stock:

Recommended for you

Choose a Category

(11)

In Stock!

Add to Cart

Specifications	CT-500 Flex Current Sensor
Current ranges	1000 A, AC rms
Output voltage	500 mVac / 1000 Aac (0.5 mV / A)
Measuring range	0 to 1000 A (1850 Apeak)
Accuracy (sine wave)	±0.8% ± 0.2 mV (45 Hz to 65 Hz) ±1.5% ± 0.2 mV (40 Hz to 1 kHz)
Phase characteristics	45 Hz to 65 Hz within ±2° 40 Hz to 1 kHz within ±3°
Working voltage	600 Vac rms
Max allowed input	1300 Aac continuous
Measurable conductor size	Max. 4.3 in (11 cm) diameter
Head circumference	15.75 in (40 cm)
Head cable diameter	0.33 in (8.5 mm)
Cable length (head to electronics)	Approx. 8.56 ft (2.7 m)
Cable length (output cable)	Approx. 0.66 ft (0.2 m)
Output terminal	Mini-DIN-6 connector
Output impedance	100 Ω or less
Current consumption (at power supply 3 V)	Max. 2 mA (typical)
Operating temperature and humidity	14 °F to 122 °F (-10 °C to 50 °C), ≤85 %RH (no condensation) Guaranteed accuracy at 73 °F ± 9 °F (23 °C ± 5 °C), ≤85 %RH (no condensation)
Storage temperature and humidity	-4 to 140 °F (-20 °C to 60 °C), ≤85 % RH (no condensation)
Operating altitude	0 to 6,561 ft (0 to 2,000 m)
EMC	EN 61326
Safety compliance	UL/IEC 61010-1, IEC 61010-2-030, IEC 61010-2-032 Measurement CAT III 600 V, CAT IV 300 V, Pollution degree 2
Certification	(UL tested with DM-5)
Weight	Approx. 0.4 lb (180 g)
