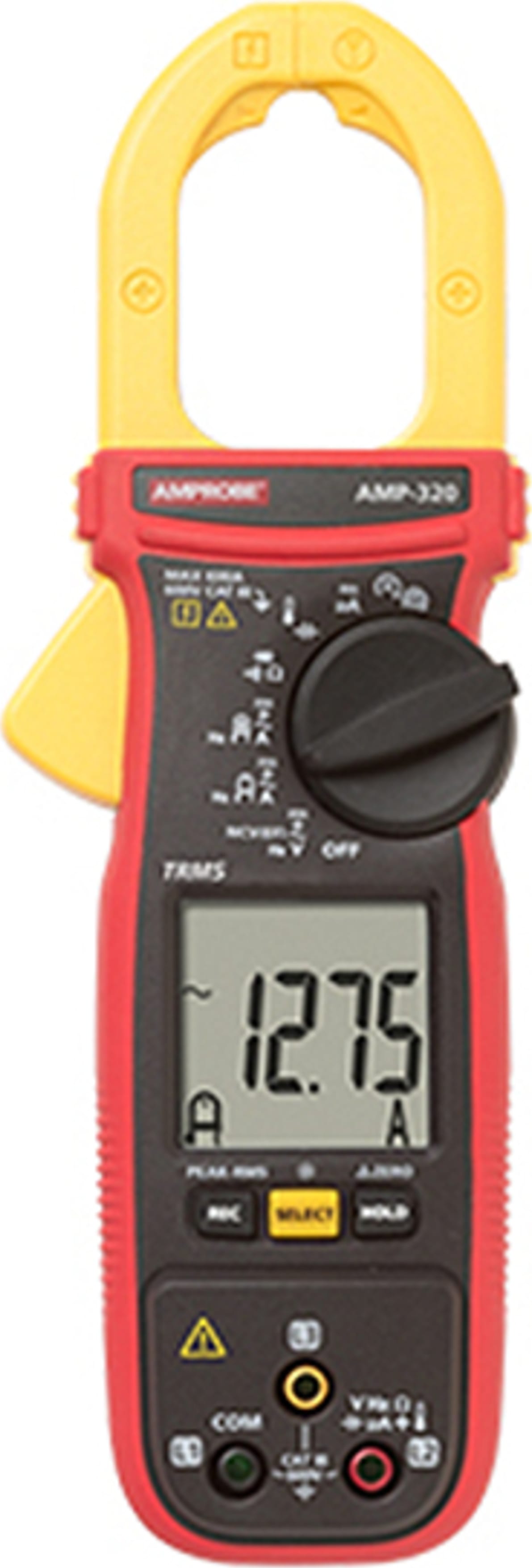

Amprobe 320 - TRMS Motor Maintenance Clamp Meter (600 A AC/DC)

Name: Amprobe 320 - TRMS Motor Maintenance Clamp Meter (600 A AC/DC)
Brand: Amprobe
SKU: Amprobe320
Price: 248.51 USD
Availability: InStock
Rating: 4.86 (7 reviews)

5 (7 Reviews) | UPC: 095969770880 | Model: Amprobe 320

Compare

600A ACDC TRMS CLAMP MULTIMETER W/ MOTOR TESTING

Maximum AC current = 600 A
Maximum DC current = 600 A
Maximum AC voltage = 600 V
Maximum DC voltage = 600 V
True RMS = yes
Measures temperature from -40 °F to 752 °F, (-40 °C to 400 °C)
Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
Measures capacitance, test diodes, and features a continuity beeper
Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
Monitors inrush current during motor start-up
Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
Amp-Tip function delivers precise low AC current measurements – 0 to 60 A
Includes a low pass filter to accurately measure voltage and current on variable frequency drives
Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
Provides data hold, relative zero, and MAX/MIN/AVG mode for quick analysis
Maximizes battery life with auto power off and low battery indicator
Backlit display for easy measurement viewing in bright and dim environments
CAT III 600 V safety rated
Accommodates conductors up to 1.37 inches (35 mm)

View Product Details

List Price: $321.99

Your Price: $248.51

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Amprobe 320 600A ACDC TRMS CLAMP MULTIMETER W/ MOTOR TESTING	Amprobe 220 600A ACDC TRMS CLAMP MULTIMETER	Amprobe 310 600A AC TRMS HVAC CLAMP MULTIMETER W/ MOTOR TESTING	Amprobe 330 1000A ACDC TRMS CLAMP MULTIMETER W/ MOTOR TESTING	Amprobe 210 600A AC TRMS CLAMP MULTIMETER
Price
In Stock
True RMS	Yes	Yes	Yes	Yes	Yes
Maximum Current AC	600 A	600 A	600 A	1000 A	600 A
Maximum Current DC	600 A	600 A	N/A	1000 A	N/A
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Amprobe 320 Accessories

Choose a Category

Line Splitters

for the Amprobe 320

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

Amprobe 320 - TRMS Motor Maintenance Clamp Meter (600 A AC/DC)

Maximum AC current = 600 A
Maximum DC current = 600 A
Maximum AC voltage = 600 V
Maximum DC voltage = 600 V
True RMS = yes

Whether you need an amp clamp for HVAC, general electrical or motor testing applications, the AMP-320 Clamp Meter, with its large backlit display, has the features you need. HVAC technicians will find the temperature and capacitance measurements they need plus DC Microamps for testing flame sensors. It also had core motor testing capabilities such as motor rotation, 3-phase sequence testing, and inrush current measurement for motor start-up monitoring. The low pass filter allows you to accurately measure current and voltage on variable frequency drives. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. It also offers a full range of standard multimeter features, including AC/DC current, AC/DC voltage, frequency, True-RMS, non-contact voltage detection, resistance, continuity and a CAT III 600 V safety rating.

AMP-300 Series

Motor Maintenance TRMS Clamp Meters

The Modern Evolution of the Professional Clamp Meter

Amprobe’s AMP-300 Series True-RMS Clamp Meters offer a complete range of measuring functions for modern industrial environments, motor testing and HVAC applications. All models feature True-RMS sensing, low pass filters and fast response processors for quick, error-free measurements. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, and a third input jack enables motor rotation and 3-phase sequence testing.

AMP-300 Series Applications

Accurate measurement of current, voltage and frequency on all electrical systems including distorted, non-sinusoidal signals (True-RMS function) and variable frequency drives (low pass filter).
Capacitance measurement for start and run motor capacitors.
Resistance and continuity functions to verify quality of electrical connections and to check if motor and transformer coils are working properly.
3-phase Motor and Phase Rotation Tests allow proper connection of a motor to a 3-phase system. Improperly connected motors will spin in a reverse direction, which may destroy the motor or equipment connected to it.
Low Pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency). Without this feature, the meter would provide erroneous readings when measuring voltage and current.
DC Microamps output for measurement of flame sensors. Test the proper operation of the flame sensor safety system in gas appliances. A broken sensor in a gas appliance will prevent the safety valve from opening and the appliance will not work.
Inrush current measurement for motor start-up monitoring, allowing users to verify that the motor is receiving the required inrush current to support proper motor start.

AMP-310 AC Clamp Meter HVAC

AMP-320 AC/DC Clamp Meter Electrical Motor Maintenance

AMP-330 AC/DC 1000 A Clamp Meter Industrial Motor Maintenance

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	600 A
Maximum Current DC	600 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Conductor Size	35 MM (1.38 IN) Maximum Conductor Size 1.37 inches
Resistance	Yes
Capacitance	Yes
Auto Ranging/Manual	Manual
In-Rush Current	Yes
Test Equipment General Attributes
Unique Features	DC Microamps Temperature (-40.0 to 752°F, -40.0 to 400°C 3-phase and motor rotation indication Inrush current CAT III 600 V
Warranty	1 YEARS
Safety Approval	CE, RoHS, UL
Product Weight	0.56 LBS Product Weight 254 g
Product Height	1.46 IN Product Height 224 x 77 x 37 mm
Product Length	12.50 IN
Product Width	3.03 IN
Data Logging	No
HTS/Schedule B Number	9030.32.0000
ECCN Number	3A992
Calibration Included	None
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	Taiwan
UPC	095969770880

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 7 reviews

Most Helpful First | Newest First

Recommend to a Friend

Great little machine

5.0

At a good price

Anonymous on Jul 03, 2020

Recommend to a Friend

Packed with features

5.0

I purchased this clamp multimeter for HVAC/R, hybrid vehicle, and electric vehicle diagnostics. The meter has many features rolled into one. If one wants a meter with a little bit of everything, this is your meter. Thanks Amprobe.

Sarblinski on Oct 27, 2017

Recommend to a Friend

great for HVAC/R GUYS

5.0

Hello HVAC/R students, This does the job.... period...you'll love it.

[email protected] on Sep 26, 2017

Recommend to a Friend

Got it

5.0

This meter does a decent job. It does however needs a magnet strap and the temp probe is definitely off by 10 degrees. But everything else seems to to be right on

Anonymous on Apr 22, 2017

Recommend to a Friend

Good meter for the price

4.0

Been using the Amprobe 320 almost daily, so far I'm very pleased with it, the only two things I dislike are the Fluke leads don't fit all the way in the meter ports like they would on a Fluke meter also the temperature readings are off by a few degrees and there is no way to calibrate it.

valdelocc on Aug 06, 2016

Recommend to a Friend

Found a new place for all my test equipment orders

5.0

I was going to order this somewhere else until I found Tequipment.net. Other place had 20% off and Tequipment beat their deal by another $20.

Thanks Tequipment.

Verified Purchase Glenn Polinski on Sep 08, 2015

Recommend to a Friend

Amprobe 320

5.0

Excellent size, large display is what sold me, fully loaded at an excellent price with free shipping & no tax.

Nick on Aug 31, 2015
