Amprobe 320-HD 600A ACDC TRMS Clamp with Motor Testing with Multipurpose Hard Case

Name: Amprobe 320-HD 600A ACDC TRMS Clamp with Motor Testing with Multipurpose Hard Case
Brand: Amprobe
SKU: Amprobe320-HD
Price: 206.98 USD
Availability: InStock

0 reviews | Model: Amprobe 320-HD

Compare

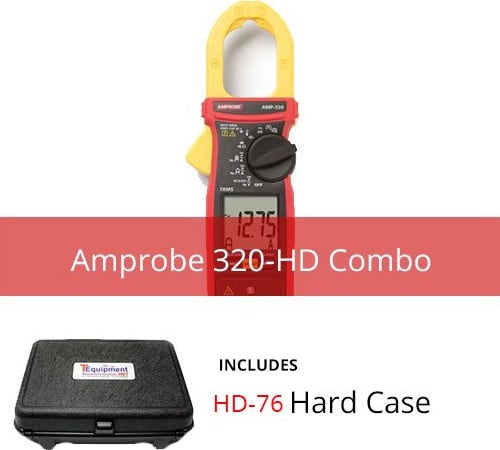

600A ACDC TRMS CLAMP MULTIMETER W/ MOTOR TESTING with Multipurpose Hard Case

Includes HD-76 Hardcase
Measures AC Current to 600 A and AC/DC Voltage to 600 V
Measures temperature from -40° to 752°F, (-40° to 400°C)
Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
Measures capacitance, test diodes, and features a continuity beeper
Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
Monitors inrush current during motor start-up
Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
Amp-Tip function delivers precise low AC current measurements – 0 to 60 A
Includes a low pass filter to accurately measure voltage and current on variable frequency drives
Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
Provides data hold, relative zero, and MAX/MIN/AVG mode for quick analysis
Maximizes battery life with auto power off and low battery indicator
Backlit display for easy measurement viewing in bright and dim environments
CAT III 600 V safety rated
Accommodates conductors up to 1.18 inches (30 mm)
Includes test leads, batteries (installed), alligator clip set, banana plug K-type thermocouple, carrying case, and user manual

View Product Details

List Price: $367.98

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Line Splitters

for the Amprobe 320-HD

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

ACDC TRMS Clamp

Measures AC Current to 600 A and AC/DC Voltage to 600 V
Measures temperature from -40° to 752°F, (-40° to 400°C)
Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
Measures capacitance, test diodes, and features a continuity beeper

Amprobe 320-HD 600A ACDC TRMS Clamp with Motor Testing with Multipurpose Hard Case

Whether you need an amp clamp for HVAC, general electrical or motor testing applications, the AMP-320 Clamp Meter, with its large backlit display, has the features you need. HVAC technicians will find the temperature and capacitance measurements they need plus DC Microamps for testing flame sensors. It also had core motor testing capabilities such as motor rotation, 3-phase sequence testing, and inrush current measurement for motor start-up monitoring. The low pass filter allows you to accurately measure current and voltage on variable frequency drives. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. It also offers a full range of standard multimeter features, including AC current, AC/DC voltage, frequency, True-RMS, non-contact voltage detection, resistance, continuity and a CAT III 600 V safety rating.

AMP-200 Series TRMS Clamp Meters

Amprobe’s AMP-210 and AMP-220 600 A TRMS Multimeter Clamps offer a complete range of measuring functions for today’s modern electrical environments. Both models feature True-RMS sensing, low pass ﬁlters and fast response processors for quick, error-free measurements. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires.

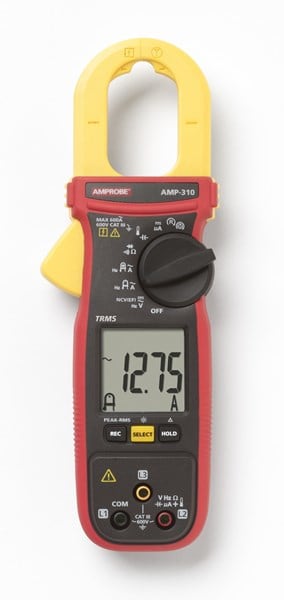

AMP-300 Series Motor Maintenance TRMS Clamp Meters

Amprobe’s AMP-300 Series True-RMS Clamp Meters offer a complete range of measuring functions for modern industrial environments, motor testing and HVAC applications. All models feature True-RMS sensing, low pass filters and fast response processors for quick, error-free measurements. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, and a third input jack enables motor rotation and 3-phase sequence testing.

AMP-200 Series Applications

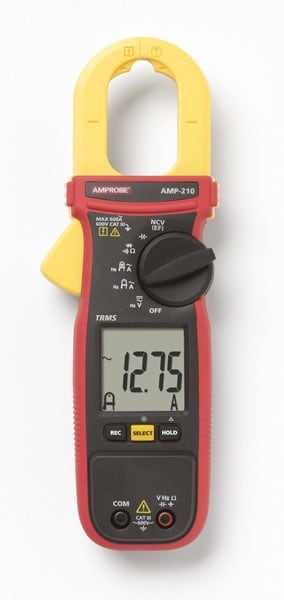

AMP-210 AC Clamp Meter

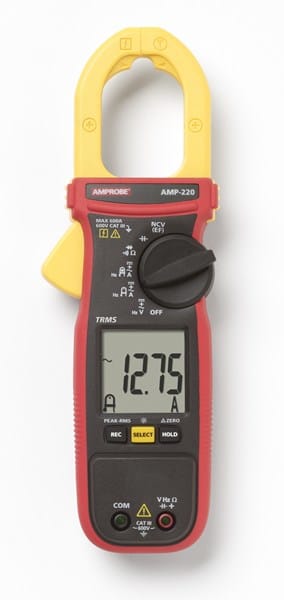

AMP-220 AC/DC Clamp Meter

Accurate measurement of current, voltage and frequency on all electrical systems including distorted, non-sinusoidal signals (True-RMS function) and variable frequency drives (low-pass filter).
Capacitance measurement for start and run motor capacitors.
Resistance and continuity functions to verify quality of electrical connections and to check if motor and transformer coils are working properly.
Low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency). Without this feature, the meter would provide erroneous readings when measuring voltage and current.

AMP-300 Series Applications

AMP-310 AC Clamp Meter HVAC

AMP-320 AC/DC Clamp
Meter Electrical Motor Maintenance

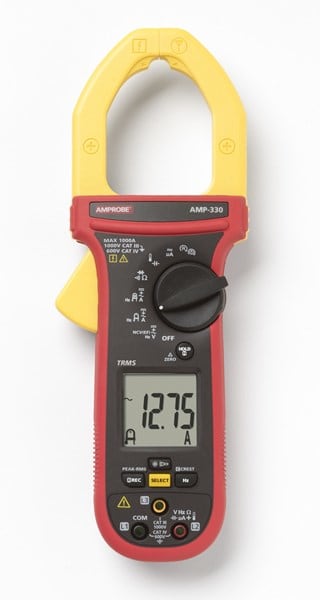

AMP-330 AC/DC 1000 A Clamp Meter
Industrial Motor Maintenance

Accurate measurement of current, voltage and frequency on all electrical systems including distorted, non-sinusoidal signals (True-RMS function) and variable frequency drives (low pass filter).
Capacitance measurement for start and run motor capacitors.
Resistance and continuity functions to verify quality of electrical connections and to check if motor and transformer coils are working properly.
3-phase Motor and Phase Rotation Tests allow proper connection of a motor to a 3-phase system. Improperly connected motors will spin in a reverse direction, which may destroy the motor or equipment connected to it.
Low Pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency). Without this feature, the meter would provide erroneous readings when measuring voltage and current.
DC Microamps output for measurement of flame sensors. Test the proper operation of the flame sensor safety system in gas appliances. A broken sensor in a gas appliance will prevent the safety valve from opening and the appliance will not work.
Inrush current measurement for motor start-up monitoring, allowing users to verify that the motor is receiving the required inrush current to support proper motor start

FEATURE		AMP-210	AMP-220	AMP-310	AMP-320	AMP-330
AC voltage (True-rms)	Range:	0 to 600.0 V				0 to 1000.0 V
AC voltage (True-rms)	Accuracy:	±1.0% + 5LSD (50 to 60 Hz)				±0.8% + 5LSD (50 to 60 Hz)
DC voltage	Range:	0 to 600.0 V
DC voltage	Accuracy:	±1.0% + 5LSD
AC+DC voltage	Range:	–	0 to 600.0 V	–	0 to 600.0 V	0 to 1000.0 V
AC+DC voltage	Accuracy:	–	±1.2% + 7LSD (50 to 60 Hz)	–	±1.2% + 7LSD (50 to 60 Hz)	±1.0% + 7LSD (50 to 60 Hz) ±1.8% + 7LSD (DC 40 to 200 Hz) ±1.2% + 7LSD 200 to 400 Hz)
AC current	Range:	0 to 600.0 A
AC current	Accuracy:	±1.8% + 5LSD (50 to 60 Hz) ±2.0% + 5LSD (100 to 400 Hz)
DC current	Range:	–	0 to 600.0 A	–	0 to 600.0 A	0 to 1000.0 A
DC current	Accuracy:	–	±2.0% + 5LSD (DC 50 to 100 Hz)	–	±2.0% + 5LSD (DC 50 to 100 Hz)	±1.8% + 5LSD (DC 50 to 100 Hz)
AC+DC current	Range:	–	0 to 600.0 A	–	0 to 600.0 A	0 to 1000.0 A
AC+DC current	Accuracy:	–	±2.2% + 7LSD (DC 50 to 100 Hz) ±2.7% + 7LSD (100 to 400 Hz)	–	±2.2% + 7LSD (DC 50 to 100 Hz) ±2.7% + 7LSD (100 to 400 Hz)	±2.2% + 7LSD (40 to 100 Hz) ±2.5% + 7LSD (100 to 400 Hz)
Precise low current AC	Range:	0 to 60.00 A
Precise low current AC	Accuracy:	±1.5% + 5LSD (50 to 60 Hz)				±1.5% + 5LSD (50 to 60 Hz) ±2.0% + 5LSD (0.00 to 20.00 A, 100 to 400 Hz) ±3.0% + 5LSD (>20.00 to 60.00 A, 40 to 100 Hz) ±3.0% + 5LSD (>20.00 to 60.00 A, 100 to 100 Hz)
Precise low current DC	Range:	–	0 to 60.0 A	–	0 to 60.0 A	0 to 60.00 A
Precise low current DC	Accuracy:	–	±2.0% + 5LSD	–	±2.0% + 5LSD	±1.5% + 5LSD (0.00 to 20.00 A) ±3.0% + 5LSD (>20.00 to 60.00 A)
Micro amps	Range:	–	–	0 to 2000 µA
Micro amps	Accuracy:	–	–	±1.0% + 5LSD
Frequency	Range:	5.00 to 999.9 Hz
	Accuracy:	±1.0% + 5LSD (600 V range)
	Range:	50.0 to 400.0 Hz
	Accuracy:	±2.0% + 4LSD (600 A range)
Resistance	Range:	0.0 to 60.00 kΩ
Resistance	Accuracy:	±1.0% + 5LSD
Capacitance	Range:	0.0 to 2500 µF
Capacitance	Accuracy:	±2.0% + 4LSD
Continuity beeper	ON ≤ 10 Ω
Continuity beeper	Off > 250 Ω
Temperature* (Type K thermocouple)		–	–	-40.0 to 752 °F -40.0 to 400 °C
Temperature* (Type K thermocouple)		–	–	±1.0% + 3.0 °F (-40.0 to 14.0 °F) ±1.0% + 1.5 °F (>40.0 to 99.9 °F) ±1.0% + 2.0 °F (100 to 752 °F) ±1.0% + 1.5 °C (-40.0 to 10.0 °C) ±1.0% + 0.8 °C (>-10.0 to 99.9 °C) ±1.0% + 1.0 °C (100 to 400 °C)
Non-contact voltage	10 V to 1000 V AC (50 to 60 Hz)
Phase rotation indication		–	–	Rotation-R for main supply Rotation-M for motors
Diode test		•	•	•	•	•
Jaw opening		1.18 in (30 mm)	1.37 in (35 mm)	1.18 in (30 mm)	1.37 in (35 mm)	2.0 in (51 mm)
Safty rating		CAT III 600 V				CAT IV 600V CAT III 1000 V
Special Features
In-rush current		–	•	•	•	•
Peak hold (Crest)		–	–	–	–	•
Relative zero		•	•	•	•	•
Max/Min/Avg		•	•	•	•	•
Data hold		•	•	•	•	•
Backlight		•	•	•	•	•
Auto power off		•	•	•	•	•
Work light		–	–	–	–	•

*Error does not include Type-K thermocouple errors

For complete specs please download the product datasheet under the "Resources" tab.

Model	AMP-210	AMP-220	AMP-310	AMP-320	AMP-330
Display	3-5/6 digits 6000 counts	3-5/6 digits 6000 counts	3-5/6 digits 6000 counts	3-5/6 digits 6000 counts	3-5/6 digits 6000 counts
Polarity	Automatic	Automatic	Automatic	Automatic	Automatic
Update Rate	5 per second nominal	5 per second nominal	5 per second nominal	5 per second nominal	5 per second nominal
Operating Temperature	32 to 104°F (0 to 40°C)	32 to 104°F (0 to 40°C)	32 to 104°F (0 to 40°C)	32 to 104°F (0 to 40°C)	14 to 122°F (-10 to 50°C)
Relative Humidity	80% at 30°C, 50% at 40°C	80% at 30°C, 50% at 40°C	80% at 30°C, 50% at 40°C	80% at 30°C, 50% at 40°C	Non condensing at ≤10°C 90% at 10 to30°C 75% at 30 to 40°C 45% at 40 to 50°C
Operating Altitude	0 to 2000 m	0 to 2000 m	0 to 2000 m	0 to 2000 m	0 to 2000 m
Pollution Degree	2	2	2	2	2
Storage Temperature	-4 to 140°F (-20°C to 60°C), < 80% RH	-4 to 140°F (-20°C to 60°C), < 80% RH	-4 to 140°F (-20°C to 60°C), < 80% RH	-4 to 140°F (-20°C to 60°C), < 80% RH	-4 to 140°F (-20°C to 60°C), < 80% RH
Temperature Coefficient	Nominal 0.15 x (specified accuracy)/ °C @ (0°C to 18°C or 28°C to 40°C)	Nominal 0.15 x (specified accuracy)/ °C @ (0°C to 18°C or 28°C to 40°C)	Nominal 0.15 x (specified accuracy)/ °C @ (0°C to 18°C or 28°C to 40°C)	Nominal 0.15 x (specified accuracy)/ °C @ (0°C to 18°C or 28°C to 40°C)	Nominal 0.10 x (specified accuracy)/ °C @ (0°C to 18°C or 28°C to 50°C)
Battery	Two AAA 1.5 V battery	Two AAA 1.5 V battery	Two AAA 1.5 V battery	Two AAA 1.5 V battery	Two AA 1.5 V battery
EMC	Meets EN 61326-1:2006	Meets EN 61326-1:2006	Meets EN 61326-1:2006	Meets EN 61326-1:2006	Meets EN 61326-1:2006
Safety Compliance	UL/IEC/EN 61010-1 ed. 3.0, IEC/EN 61010-2-033 ed. 1.0, CAN/CSA C22.2 NO. 61010-1 ed. 3.0, IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-031 ed. 1.1	UL/IEC/EN 61010-1 ed. 3.0, IEC/EN 61010-2-033 ed. 1.0, CAN/CSA C22.2 NO. 61010-1 ed. 3.0, IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-031 ed. 1.1	UL/IEC/EN 61010-1 ed. 3.0, IEC/EN 61010-2-033 ed. 1.0, CAN/CSA C22.2 NO. 61010-1 ed. 3.0, IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-031 ed. 1.1	UL/IEC/EN 61010-1 ed. 3.0, IEC/EN 61010-2-033 ed. 1.0, CAN/CSA C22.2 NO. 61010-1 ed. 3.0, IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-031 ed. 1.1	UL/IEC/EN 61010-1 ed. 3.0, IEC/EN 61010-2-033 ed. 1.0, CAN/CSA C22.2 NO. 61010-1 ed. 3.0, IEC/EN 61010-2-032 ed. 3.0 & IEC/EN 61010-031 ed. 1.1
Certification	UL (c/us) and CE	UL (c/us) and CE	UL (c/us) and CE	UL (c/us) and CE	UL (c/us) and CE
Dimensions (L x W x H):	8.62 x 3.03 x 1.46 in (219 x 77 x 37 mm)	8.82 x 3.03 x 1.46 in (224 x 77 x 37 mm)	8.62 x 3.03 x 1.46 in (219 x 77 x 37 mm)	8.82 x 3.03 x 1.46 in (224 x 77 x 37 mm)	10.16 x 3.70 x 1.73 in (258 x 94 x 44 mm)
Weight	208 g (0.46 lb)	254 g (0.56 lb)	208 g (0.46 lb)	254 g (0.56 lb)	420 g (0.93 lb)

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	600 A
Maximum Current DC	600 A
Maximum Voltage AC	600 V
Maximum Voltage DC	600 V
Maximum Conductor Size	1.37 IN
Resistance	Yes
Capacitance	Yes
In-Rush Current	Yes
Test Equipment General Attributes
Shipping Weight	1 LBS
HTS/Schedule B Number	9030.32.0000
ECCN Number	3A992
