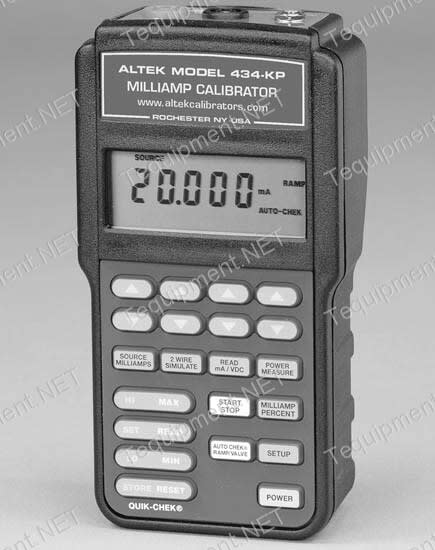

Calibrate and troubleshoot all the signals in a standard 4 to 20 milliamp process control loop with Altek?s Model 434-KP Milliamp Calibrator. A 24 mA Source, mA meter, 2-wire transmitter simulator and a DC volt meter in one compact unit enables a single tool to perform most calibration and troubleshooting functions.
Calibrate controllers, recorders or other devices in 4 to 20 or 0 to 20 mA loops. Six ?AA? batteries provide hours of continuous use. The batteries last several time longer than calibrators with a single 9V battery! Optional AC adapter for continuous use.
Check out the response of a loop by using the Model 434-KP in place of a 2-wire transmitter. The Model 434-KP modulates the current passing through the loop just like a transmitter, but with manual control.
Simultaneously supply power to a 2-wire transmitter while displaying the 4-20 mA output signal. The Model 434-KP supplies a nominal 24 Volts DC to the 2-wire transmitter while displaying the transmitter?s output.
Check 24 Volt loop supplies and batteries using the built-in voltmeter. Verify instruments with 1-5 Volt outputs.
Save time with every calibration by using the advanced features of the Model 434-KP. Instantly recall any three output settings with the handy QUIK-CHEK switch. All output settings are remembered, even with the power off.
Be in two places at once by using the Model 434-KP?s AUTO-CHEK. Connect behind the panel or replace a transmitter, then check the output in front of the panel or another remote location within the loop. Choose 2, 3, 5 or 10 output steps from 5 to 900 seconds to match your calibration setup. Use the automatic Ramp/Soak to simulate a running process and check valves for smooth operation.
Check valve and actuator operation with the built-in Valve-Chek function. Automatically step up & down to check valves at and around the fully closed position and the fully open position. Or manually step through the points and use the Up/Down push-buttons for fine adjustment.
