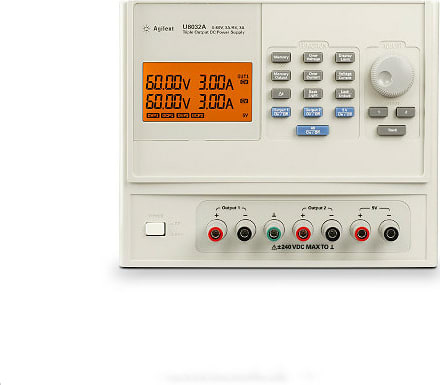

| Electrical Specifications |
| Voltage output (V) Output Channel 1 & 2 (@ 0 to 40 °C) |
0 to 60 V |
| Current output (A) Output Channel 1 & 2 (@ 0 to 40 °C) |
0 to 3 A |
| Number of outputs |
Three isolated outputs
Two variable: CV and CC operation
One fixed: CV operation only |
| 5 V fixed output 2 Output Channel 3 |
Voltage/Current output: 5 V, 3A
Output accuracy: ≤ 5% or (5 V ± 0.25 V)
Vrms: < 2 mVrms, or Vpp: < 50 mVpp
Load and line regulation: ≤ 5 mV
Overload condition: 3 A + 20% (typical) |
| Line & load regulation (for variable output) |
CV: < 0.01% + 2 mV
CC: < 0.02% + 2 mA |
Ripple & noise
Based on calculation at temp 18 - 28 °C and bandwidth at 20 Hz to 20 MHz |
CV: ≤1 mV rms , 0.5 mV rms (typical)
or ≤10 mV pp , 5 mV pp (typical)
CC: ≤ 1 mA |
| Load transient response time Within 15 mV from full load to half load and from half load to full load |
< 50 us |
| Stability (output drift) Following 30 minutes warm-up, change in output over 8 hour under constant load, line, and ambient temperature. |
Voltage: < 0.02%
Current: < 0.1% |
| Programming accuracy (23 °C ± 5 °C) |
CV: ≤ 0.25% + 15 mV
CC: ≤ 0.30% + 15 mA |
| Meter readback accuracy (23 °C ± 5 °C) |
CV: ≤ 0.25% + 10 mV
CC: ≤ 0.25% + 10 mA |
| Programming/meter resolution |
Voltage: 10 mV (4 digits)
Current: 10 mA (3 digits) |
| Maximum output float voltage |
±240 V |
| Physical characteristics |
| Display |
LCD with amber backlight |
| Rotary knob for reading adjustment |
Yes |
| Size |
4U, half rack |
| Dimensions (H x W x D) |
179.0 x 212.3 x 379.0 mm |
| Weight |
8.2 kg |
| Supplemental characteristics |
Temperature coefficient (for 12 months)
±(% of output + offset) |
Output
CV: (0.01% + 1 mV)/°C
CC: (0.01% + 1 mA)/°C
OVP, OCP
CV: < 0.05%/°C
CC: < 0.05%/°C |
Output voltage overshoot
During turn-on or turn-off of AC power, if output control is set less than 1 V |
< 1 V |
| Voltage programming speed to within 1 % of total excursion |
60 V |
Up Full load
No load
Down Full load
No load |
200 ms
100 ms
30 ms
300 ms |
| Over temperature protection |
Yes |
| Last memory setting enabled |
Yes |
| Three memory storage locations for voltage and current settings |
Yes |
| Erasing non-volatile memory |
Yes, erasable through front panel |
| Rack mount capability |
Yes, front panel and rear have rack-mountable support |
| AC power input specifications |
| Input power option (selectable) |
100 V ac ± 10%, 47 to 63 Hz
115 V ac ± 10%, 47 to 63 Hz
230 V ac ± 10%, 47 to 63 Hz |
| Maximum input power |
600 VA |
| Fuse |
External, located at the rear panel |
| Environmental specifications |
| Operating temperature |
0 to 40 °C |
| Storage temperature |
–40 to 70 °C |
| Humidity |
15% RH (relative humidity) to 85% RH at 40 °C (non condensing) |
| Altitude |
Up to 2000 m |
| Fan acoustic noise |
No load: follow Agilent Class CO, 45 dB sound pressure and 50 dB sound power
Full load: follow Agilent Class GP, 55 dB sound pressure and 60 dB sound power |
| Environment of use |
Installation category II
Pollution Degree 2 |
| Connection specifications |
| Output connections |
+Out, –Out, and chassis ground on the front panel.
(Either positive or negative output terminal may be grounded or can be
operated floating at up to a maximum of 240 V off ground. Total output
voltage to ground must not exceed 240 V dc ) |
| Binding posts |
Output binding post located horizontally and side by side |
| I/O connections |
N/A |
| AC input |
3 pins standard IEC AC power connector with fuse and line selection at the rear |
| Protection features |
| Overvoltage protection programmable range |
0.1 to 66.0 V |
| Overcurrent protection programmable range |
0.1 to 3.3 A |
