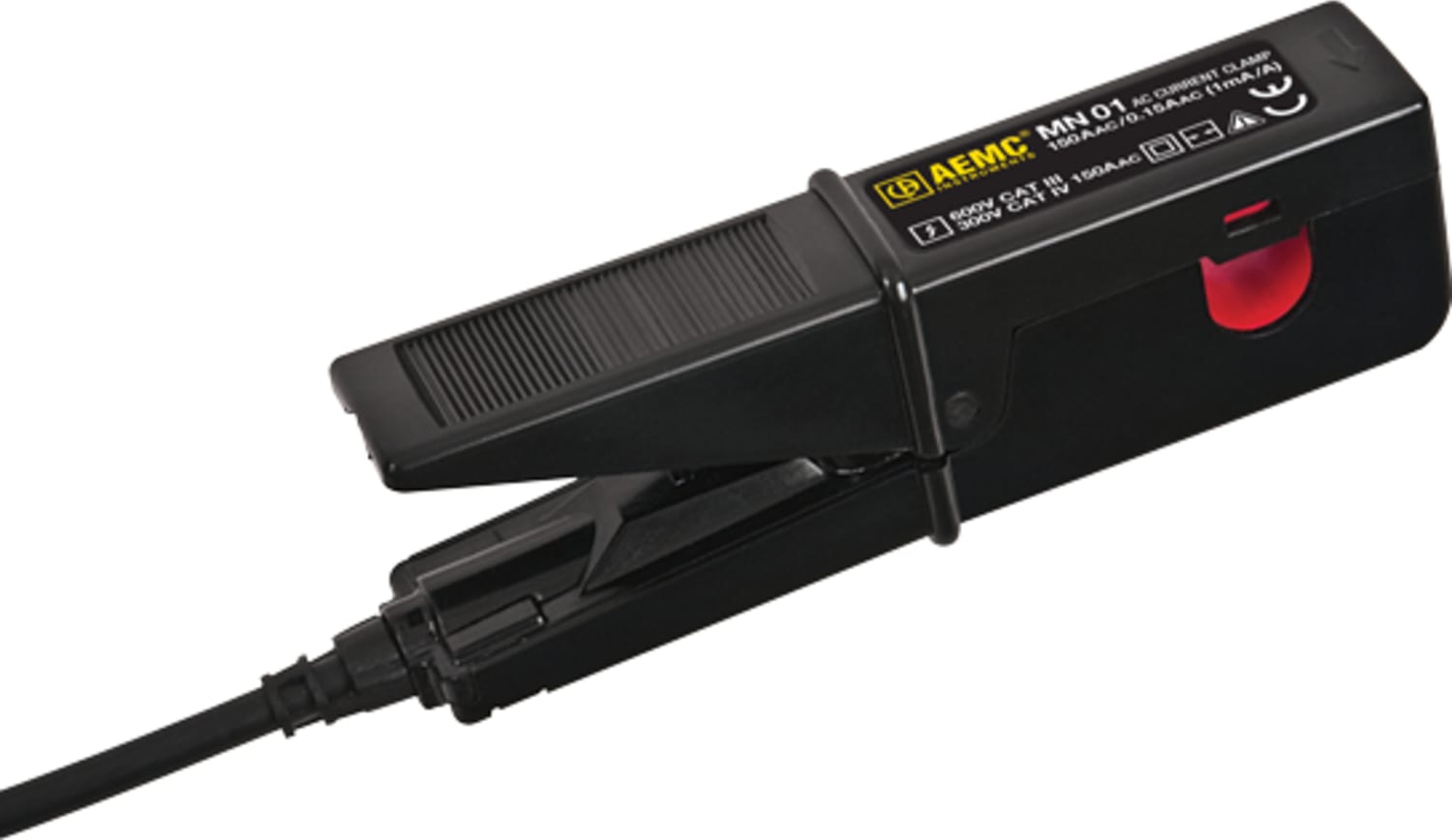

AEMC MN01 - AC Current Probe (150AAC/0.15AAC (1mA/A), Lead)

Name: AEMC MN01 - AC Current Probe (150AAC/0.15AAC (1mA/A), Lead)
Brand: AEMC Instruments
SKU: AEMCMN01
Price: 86.45 USD
Availability: InStock

0 reviews | Catalog: 2129.17 | UPC: 685338030389 | Model: AEMC Instruments MN01

Compare

AC Current Probe Model MN01 (150AAC/0.15AAC (1mA/A), Lead)

Small, compact size
Measurement range of 2 to 150AAC
Jaw opening accommodates conductors up to 0.39in diameter
Designed for DMMs, loggers, recorders and oscilloscopes
40Hz to 10kHz response
1mAAC/AAC output signals
Designed to EN 61010, 600V CAT III safety standard

View Product Details

List Price: $91.00

Your Price: $86.45

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series


Product	AEMC Instruments MN01 AC Current Probe Model MN01 (150AAC/0.15AAC (1mA/A), Lead)	AEMC Instruments MN05 AC Current Probe Model MN05 (100AAC/0.1VAC (1mV/A), 10AAC/10VAC (1V/ ...	AEMC Instruments MN02 AC Current Probe Model MN02 (100AAC/0.10AAC (1mA/A), Lead, 1% Accura ...	AEMC Instruments MN185 AC Current Probe Model MN185 (Jack - 1mA/A - 100A max)	AEMC Instruments MN106 AC Current Probe Model MN106 (Lead - 1mA/A - 150A max)	AEMC Instruments MN114 AC Current Probe Model MN114 (Lead - 100mV/A - 10A max)	AEMC Instruments MN103 AC Current Probe Model MN103 (Lead - 1mV/mA - 10A max & 1mV/A - 100 ...
Price
In Stock
Type (Current Clamp Adaptors	CT	CT	CT	CT	CT	CT	CT
Maximum Current AC	150 A	100 A	100 A	120 A	150 A	10 A	100 A
Maximum Conductor Size	0.39 IN	0.39 IN	0.39 IN	0.47 IN	0.47 IN	0.47 IN	0.47 IN
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

AEMC Instruments MN01 Accessories

Choose a Category

for the AEMC Instruments MN01

AEMC Instruments 2140.53 Clip Safety Alligator - Black {Rated 1000V CAT IV, 15A, UL}

Catalog: 2140.53

(0)

In Stock!

Add to Cart

AEMC Instruments 2140.55 Clip Safety Alligator - White {Rated 1000V CAT IV, 15A, UL}

Catalog: 2140.55

(0)

In Stock!

Add to Cart

AEMC Instruments 5100.04 Clip - Safety alligator - blue (1000V CAT IV, 15A, UL V2)

Catalog: 5100.04

(0)

In Stock!

Add to Cart

AEMC Instruments 2118.46 Female Banana Jack to Male BNC Adapter (XM-BB)

Catalog: 2118.46

(0)

In Stock!

Add to Cart

AEMC Instruments 2119.94 Adapter - BNC (Female) to 4mm Banana (Male) 600V CAT III...

Catalog: 2119.94

(0)

In Stock!

Add to Cart

AEMC Instruments 1017.45 Adapter 4mm Non-insulated for Safety Leads

Catalog: 1017.45

(0)

In Stock!

Add to Cart

Fluke TL221 Fluke TL221 SureGrip Test Lead 1.5m Extension Kit (Red and Black)

Catalog: 2003602

(4)

In Stock!

Add to Cart

AEMC Instruments 2118.09 General Carrying Case (13x9.5x3 inch)

Catalog: 2118.09

(1)

In Stock!

Add to Cart

AEMC Instruments 2133.72 Small Classic Tool Bag (13x9.8x9.5 inch)

Catalog: 2133.72

(1)

In Stock!

Add to Cart

AEMC Instruments 2133.73 Bag Extra Large Classic Tool Bag (18x9x12 inch ) (Replacement...

Catalog: 2133.73

(0)

In Stock!

Add to Cart

HT Instruments LineSplitter Conductor Splitter Without Cable Stripping

Catalog: LineSplitter

(11)

In Stock!

Add to Cart

AEMC MN01

Small, compact size
Measurement range of 2 to 150AAC
Jaw opening accommodates conductors up to 0.39" diameter
Designed for DMMs, loggers, recorders and oscilloscopes
40Hz to 10kHz response

AC Current Probe (150AAC/0.15AAC (1mA/A), Lead)

Small and compact, the AC Current Probe Model MN01 is the ideal complement for any multimeter to measure AC currents in low-power secondary or industrial applications.

If there is a current in the conductor clamped, the Model MN01 is protected against overvoltages during disconnection from the measurement instrument.

Applications:

Measuring in breaker panels
Industrial loads
HVAC
Residential and commercial sites
Data logging/recording

ELECTRICAL
Range	150A
Measurement Range	2A to 150A
Accuracy in %	≤ 2.5% + 0.15A (1Ω load) ≤ 3% + 0.15A (10Ω load)
Phase Shift	Not specified
Output Signal	1mAac/Aac (1000/1) (150mA at 150A)
Load Impedance	≤10Ω
Maximum Currents	1 < 150A permanent from 48Hz to 500Hz
Influence of Temperature	≤ 0.2% per 10K
Influence of Adjacent Conductor	≤ 2mA/A at 50Hz
Influence of Adjacent Conductor Position in Jaws	≤ 0.1% at 50/60Hz
Influence of Frequency	≤ 2% from 65Hz to 500Hz
Maximum Output Voltage (secondary open)	30V
MECHANICAL
Operating Temperature	14° to 122°F (-10° to +50°C)
Storage Temperature	-40° to 176°F (-40° to 80°C)
Operating Relative Humidity	0 to 85% RH decreasing linearly above 35°C
Operating Altitude	0 to 2000m
Casing Protection Rating (leak-proofing)	IP40(2) (EN 60529 Ed. 1995)
Fall Height	4.92 ft (1.5m) (IEC 68-2-32)
Shock Protection	3.52 oz (100g)/6ms/half-period (IEC 68-2-27)
Self-extinguishing Capability	casing UL94 V2
Vibration Resistance	IEC 68-2-6
Dimensions	4.43 x 1.48 x 1.02" (112.5 x 37.5 x 26mm)
Weight	approx. 6.35 oz (180g)
SAFETY
Electrical	EN 61010-1, 600V CAT III, Pollution Degree 2
Double Insulation	Yes
CE Mark	Yes

Clamp Meters/Current Clamp Adaptors / Current Clamps Template
Type (Current Clamp Adaptors	CT
Maximum Current AC	150 A
Maximum Conductor Size	0.39 IN
Test Equipment General Attributes
Warranty	12 MONTHS (1 YEARS)
IP Rating	IP40
Product Weight	0.41 LBS
Shipping Weight	6.00 LBS
Data Logging	No
HTS/Schedule B Number	9030908060
ECCN Number	EAR99
Calibration Included	Factory Calibration
Country of Origin	China
UPC	685338030389
