| Operating Range |
| Current Range |
100mA to 30AAC / 1 to 300AAC continuous cycle / 1 to 2000AAC, (2800A if temperature < 35°C or 95°F) |
| Frequency Range |
30Hz to 5kHz; current derating above 200Hz on the 3000A range |
| Common Mode Voltage |
600VAC |
| Current Overload |
3 outputs |
| DI/DT |
DI/DT |
| Range Value |
100mVAC/AAC, 10mVAC/AAC , 1mVAC/AAC |
| dV/DT |
400µV/ms, 50µV/ms, 5µV/ms |
| Load Impedance |
> 100kW |
| Open Secondary Voltage |
10V max |
| Probe Impedance |
| Range Value |
30A / 300A / 3000A |
| Probe Impedance |
1000W / 100W / 10W |
| Reference Conditions |
23°C ±3°K, 20 to 85% RH, 48 to 65Hz, external magnetic field <40A/m, no DC component, no external current carrying conductor, test sample centered, load impedance 1MW |
| Amperes |
| Ampere Second Product |
100A.s |
| Working Voltage |
600VAC |
| Influence of Adjacent Conductor |
| Influence of Adjacent Conductor |
< 5A / AAC |
| Influence of Conductor Position |
| Influence of Conductor Position |
1.5% of Reading @ 50/60Hz |
| Influence of Frequency |
| Range Value |
30Hz to 5kHz |
| Influence of Frequency |
± 6% on all ranges |
| Output Signal |
| Range Value |
100mA to 30AAC continuous cycle / 1 to 300AAC continuous cycle / 1 to 2000AAC continuous cycle for the full temperature range (2800A if temperature < 35°C or 95°F) |
| Output Signal |
100 mVAC / AAC (3V at 30A) 90A peak, 10mVAC / AAC (3V at 300A 900A peak), 1mVAC / AAC (3V at 3000A) 9000A peak |
| Accuracy |
| Range |
30A / 300A / 3000A |
| Current Range |
100mA to 30A AC continuous cycle, 1 to 300A AC continuous cycle, 1 to 2000A AC continuous cycle for the full temperature range (2800A if temperature < 35°C or 95°F) |
| Accuracy |
Per IEC 185-26-27 |
| Mechanical Specifications |
| Colors |

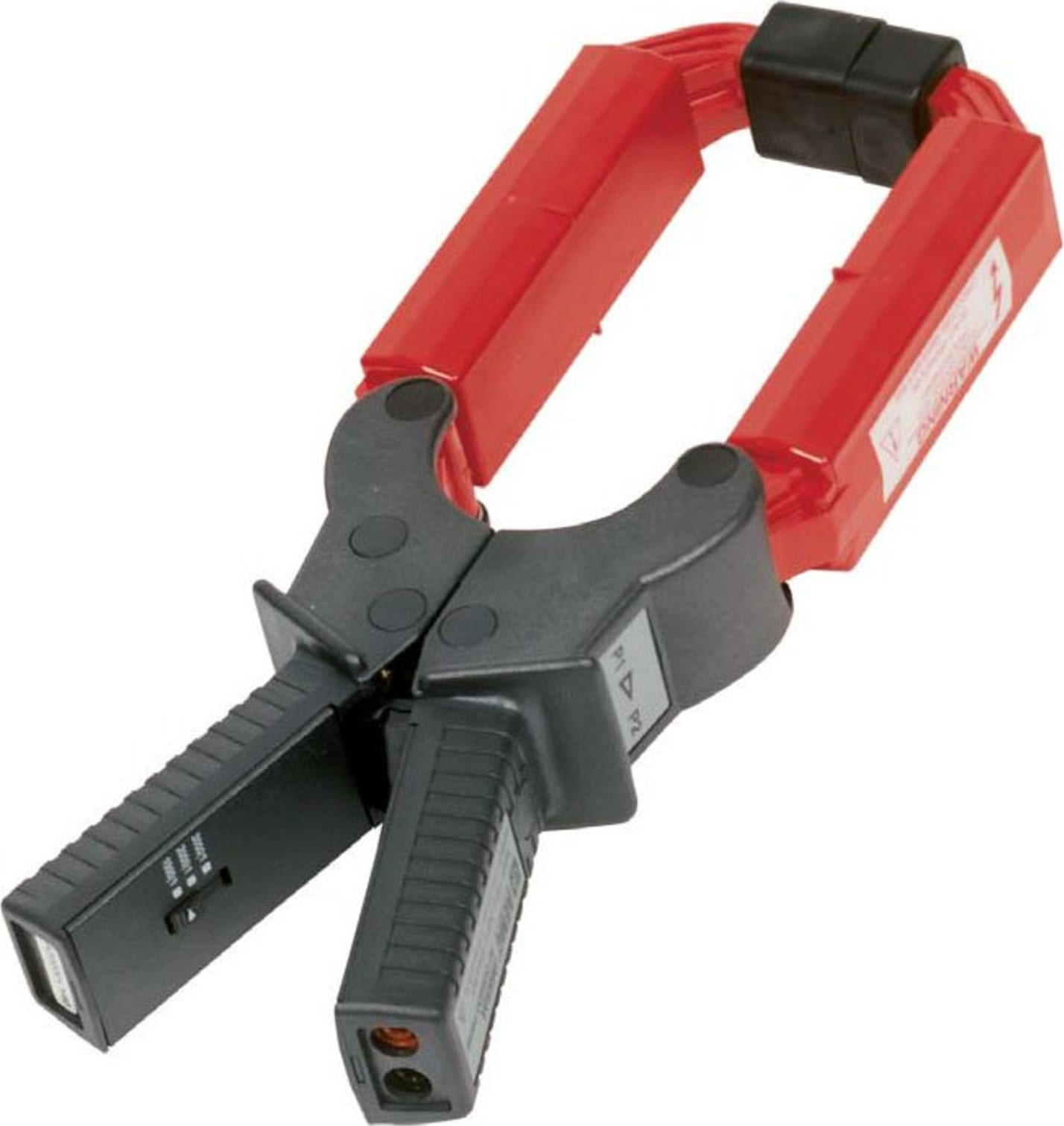

Dark gray handles with red jaws |
| Dimensions |
4.72 x 12.40 x 1.89" (120 x 315 x 48mm) |
| Drop Test |
500mm (IEC 68-2-32) |
| Jaw Opening |
3.54" (90mm) |
| Material |
Handles: 10% Fiberglass charged polycarbonate UL 94 V0; Jaws: ABS UL 94 V2 |
| Maximum Bus Bar Size |
1.97 x 5.31" (50 x 135mm), 2.52 x 3.94" (64 x 100mm) |
| Maximum Cable Diameter |
2.52" & Oslash; max. 64mm |
| Mechanical Shock |
100g (IEC 68-2-27) |
| Operating Temperature |
14° to 122°F (-10° to 50°C) |
| Output |
Two standard safety banana jacks (4mm) |
| Protection Index (IP) |
IP 20 (IEC 529) |
| Storage Temperature |
-13° to 176°F (-25° to 80°C) |
| Vibration |
Test per IEC 68-2-6 |
| Weight |
2.65 lbs (1200g) |
| External Influences |
| Influence of Temperature |
<0.1% per 10K° |
| Safety Reference Specifications |
| Safety Ratings |
EN 61010-2-32 |
| Agency Approvals |
CE Mark |
