0 reviews | Catalog: 2134.62 | UPC: 685338140514 | Model: AEMC Instruments DL-1081

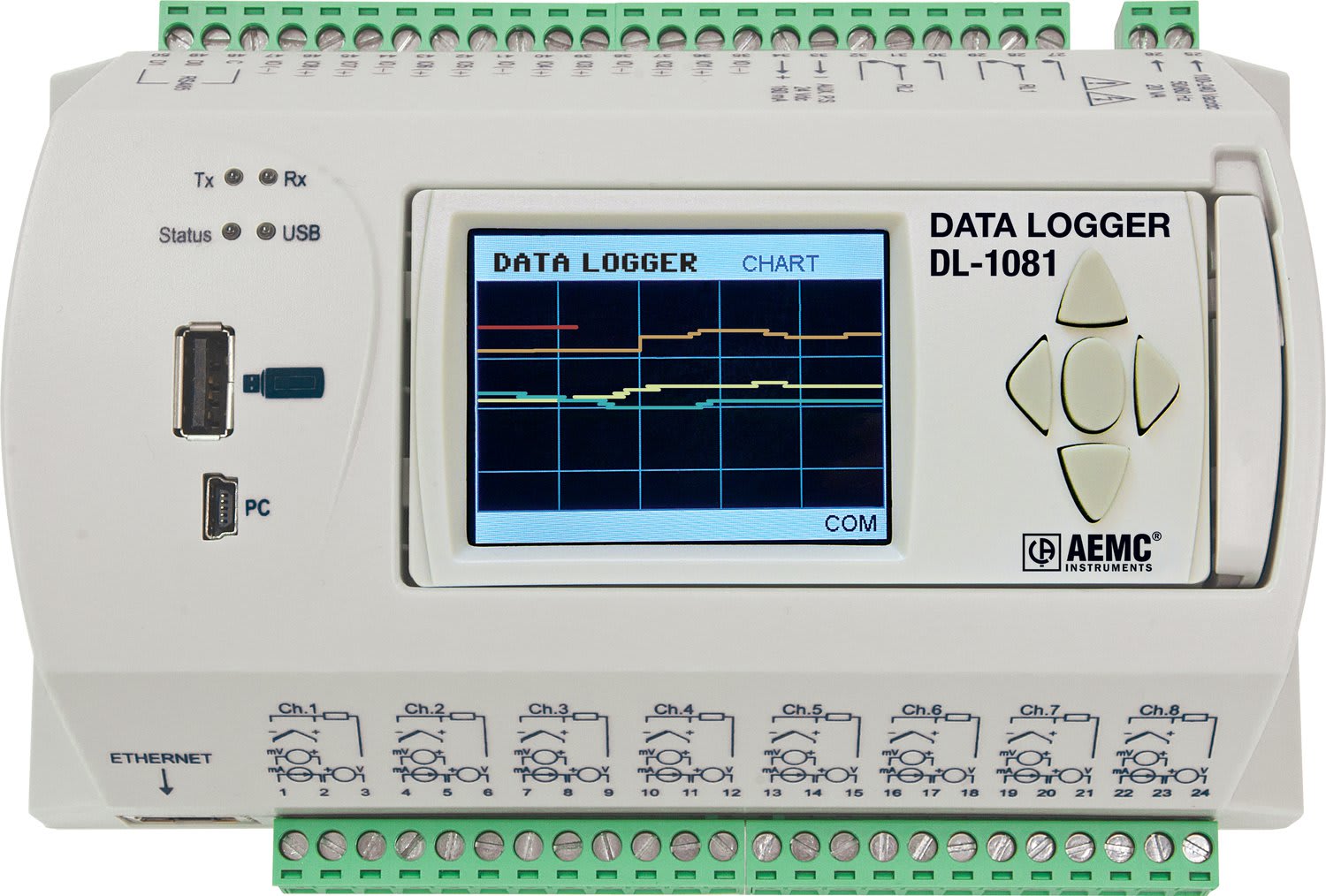

Data Logger Model DL-1081 (8 Analog to 8 Digital Channel, Display)
List Price: $1,849.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
(1)
Applications
Versatile, powerful and cost effective data loggers handling analog, digital and other types of variables with high resolution and speed The 8-Channel Data Logger Model DL-1081 (with display) is a versatile, powerful and cost effective data logger handling analog, digital and other types of variables with high resolution and speed. It offers high performance and is easy to configure and operate. The Model DL-1081 has 8 configurable analog inputs that can measure thermocouples, Pt100, Pt1000, DC voltage and DC current signals. It is equipped with 2 relay outputs and 8 digital ports that are individually configurable as inputs or outputs. Up to 128 math channels can be used to perform operations on the measured values. Up to 32 alarm events can be detected, allowing output activations, e-mails and SNMP trap sending. The RS485 interface can operate as a Modbus RTU master or slave. As a master, it can read and log up to 64 external channels. A 10/100Mbps Ethernet interface allows access through a browser (HTTP), FTP (client and server), e-mails sending (SMTP), SNMP and Modbus TCP. The Model DL-1081 has a mini USB interface for connecting to a computer for configuration, monitoring and data download and another USB port for plugging in a flash drive for data retrieval. The 512k internal basic memory is used to store data and can be greatly expanded with an SD card up to 16GB. The Model DL-1081 incorporates a color display that can be attached or remotely installed for local indication or configuration. A user friendly configuration software program is included and can be accessed by Ethernet, USB or RS485 and also provides means for online monitoring, logged data downloading, printing and exporting to spread sheets and other formats.
Shows a six-position grid where you can assign a channel to be displayed real-time in each position.
Displays a plot of the favorite channels values.
Shows a list of all enabled channels (analog, digital, remote and virtual).
A 32-position grid where each numbered position is related to its equivalent alarm or event. When an alarm is active, its number will be displayed in red on this screen.
Shows a list of information about the data logger and the display itself.
Data logger and display parameters can be changed and viewed on this screen.
