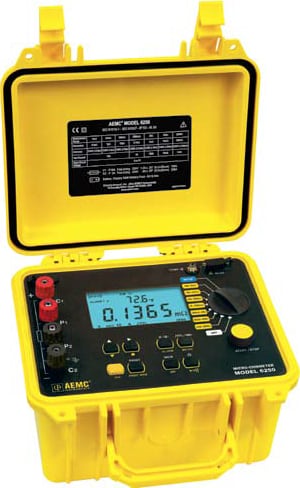

| AEMC 2129.81-Refurb Specifications |
| Electrical Specifications |
| Range |
5.000mΩ / 25.000mΩ / 250.00mΩ / 2500.0mΩ / 25.000Ω / 250.00Ω / 2500.0Ω |
| Accuracy |
0.05% + 0.5μΩ / 0.05% + 3μΩ / 0.05% + 30μΩ / 0.05% + 0.3mΩ / 0.05% + 3mΩ / 0.05% + 30mΩ / 0.05% + 300mΩ |
| Resolution |
0.1μΩ / 1μΩ / 10μΩ / 0.1mΩ / 1mΩ / 10mΩ / 100mΩ |
| Test Current |
10A / 10A / 10A / 1A / 100mA / 10mA / 1mA |
| Measurement Mode |
Selectable: Inductive (continuous test), Resistive (instantaneous test), Auto (multiple tests) |
| Metal Type |
Selectable: Copper, Aluminum, or Other metal. Programmable from 000.00 to 99.99 |
| Temperature Correction |
Manual or automatic with 0.1° resolution. Programmable from 32° to 130°F or -10° to 130°C |
| Temperature Probe |
100Ω platinum RTD, 0.1°F Resolution, ±0.9°F Accuracy |
| Alarms |
Two - programmable setpoints from 0.0 to 2500.0Ω |
| Buzzer |
Programmable on/off and volume level |
| Power Source |
Rechargeable 6V, 8.5 Ah NiMH batteries |
| Battery Life |
Approx. 5000 10A tests |
| Battery Charging |
120/240Vac ± 20% line voltage |
| Power Management |
Display powers down after 1, 5, or 10 minutes of inactivity |
| Memory |
Stores up to 1500 test results |
| Mechanical Specifications |
| Dimensions |
10.63 x 9.84 x 7.09" |
| Weight |
8.1 lbs (3.69kg) |
| Display Specification |
| Display Type |
Large 50,000-count digital |
| Size |
4 x 2.25" (102 x 57mm) |
| Backlight |
Blue electroluminescent |
| Color |
Safety yellow case; grey faceplate |
| Communications Specifications |
| Interface Port |
PC, remote terminal, printer, or trigger test from remote contact closure |
| Environmental Specifications |
| Operating Temperature |
14° to 132°F(-10° to 55°C) 80% RH (non-condensing) |
| Storage Temperature |
-40° to 140°F(-40° to 60°C) |
| Safety Specifications |
| Safety Rating |
EN 61010-1, 60V Cat. II |
| Double Insulation |
Yes |
| CE Mark |
Yes |
