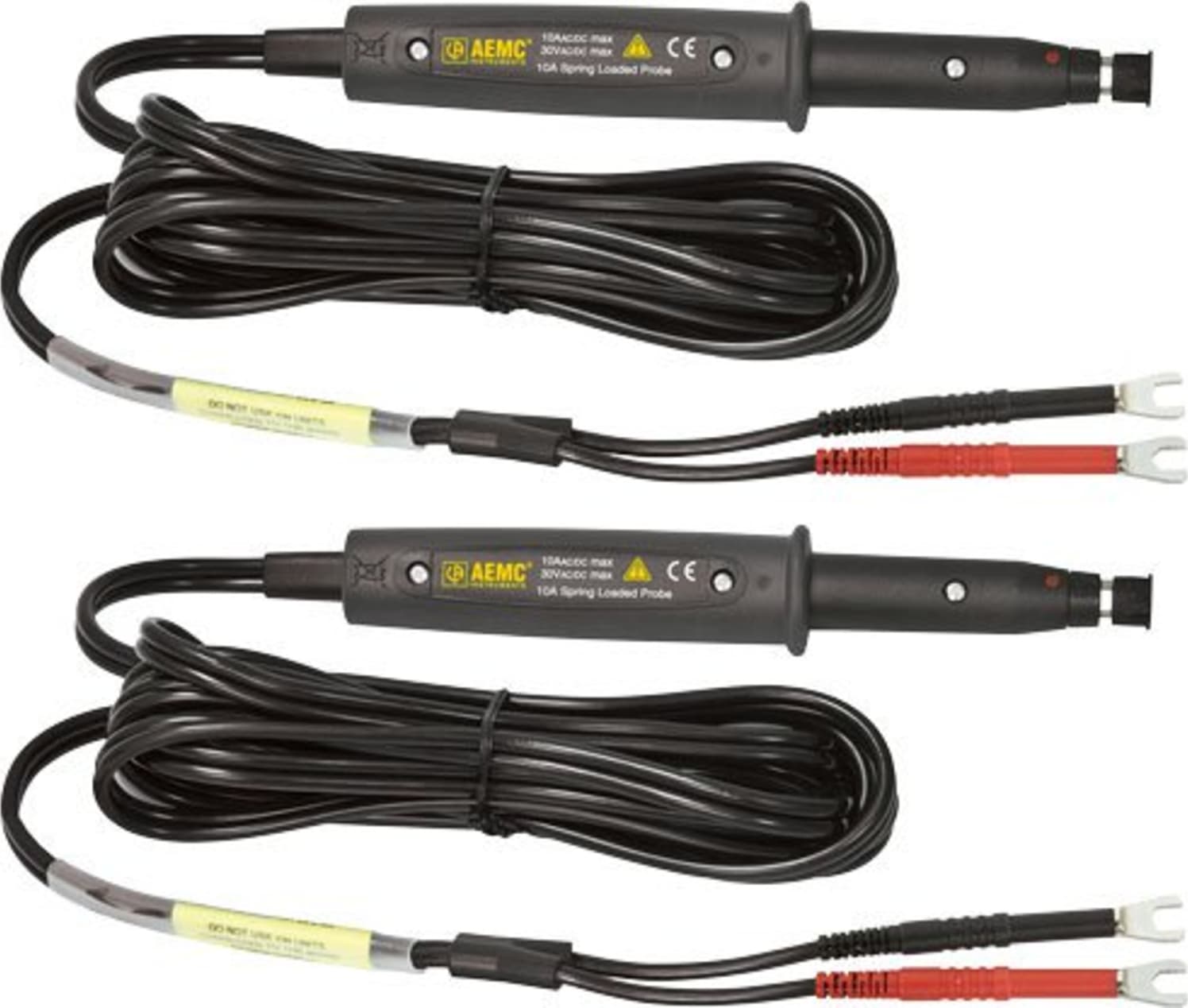

AEMC 2118.77 - Kelvin Probes 10ft (10A, Spring Loaded)

Name: AEMC 2118.77 - Kelvin Probes 10ft (10A, Spring Loaded)
Brand: AEMC Instruments
SKU: AEMC2118.77
Price: 636.50 USD
Availability: InStock

0 reviews | Catalog: 2118.77 | UPC: 685338019810 | Model: AEMC Instruments 2118.77

Compare

Kelvin Probes 10 ft (10A, Spring Loaded)

Kelvin Probes
10 ft
10A, Spring Loaded
Probe tip spacing; 3.5mm for pistol grip, 8mm for pencil point
Compatible with all Micro-Ohmmeters with banana jack or binding post inputs
Safety guard helps prevent hands from slipping into measurement area

View Product Details

List Price: $670.00

Your Price: $636.50

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	AEMC Instruments 2118.77 Kelvin Probes 10 ft (10A, Spring Loaded)	AEMC Instruments 2118.78 Kelvin Probes 20 ft (10A, Spring Loaded)
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

AEMC Instruments 2118.77 Accessories

Choose a Category

Adapter Kits

for the AEMC Instruments 2118.77

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

AEMC 2118.77

10A rated
30VAC/DC
Probe tip spacing; 3.5mm for pistol grip, 8mm for pencil point
Compatible with all Micro-Ohmmeters with banana jack or binding post inputs
Safety guard helps prevent hands from slipping into measurement area

Kelvin Probes 10ft (10A, Spring Loaded)

These probes can be used with any micro-ohmmeter that has binding posts from 4mm to 6mm in diameter or safety terminals 4mm in diameter.

Applications:

Resistance measurements on armatures and small transformers
Component measurement
Electrical cable resistance measurement
Mechanical bond tests
Wire to terminal connections
Aircraft and rail bonds

AEMC 2118.77 Specifications
ENVIRONMENTAL CONDITIONS
Indoor Use. Operating Range: Storage Range: Degree of Pollution: Altitude:	-10 °C to +55 °C and 10 % to 85% RH -40 °C to +70 °C and 10 % to 90% RH 2 < 3000m
MECHANICAL SPECIFICATIONS
Pistol-grip Kelvin Probe Dimensions Grip: Probe: Thickness:	108 x 40mm 154 x 30mm 28mm
Diameter of the Probes	2mm
Center-to-center Distance Between the Probes	3.5mm
Travel of the Probes	7mm
Lead	3.15m long
Spaded Lugs	For diameters from 4mm to 6mm
Safety Terminals	Diameter of 4mm
Mass	Approximately 2 x 420g
Resistance	Approximately 2 x 40mΩ
Straight Kelvin Probe with Rotation
Dimensions (L x W x H)	207 x 34 x 30mm
Diameter of the Probes	3mm
Center-to-center Distance Between the Probes	8mm
Travel of the Probes	10mm
Lead	3.15m long
Spade Lugs	For diameters from 4 to 6mm
Safety Terminals	Diameter of 4mm
Mass	Approximately 2 x 400g
Resistance	Approximately 2 x 35mΩ
