• 24" flexible sensor fits around conductors up to 7.6" in diameter
• Dual measurement ranges of 300A and 3000AAC
• Read amperage directly on DMM display
• mV output directly proportional to the AC current measured
• Output is 10mV/A on 300A range and 1mV/A on 3000A range

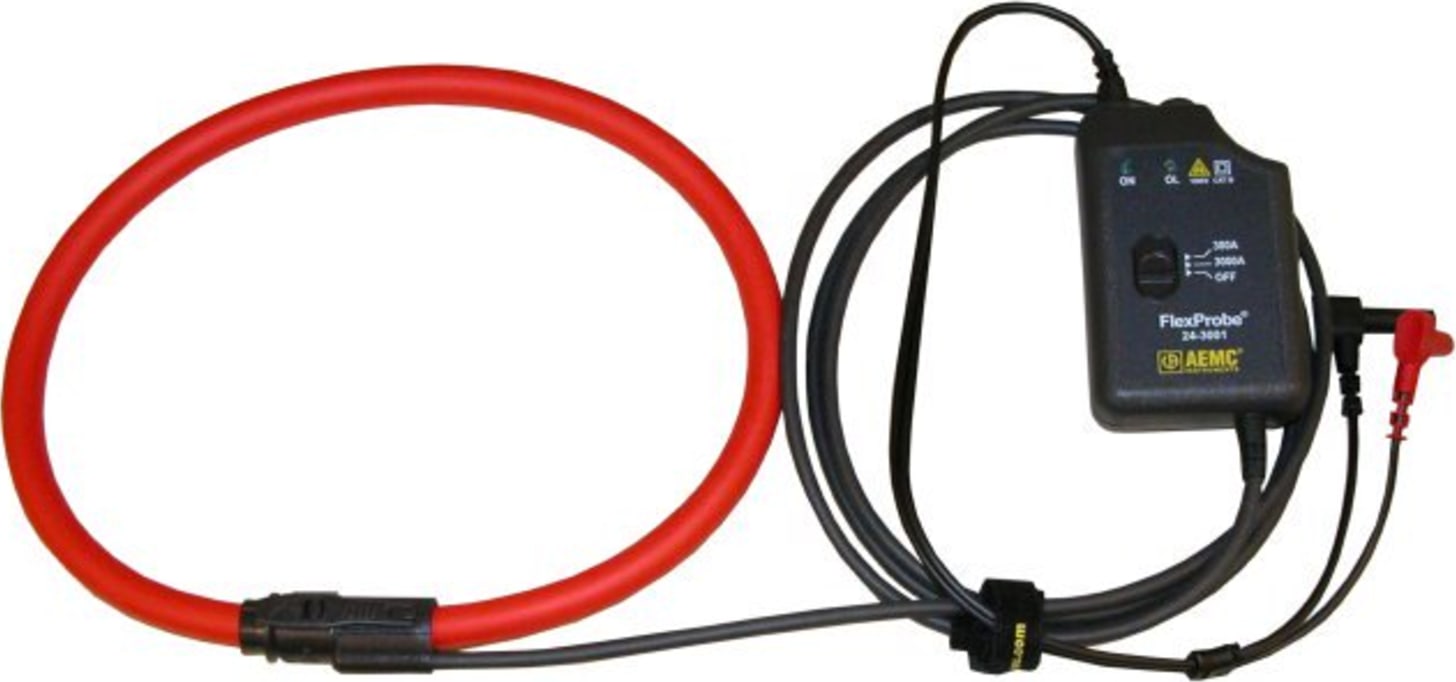

The FlexProbe Model 24-3001 is a low-cost AC current measurement probe designed to plug into digital multimeters, oscilloscopes, and power recorders. The Model 24-3001 is composed of a flexible sensor and an electronic module with a 14" double insulated cable. The flexible sensor is designed to fit around large or small conductors and is capable of getting into tight or difficult spaces. It is ideal for measuring AC current in a group of conductors.

The FlexProbe Models 24-3001 and 24-3002 are low-cost AC current measurement probes designed to plug into digital multimeters, oscilloscopes, and power recorders. The Model 24-3001 is composed of a flexible sensor and an electronic module with a 14" double insulated cable, while the Model 24-3002 has a flexible sensor and an electronic module with 4mm safety banana plugs with 3/4" spacing. The flexible sensors are designed to fit around large or small conductors and are capable of getting into tight or difficult places. They are ideal for measuring AC current in a group of conductors.

Applications

• Motor testing and troubleshooting
• Load monitoring
• HVAC troubleshooting
• Power analysis
• Transformer testing
• Substation testing
