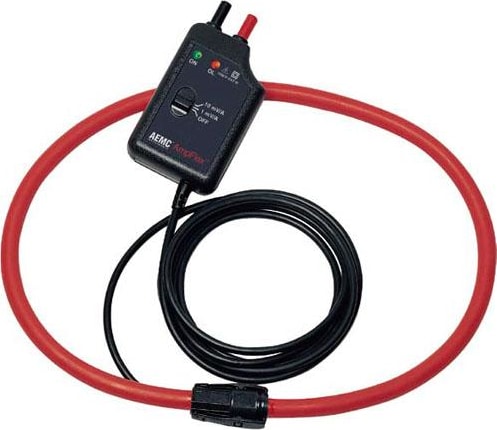

| AEMC 3000-36-2-1-B Specifications |
| Electrical Specifications |
| Measurement Range |
5 to 3000A |
| Output Signal |
10mV/A & 1mV/A |
| Accuracy |
1% of Reading |
| Crest Factor |
3 |
| Phase Shift @ 50/60Hz |
0.7° |
| Frequency Range |
10 to 20,000Hz (intentionally limited for optimum performance) |
| Residual Noise |
500mA |
| Working Voltage |
1000Vrms max. |
| Influence of Frequency |
Add 1% to the reference |
| Influence of Adjacent Conductor |
<2% |
| Influence of Conductor Position in Jaw |
<4% |
| Mechanical Specifications |
| Output |
Two 4mm safety banana jacks, standard 3/4" (19mm) spacing |
| Battery |
9V Alkaline |
| Low Battery |
Green LED Off when ³ 7V |
| Overload Indication |
Red LED indicates input greater than the selected range |
| Battery Life |
150 hours typical (continuous use) |
| Sensor Dimensions |
36" |
| Electronic Module Dimensions |
4.9 x 2.5 x 1.1" (124 x 64 x 28mm) |
| Cable Length |
6.5ft (2m) |
| Drop Test |
1.0m on 38mm of oak or concrete. Test according to IEC1010 |
| Vibration |
Test per IEC 68-2-6, Frequency Range: 10Hz to 55Hz, Amplitude: 0.15mm |
| Mechanical Shock |
100G, Test per IEC 68-2-32 |
| Environmental Specification |
| Case Protection |
Sensor: IP65 per IEC529; Electronic Module: IP40 |
| Operating Temperature |
14 to 131°F (-10°C to +55°C) |
| Storage Temperature |
-40 to 158°F (40°C to +70°C) |
| Influence of Temperature |
Sensor: -10°C to 100°C: <0.5% per 10°C; Module: -10°C to 55°C: <0.5% per 10°C |
| Operative Relative Humidity |
10 - 30°C 85 ±5% RH without condensation; 40 - 50°C 45 ±5% RH (without condensation) |
| Altitude |
Operating: 0 to 2000m; non-operating: 0 to 12000m |
| Safety Reference Specifications |
| Safety Ratings |
EN 61010, 1000V, Cat. III, Pollution Degree 2 |
| Agency Approvals |
CE Mark |
