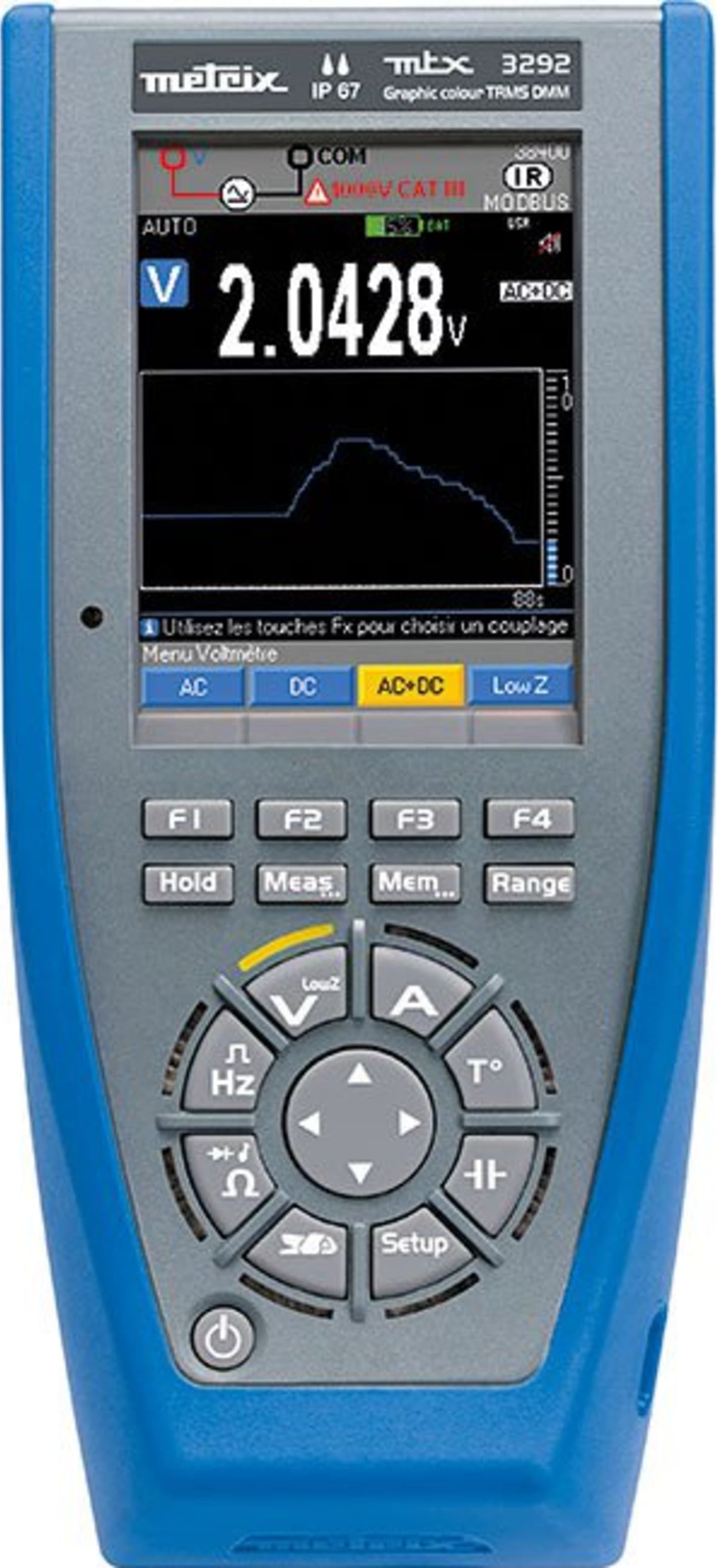

Digital Multi Meter (ASYC IV, TRMS, 100,000-cts, USB, Color Graphical Display)
The Model 3293 is a portable multimeter with a graphical color display allowing direct measurement of the main electrical quantities and shows the trends instantaneously. Its innovative design makes them compact, rugged, comfortable to grip and leakproof to IP67 standard. These dynamic loggers can record many different quantities. Advanced measurement functions include Duty Cycle, Pulse Counting, Math function and monitoring of Min/Max/Avg/Peaks enables you to observe many various aspects of electrical quantities.
Ergonomics and Strengths
Deal for both portable and benchtop use, the ASYC IV multimeters are simple and intuitive to use. Accessible directly, the different measurements are indicated explicitly by pictograms on the electronic switch. The display can be used to view the measurement results either as numeric values or as graphs showing the trend over time. Recorded measurements can be displayed as a trace, with the possibility of positioning cursors and zooming on part of the recorded curve.
Help in French and English is integrated into the instrument and provides information about the measurements in progress. USB communication is provided for transferring data to a PC, for recording and for programming with the LV/LW drivers. The instrument’s firmware can be upgraded by connecting to a PC and then accessing the website.
- The ASYC IV models can be powered by normal batteries, rechargeable batteries or the mains supply.
- The battery-powered ASYC IV models offer a battery life of up to 400 hrs for easier use in the field.
- To optimize the ASYC IV’s consumption, the standby mode can be activated and the internal accelerometer allows you to wake up the instrument simply by touching its keyboard.
Features
- Clamp function for direct current readings
- Frequency measurement to 5MHz
- Temperature with optional K-Type/PT100/PT1000 sensors
- Audible continuity
- Duty Cycle / Pulse Width measurements
- Min/Max/Avg/Peak with time stamps
- Hold / Auto-Hold functions
- Relative measurements (REL)
- Math function
- Recording memory for 6500 measurements
- Interactive Zoom function
- USB Optical Connector with SX-DMM Software
- Bluetooth Communication (optional)
- IP67 rated
- 1000V CAT III / 600V CAT IV
- 3 Year Warranty
