Weller Pre-Heater
Pre-Heaters provide fast, efficient underside heating and reduce the possibility of thermal damage to sensitive components. They make soldering and desoldering easier by reducing the heat requirement of the soldering tool. This reduces the risk of thermal damage. They are used in a variety of applications such as circuit board repair and rework of digital cameras, cell phones, and other electronic devices. Pre-heaters are available in a variety of sizes and styles to meet a range of needs.
Pre-Heater Applications
-
Preheat the circuit board under repair
-
Reduce the possibility of thermal damage
-
Reduce the heat requirement from the soldering tool
-
Make soldering and desoldering easier
-
Soldering Pb-free assemblies
-
Rework of digital cameras, cell phones, PDAs, and MP3 players
-
Reduce thermal shock to the board and components
-
Reduce the chance of board warping
Types of Pre-Heaters
-

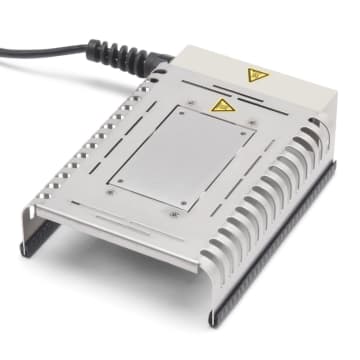

Heating Plate
-
Bench top Board Heater
This video demonstrates the Hakko FR-1012 Pre-heater. It is a bench-top board heater designed to elevate the temperature of printed circuit board assemblies so that the components on them can be soldered and de-soldered more easily, and with improved results. This is particularly useful on medium to high-mass board assemblies, which can "heat-sink" a significant amount of energy being supplied by a soldering iron tip or handheld hot-air tool. This tool is particularly useful when soldering Pb-free assemblies.
Key Features of Pre-Heaters to Consider
-
Comes complete with a PCB holder - no extra accessories needed
-
Equipped with infrared heater for fast and accurate heat up
-
Auto-Off and Standby features
-
Read and set temperatures are indicated digitally
-
Temperature can be regulated with the use of an optional external sensor
-
Integrated self-resetting overheat protection
-
High pressure fan
-
Convex outlet reduces heat buildup and prevents blockage of the outlet
-
Angled heater tube protects the heating element from damage caused by debris
-
Optional Extension Pipe
-
ESD-safe by design
-
Compatible with lead free solders
