• For shaft diameters measuring from 10-30mm (0.4–1.2in)
• Impact rings are made of high-strength modified resin
• Complete set of different-sized puller arms and spindles
• A flexible locking ring makes the assembly of the puller arms with the spindle simple
• The compact toolset includes a selection table in a handy case

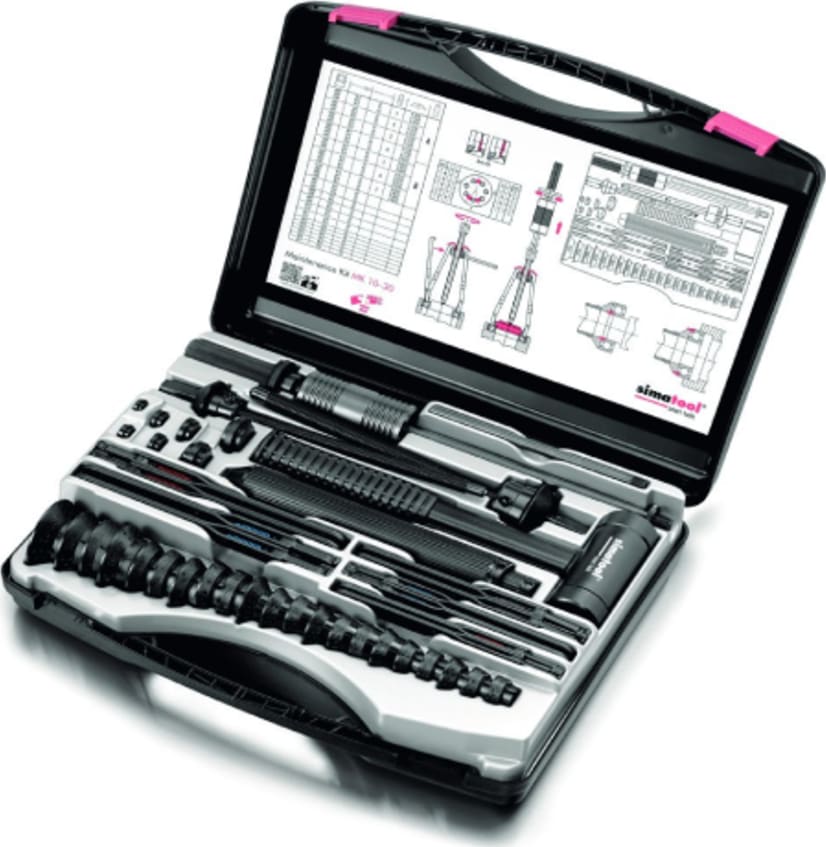

The Simatec MK 10-30 quickly and precisely mounts bearings with a diameter of 10-30 mm, and removes deep groove ball bearings from corresponding shafts and housings.

The toolset includes a multipurpose mounting tool that is suitable for mounting bearings, bushings, seals, tension rollers, and other similar parts.

The set also includes a three-armed extractor for removing deep groove ball bearings from shafts and housings. A combination of this extractor with the sliding hammer and support rings enables the easy dismounting of deep groove ball bearings from housings.

• All pieces are neatly arranged in the carrying case so that they can be easily found
• The right combination of impact ring and sleeve ensures that the mounting forces never go through the rolling elements of a bearing, which minimizes bearing damage due to incorrect installation
• The impact rings are made of high-strength modified resin. The impact sleeves are made of anodized aluminum, which is robust, stable and very light
• A complete set of different-sized puller arms and spindles simplifies the dismounting process of deep groove ball bearings
• The hooks were specially developed to be mounted in the raceway of the bearing. This offers an optimal hold and allows for greater dismounting power
• The flexible locking ring makes the assembly of the puller arms with the spindle simple
