Rigol Rigol DS4034 vs Tektronix DPO4034b Digital Oscilloscopes




Comparison of the Rigol DS4034, Tektronix DPO4034b Digital Oscilloscopes:


Rigol DS4034 comes with Rigol's UltraVision Technology, allowing for higher waveform capture rates of up to 110,000 wfms/s, real time waveform record and replay functionality of up to 200,000 frames, and multi-level intensity grading display, as well as a 9 inch WVGA 256 level intensity grading display, and a lower noise floor with a minimum vertical sensitivity of 1mV/div.

Tektronix DPO4034b uses Tektronix's Wave Inspector Controls to provide easy navigation and automated search of waveform data.

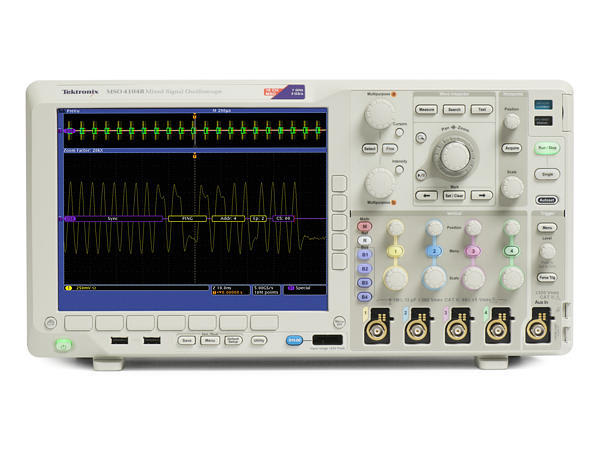

Rigol_DS4022DPO4034B_image_12-2
The key differences are listed here:


 Feature / Model DS4034 DPO4034b
Bandwidth 350 MHz 350 MHz
Memory 140 MP 10 MP
Rise Time 1 ns 1 ns
Update Rate 110,000 Wfms/s 50,000 Wfms/s
Data Logging Yes Yes
UltraVision Technology Yes No
Sampling Rate 4 GS/s 2.5 GS/s
Analog Channels 4 4
For the Full Details of the differences please see below:
(click the ? for explanations of specification terms)

ModelTektronix DPO4034BRigol DS4034
ProductOscilloscope; Digital Phosphor, 350MHz, 2.5GS/s, 20M Record Length, 4 ch, Certificate...350 MHz Digital Oscilloscope with 4 channels, 4GS/s, 140Mpoint memory
Rating(0)(1)
Price
In Stock

Oscilloscopes/Digital Oscilloscopes

Bandwidth350 MHz350 MHz
Channels44
Sampling Rate2.5 GS/S4 GS/S
Memory10 MP [megapoints] (10240 kB)140 MB (143360 kB)
Rise Time1 ns1 ns
Screen Size10.4 IN9 IN
Bits88

Test Equipment General Attributes

Unique Features140 M Samples Memory Standard
Warranty3 YEARS
Interfaces I/O LAN / Ethernet, LXI, USB Host, USB, VGA or SVGA Out
StorageCompact Flash
