Rigol Rigol DS1204b vs Tektronix TBS1202b Digital Oscilloscopes




Comparison of the Rigol DS1204b and the Tektronix TBS1202b Digital Oscilloscopes:


Rigol DS1204b is used for many applications such as Electronic Circtui Design and Testing, Transient Signal Viewing, Manufacturing Testing and Quality Control, and many others, and has a 5.7 inch QVGA 64k color TFT LCD screen, and an abundance of trigger types, including Edge, Pulse Width, Video, and Pattern, which each have unique adjustable sensitivities to meet different demands.

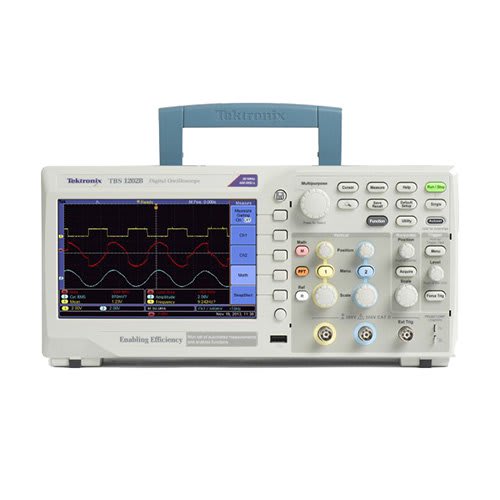

Tektronix TBS1202b includes 34 automated measurements, dual window FFT to simultaneously monitor both the time and frequency domains, built-in waveform limit and trend plot testing, and many more features.


Rigol_DS1204Btbs1202b
The key differences are listed here:


 Feature / Model DS1204b TBS1202b
Bandwidth 200 MHz 200 MHz
Memory 16 kP 2.5 kP
Rise Time 1.75 ns 1.75 ns
Update Rate 1,000 Wfms/s ---
Data Logging No Yes
UltraScope Technology Yes No
Sampling Rate 2 GS/s 2 GS/s
Analog Channels 4 2
For the Full Details of the differences please see below:
(click the ? for explanations of specification terms)

ModelRigol DS1204BTektronix TBS1202B
Product200 MHz Digital Oscilloscope with 4 channels plus USB storage, USB and LXI...Digital Storage Oscilloscope: 200MHz bandwidth, 2GS/s sample rate, 2 channel, 2.5K...
Rating(1)(0)
Price
In Stock

Oscilloscopes/Digital Oscilloscopes

Bandwidth200 MHz200 MHz
Channels42
Sampling Rate2 GS/S 2.0 GS/S
Memory16 KP [kilopoints] (16 kB) 2.5 kB
Rise Time1.75 ns1.75 ns
Screen Size5.7 IN7 IN
Bits88

Test Equipment General Attributes

Unique Features• 200 MHz. Bandwidth
• 4 Channels, Up to 1000 wfms/s Refresh Rate
• 2 GS/s Real Time Sample Rate
50 GS/s Equivalent Time Sample Rate
• Bright, Crisp, 5.7" TFT LCD COLOR Display
• Custom AFE Design - No Relays
• 22 Automatic Measurements + Math Functions, FFT
• Powerful Triggering
• Cursors: Manual, Track, and Auto Measure Modes
• Memory: 10 Waveforms, 10 Setups
• I/O: USB Device, USB Host X2, LAN, Pass/Fail Out		2 Channel 200MHz
Warranty3 YEARS5 YEARS
Warranty DetailsCovers labor and parts for defects in materials and workmanship for 5 years, excluding probes and accessories
(probes and accessories are not covered by the oscilloscope warranty and service offerings. refer to the data sheet
of each probe and accessory model for its unique warranty and calibration terms)
Safety ApprovalCECE, UL
