Rigol Rigol DS1104z vs Tektronix DPO2014b Digital Oscilloscope




Comparison of the Rigol DS1104z and the Tektronix DPO2014b Digital Oscilloscopes:


Rigol DS1104z comes with Rigol's "UltraVision" technology, allowing for Multi-Level intensity grading displays and Realtime waveform record and replay, as well as up to a 30,000 wfms/s update rate. This oscilloscope also comes with a 7in WVGA multi-levels intensity grading waveform display, a low noise floor with a dynamic range of 1mV/div to 10V/div, as well as a variety of math functions, a FFT function, and a variety of trigger functions.

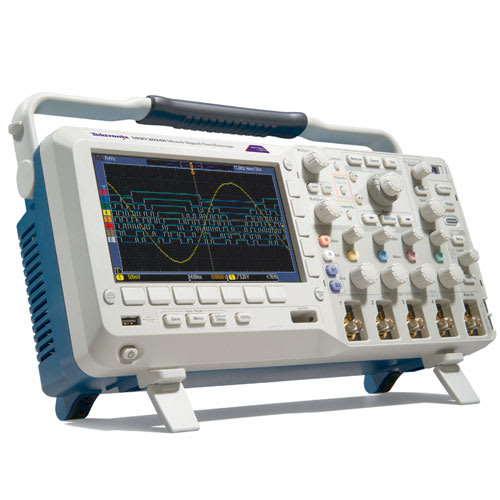

Tektronix DPO2014b has Tektronix's Digital Phosphor Technology, superimposing waveforms over one another and making frequently occuring points intensified in order to quickly highlight events that occur more often and make anomolies easier to recognize.


ds1104z_picturedpo2014b
The key differences are listed here:


 Feature / Model DS1104z DPO2014b
Bandwidth 100 MHz 100 MHz
Memory 12 MP 1 MP
Rise Time 3.5 ns 3.5 ns
Update Rate 30,000 Wfms/s 5,000 Wfms/s
Data Logging Yes Yes
UltraVision Technology Yes No
Sampling Rate 1 GS/s 1 GS/s
Analog Channels 4 4
For the Full Details of the differences please see below:
(click the ? for explanations of specification terms)

ModelTektronix DPO2014BRigol DS1104Z
ProductOscilloscope; Digital Phosphor, 100 MHz, 1 GS/s, 1M record length, 4-ch, Color...100 MHz Digital Oscilloscope with 4 channels plus 12 Mpt memory and 1 GSa/sec sampling.
Rating(1)(14)
Price
In Stock

Oscilloscopes/Digital Oscilloscopes

Bandwidth100 MHz
Channels4
Sampling Rate1 GS/S
Memory12 MP [megapoints] (12288 kB)
Rise Time3.5 ns
Screen Size7 IN
Bits8

Test Equipment General Attributes

Warranty3 YEARS
Safety ApprovalCE, CSA
Interfaces I/O LAN / Ethernet, LXI, USB Host, USB
Product Weight3.2 KILOS (7.05 LBS)
