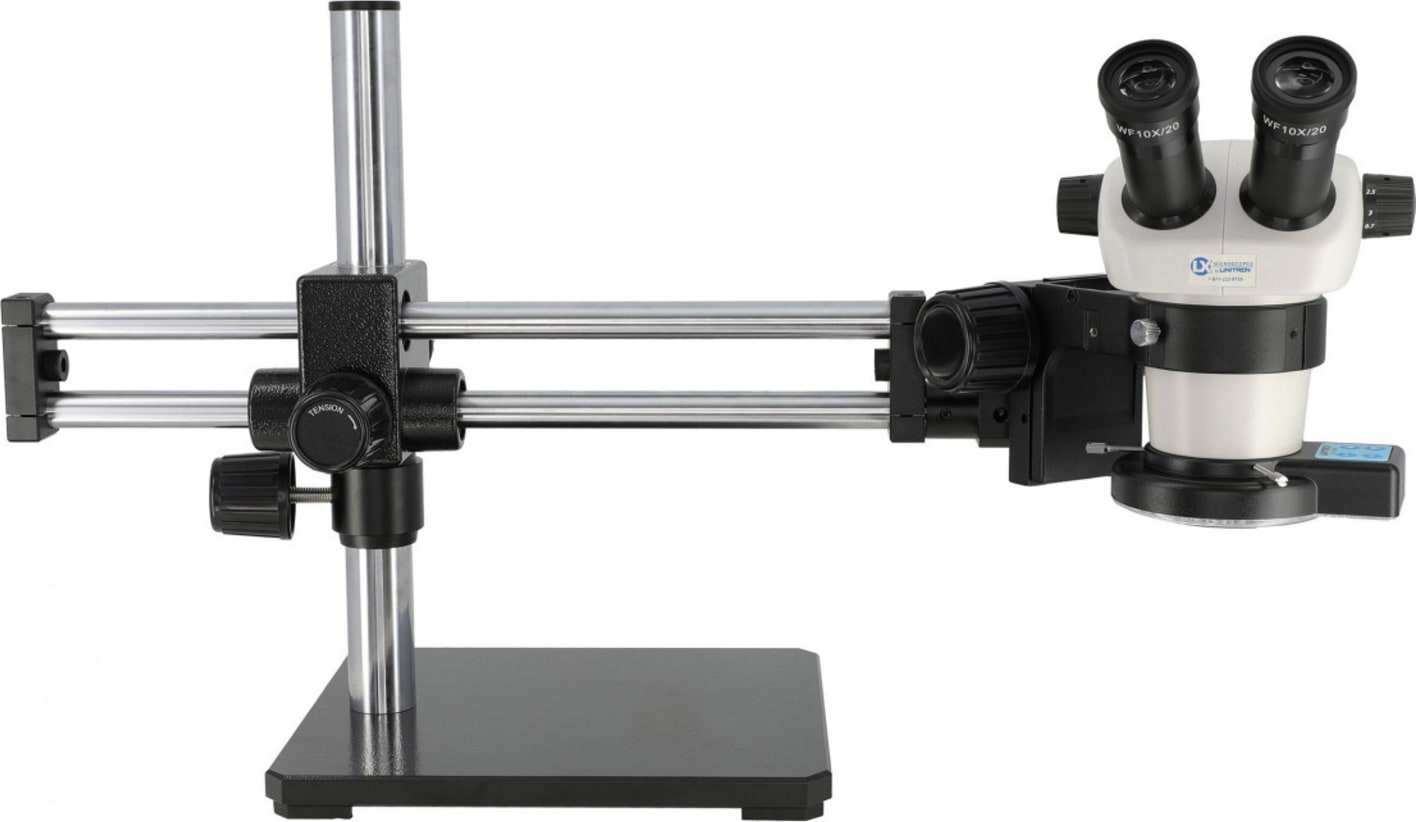

LX Microscopes by Unitron 230BB-LEDQRL - Binocular Stereo Microscope with Dual Arm Boom Stand and Quadrant LED (Catalog # 20716BB)

This item is a binocular microscope with dual arm boom stand, and a quadrant LED light source. A 1.0x objective is included.

The dual arm boom stand features a 22.5" horizontal reach. It has a 15" solid aluminum vertical post, and 11 1/8" x 10 1/4" x 7/8" base.

The quadrant ring light contains 72 LED bulbs with 10 step variable intensity control. It also features sectional control - users can direct the light from four separate quadrants. It has a color temperature of 6400K and lamp life of approximately 10,000 hours.


System 230 series

LX Microscopes by UNITRON's System 230 is a full featured binocular microscope system with a sealed polymer body. It is the perfect solution for economically budgeted production applications. Designed and intended for lighter duty usage in assembly, rework, and limited inspection processes, it features a 20mm optics system, fitting many applications where higher magnification is not required.

The System 230 has a magnification range 7x to 30x (with 10x eyepieces) and the included 1.0x objective. Both 0.5x and 0.75x objectives are available as optional items. Eyetubes are inclined at 45° and contain WF10x/20mm field of view focusing eyepieces with roll down eyeguards.


Several packages available

System 230 microscopes are available in packages with a variety of light sources and stands. The options are as follows:

• Stands
  • Single arm boom stand
  • Dual arm boom stand
  • Non-illuminated plain stand
• Illumination
  • None
  • LED-ECO ring light (30 LED's, 7w, 6500K)
  • LED3000 ring light (40 LED's, 9w, 6000K)
  • Quadrant LED ring light (72 LED's, 6400K, sectional control)

The chart below provides an overview of the main components in each:
