Keysight LCR Test Fixtures

Search within these results

16196C 16196C

0 reviews

Keysight 16196C - Parallel Electrode SMD Test Fixture for SMD Size Codes 0201(in)/0603(mm)
  • Unique Features: Frequency range : DC to 3 GHz SMD size code: 0201 (inch) / 0603 (mm) Size specs (mm): (0.6 ± 0.03) x (0.3 ± 0.03) x (0.27 to 0.33)
  • Product Weight: 0.55 LBS
  • Product Height: 1.9 IN
  • Product Length: 3.07 IN
  • Product Width: 5.51 IN

Your Price: $11,674.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99
  • View Payment Options
16196D 16196D

0 reviews

Keysight 16196D - Parallel Electrode SMD Test Fixture for SMD Size Codes 1005(in)/0402(mm)
  • Unique Features: Frequency range : DC to 3 GHz SMD size code: 1005 (inch) / 0402 (mm) Size specs (mm): (0.4 ± 0.02) x (0.2 ± 0.02) x (0.11 to 0.22)
  • Product Weight: 0.55 LBS
  • Product Height: 1.88 IN
  • Product Length: 3.07 IN
  • Product Width: 5.51 IN

Your Price: $18,504.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99
  • View Payment Options
16197A 16197A

0 reviews

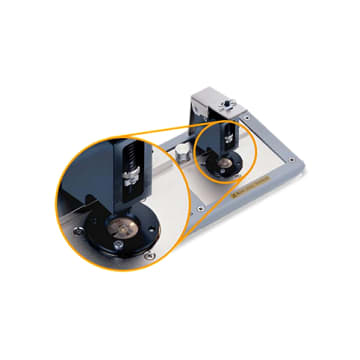

Keysight 16197A - Bottom Electrode SMD Test Fixture
  • Unique Features: Frequency range : DC to 3 GHz SMD size code range: 1005 (mm) to 3225 (mm) Size spec range (mm): (1.0 ±0.1) x (0.5 ±0.1) to (3.2 ±0.15) x (2.5 ±0.15)
  • Product Weight: 0.66 LBS
  • Product Height: 2.75 IN
  • Product Length: 6.29 IN
  • Product Width: 3.38 IN

Your Price: $9,808.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99
  • View Payment Options
16200B 16200B

0 reviews

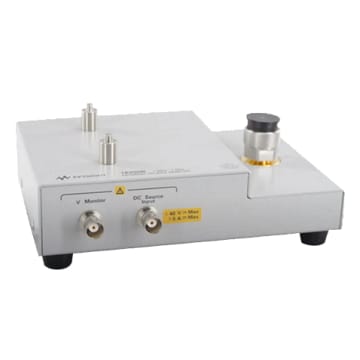

Keysight 16200B - External DC Bias Adapter
  • Unique Features: Frequency range : 1 MHz to 1 GHz Terminal connector: 7mm DC Bias input connector: BNC (female) DC bias: Up to 5A, 40 V (input)
  • Product Weight: 1.98 LBS
  • Product Height: 2.75 IN
  • Product Length: 6.69 IN
  • Product Width: 5.11 IN

Your Price: $10,252.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99
  • View Payment Options
16451B 16451B

0 reviews

Keysight 16451B - Dielectric Test Fixture
  • Product Weight: 8.15 LBS

Your Price: $10,546.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99
  • View Payment Options
16452A 16452A

0 reviews

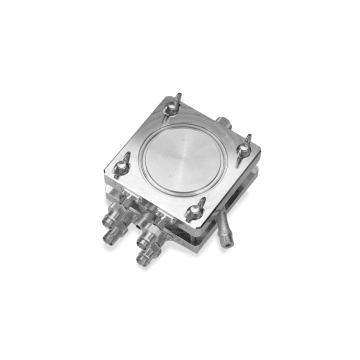

Keysight 16452A - Liquid Test Fixture
  • Unique Features: Frequency range : 20 Hz to 30 MHz Terminal connector: 4-Terminal Pair, SMA Max. voltage: 30 Vrms
  • Product Weight: 3.08 LBS
  • Product Height: 37 MM (1.46 INWhat's This?)
  • Product Length: 85 MM (3.35 INWhat's This?)
  • Product Width: 85 MM (3.35 INWhat's This?)

Your Price: $21,612.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99
  • View Payment Options
E4982A-710 E4982A-710

0 reviews

Keysight E4982A-710 - Test Fixture Stand for E4982A

Your Price: $491.00

Sign-in for EDU Pricing!

In Stock:
  • Free shipping over $99
  • View Payment Options
null
null
null
null
null
null
null

Recommended for you

LCR Test Fixtures

LCR Test Fixtures hold the device under test (DUT). These test fixtures are intended for use with benchtop LCR meters. The fixture connects to the benchtop meter and is then used to measure the inductance, capacitance, and resistance (LCR) of SMD components, air-core coils, or transformers.
