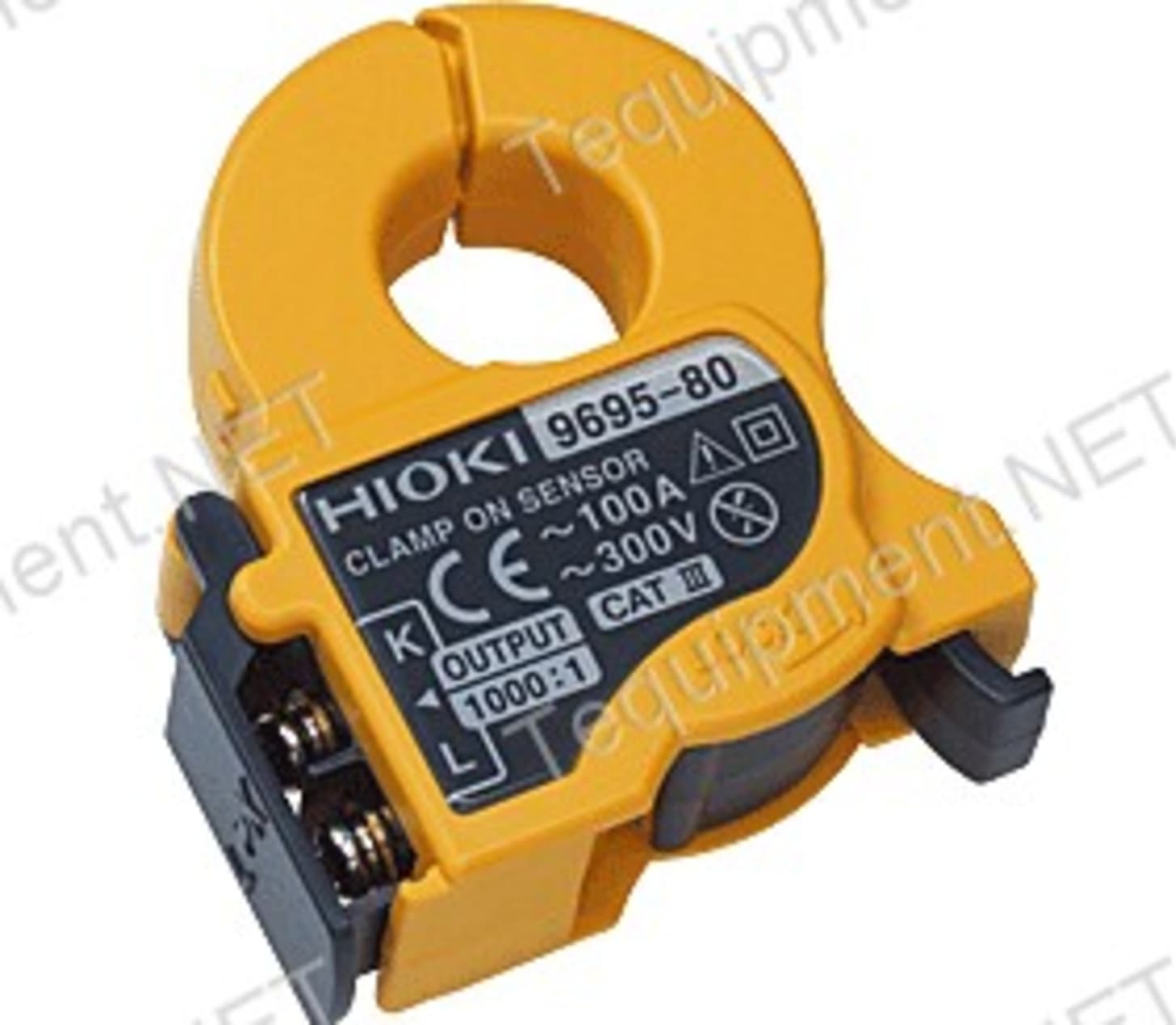

| (Accuracy guaranteed for one year at 23°C±5°C(73°F±9°F), 80%RH or less. Endurance number of the core opening and closing part: 10000 times) |
| Rated primary current |
100 A AC |
| Rated secondary current |
100 mA AC |
| Amplitude accuracy |
±0.5% rdg.±0.2%f.s. (45Hz to 66Hz, at core center, Note that f.s. is the range of the 3166 and 3168 CLAMP ON POWER HiTESTER units. Please refer to the HiTESTER specifications to ensure accuracy when using this unit with a Power HiTESTER unit.) |
| Phase accuracy |
Within ±1° (45 Hz to 5 kHz) |
| Amplitude frequency characteristics |
Within ±1% at 40 Hz to 5 kHz (deviation from accuracy) |
| Effect of conductor position |
Within ±0.5% (deviation from center) |
| Effect of external electromagnetic field |
0.1 A equivalent or lower (in an AC electromagnetic field of 400 A/m) |
| Maximum input current |
130 A continuous (at 45 to 66 Hz, ambient temperature 50°C) |
| Dielectric strength |
3536 V ACrms for 15 sec (between electric circuit and core) |
| Maximum rated voltage to earth |
300 V ACrms or lower (Insulated conductor) |
| Operating Temperature & Humidity |
0 to 50°C (32 to 122°F), 80%RH or lower (non-condensating) |
| Storage Temperature & Humidity |
-10 to 60°C(14 to 140°F), 80%RH or lower (non-condensating) |
| Operating Environment |
Indoors, up to 2000 m (6562-ft.) ASL |
| Standards applying |
Safety
EN61010-2-032:2002 Type B current sensor
Measurement Category III, Pollution Degree 2
(Anticipated Transient Overvoltage: 4000 V)
EMC
EN61326:1997+A1:1998+A2:2001+A3:2003 |
| Measurable conductor diameter |
15 mm (0.59”) or less |
| Output terminals |
M3 terminal (Maximum outside diameter: 6.5 mm/0.26”, inside diameter: 3.2 mm/0.13”) |
| Cable length |
3 m or less |
| Dimensions |
Approx. 50.5W x 58.0H x 18.7D mm (1.99”W x 2.28”H x 0.74”D) (excluding protrusions) |
| Mass |
Approx. 50 g (1.8 oz.) |
| Accessory |
Instruction Manual |
| Option |
9219 CONNECTION CABLE |
f.s.: maximum display value or scale length
rdg.: reading value (The value currently being measured and indicated on the measuring product) |
