Hakko Hakko FR-300 vs Hakko FR-301

Hakko FR-300 vs Hakko FR-301

  Hakko FR-300 Hakko FR-301

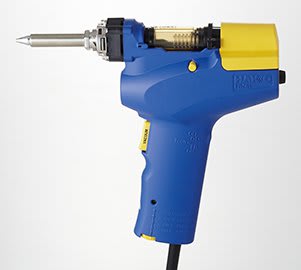

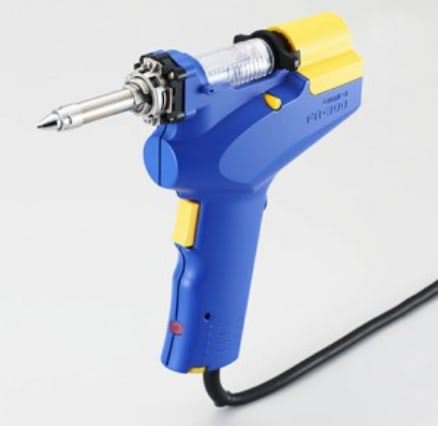

  hakko_fr-300 Hakko-FR-301_tn
Power Consumption 140W 140W
Temperature Range 660-930 °F 660-930 °F
Tip to Ground Resistance < 2 Ohms < 2 Ohms
Tip to Ground Potential < 2 mV < 2 mV
Temp Stability and Accurarcy Meets or exceeds IPC J-STD-001 Meets or exceeds IPC J-STD-001
Vacuum Source Single cylinder diaphragm pump Single cylinder diaphragm pump
Vacuum Pressure 81 kPa (610 mm Hg / 24 in Hg 81 kPa (610 mm Hg / 24 in Hg
Suction Flow 11 L / min 11 L / min
Nozzles N50 series N61 series


The Hakko FR-301 is the direct replacement for the FR-300.  The two items are similar products, however, the FR-301 does feature some design improvements, including:
  • Improved temperature recovery time for greater efficiency
  • Addition of guard to reduce solder clogging
  • Filter pipe uses the same design as the FR-410, making it easier to clean than the FR-300
  • The FR-301 uses N61 nozzles, which has three times the amount of nozzles than the FR-300
ModelHakko FR-301
ProductTOOL, DSLDR, HANDY TYPE, NON-ESD, w/CASE, FR-301, GLD
Rating(95)
Price
In Stock

Desoldering Equipment / Rework

Functionality (Soldering Equipment)Vacuum (Desoldering)
Channels1
Power Supply Voltage110V

Test Equipment General Attributes

HTS/Schedule B Number8515.90.4000
ECCN NumberEAR99
Country of OriginJapan
