| Model | Fluke 87-5 | Fluke 116 |
|---|

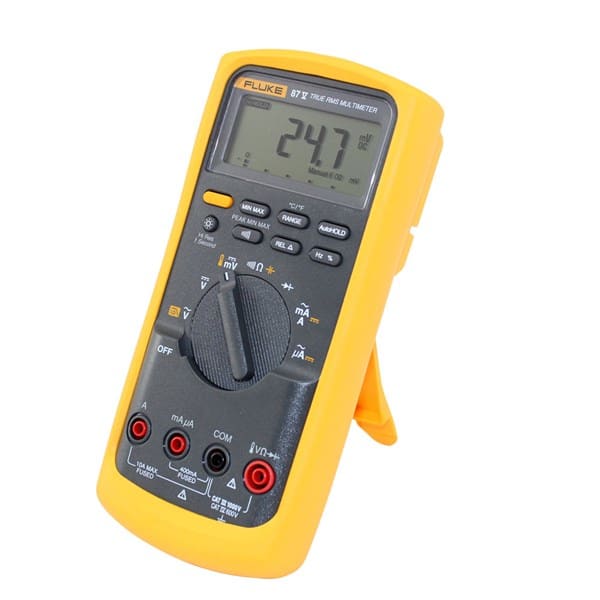

| Product | 87-V INDUSTRIAL TRUE RMS MULTIMETER | Fluke 116 True-RMS AC/DC HVAC Multimeter with Temperature and Microamp Measurements |
|---|
| Rating | (90) | (31) |
|---|
| Price | | |
|---|
| In Stock | | |
|---|
|
Multimeters |
| Style | Hand-Held | Hand-Held |
|---|
| Measures AC V | Yes | Yes |
|---|
| Measures DC V | Yes | Yes |
|---|
| Measures AC A | Yes | Yes |
|---|
| Measures DC A | Yes | Yes |
|---|
| True RMS | Yes | Yes |
|---|
| Maximum Voltage AC | 1000 V | 600 V Maximum Voltage AC Range / Resolution
600.0 mV / 0.1 mV
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V |
|---|
| Resolution AC Volts | 0.1 mV | 0.1 mV Resolution AC Volts Range / Resolution
600.0 mV / 0.1 mV
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V |
|---|
| Maximum Voltage DC | 1000 V | 600 V Maximum Voltage DC Range / Resolution
600.0 mV / 0.1 mV
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V |
|---|
| Resolution DC Volts | 0.1 mV | 0.1 mV Resolution DC Volts Range / Resolution
600.0 mV / 0.1 mV
6.000 V / 0.001 V
60.00 V / 0.01 V
600.0 V / 0.1 V |
|---|
| Maximum Current AC | 10 A Maximum Current AC 20 A for 30 seconds maximum | 600 uA (0.0006 A) Maximum Current AC Range / Resolution
600.0 µA / 0.1 µA |
|---|
| Minimum Current AC | 0.1 uA (0.00010 mA) | 0.1 uA (0.00010 mA) Minimum Current AC Range / Resolution
600.0 µA / 0.1 µA |
|---|
| Resolution AC Current | 0.1 uA (0.00010 mA) | 0.1 uA (0.00010 mA) Resolution AC Current Range / Resolution
600.0 µA / 0.1 µA |
|---|
| Maximum Current DC | 10 A Maximum Current DC 20 A for 30 seconds maximum | 600 uA (0.0006 A) Maximum Current DC Range / Resolution
600.0 µA / 0.1 µA |
|---|
| Minimum Current DC | 0.1 uA (0.00010 mA) | 0.1 uA (0.00010 mA) Minimum Current DC Range / Resolution
600.0 µA / 0.1 µA |
|---|
| Resolution DC Current | 0.1 uA (0.00010 mA) | 0.1 uA (0.00010 mA) Resolution DC Current Range / Resolution
600.0 µA / 0.1 µA |
|---|
| Basic Accuracy V DC | ± (0.05 % + 1) | 0.5% Basic Accuracy V DC +/- 0.5 % + 2 counts |
|---|
| # Digit Display | 4.5 | 3.5 |
|---|
| Counts | 6000 . Counts 6000 counts updates 4/sec; 19,999 counts in high-resolution mode | 6000 . Counts Updates 4/sec |
|---|
| Backlight | Yes | Yes |
|---|
| Manual/Autoranging | Both | Both |
|---|
| Decibels | No | No |
|---|
| Resistance | Yes Resistance Maximum Resistance 50 Ω
Accuracy ±(0.2%+1)
Maximum Resolution 0.1Ω | Yes Resistance Range / Resolution
600.0 Ω / 0.1Ω
6.000 kΩ / 0.001 kΩ
60.00 kΩ / 0.01 kΩ
600.0 kΩ / 0.1 kΩ
6.000 MΩ / 0.001 MΩ
40.00 MΩ / 0.01 MΩ |
|---|
| Frequency | Yes Frequency Maximum Frequency 200 kHz
Accuracy ±(0.005%+1)
Maximum Resolution 0.01 Hz | Yes |
|---|
| Capacitance | Yes Capacitance Maximum Capacitance 9,999 µF
Accuracy ±(1%+2)
Maximum Resolution 0.01 nF | Yes Capacitance Range / Resolution
1000 nF / 1 nF
10.00 µF / 0.01 µF
100.0 µF / 0.1 µF
9999 µF / 1 µF
100 µF to 1000 µF |
|---|
| Temperature | Yes Temperature Range: 200.0°C - 1090°C, -328.0°F - 1994.0°F;
80 BK Temperature Probe
-40.0°C - 260°C, -40.0°F - 500°F | Yes Temperature Range / Resolution
-40 °C to 400 °C / 0.1 °C
-40 °F to 752 °F / 0.2 °F |
|---|
| Diode Testing | Yes Diode Testing Range 3 V
Resolution 1 mV
Accuracy ± (2 % + 1) | Yes |
|---|
| CAT Rating | IV CAT Rating CAT III 1000 V / CAT IV 600 V | III |
|---|
| CAT Voltage | 1,000 V, 600 V | 600 V |
|---|
| Intrinsically Safe | No | No |
|---|
| Peak Hold | Yes | No |
|---|
| Overload Protector | Yes | Yes Overload Protector 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2 |
|---|
| Kelvin 4-Wire Measurement Capability | No | No |
|---|
| Wireless Display | No | No |
|---|
| Data Hold | Yes | Yes |
|---|
| Low-Pass Filter | Yes | No |
|---|
| Duty Cycle % | Range: 0.0 to 99.9 %
Accuracy: Within ± (0.2 % per kHz + 0.1 %) for risetimes < 1 μs | N/A |
|---|
Test Equipment General Attributes |
| Unique Features | •Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
•Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
•Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
•Large digit display with bright, two-level backlight makes the 87V significantly easier to read than older models
•True-rms ac voltage and current for accurate measurements on non linear signals
•Selectable filter for accurate voltage and frequency measurements on motor drives
•0.05 % dc accuracy
•6000 counts, 3-3/4 digits
•4-1/2 digit mode for precise measurements (20,000 counts)
•Measure up to 1000 V ac and dc
•Measure up to 10 A, 20 A for up to 30 seconds
•Built in thermometer lets you carry one less tool (TC probe included)
•Frequency to 200 kHz and % duty cycle
•Resistance, continuity and diode test
| •Built-in thermometer for HVAC applications
•Microamps to test flame sensors
•Low input impedance: helps prevent false readings due to ghost voltage
•Large white LED backlight to work in poorly lit areas
•Resistance, continuity, frequency and capacitance
•Min/Max/Average with elapsed time to record signal fluctuations
•Compact ergonomic design for one-handed operation
•Compatible with optional magnetic hanger (ToolPak™)
•CAT III 600 V safety rated |
|---|
| Warranty | 10 YEARS | 3 YEARS |
|---|
| Additional Info/Comments | •10,000 µF capacitance range for components and motor caps
•Min/Max-Average recording with Min/Max Alert to capture variations automatically
•Peak capture to record transients as fast as 250 µs
•Relative mode to remove test lead interference from low ohms measurements
•Auto and manual ranging for maximum flexibility
•Touch Hold to capture stable readings avoiding noisy signals
•Large display digits and two-level bright white backlight for increased visibility
•Analog bargraph for fast changing or unstable signals
•Input Alert provides audible warning against wrong use of input jacks
•Improved selectable sleep mode for long battery life
•Access door for fast battery changes without breaking the calibration seal
•"Classic" design with new removable holster with built in test lead and probe storage
•Lifetime warranty | N/A |
|---|
| Safety Approval | CSA, UL Safety Approval Designed to comply with IEC 1010-1 as a 1000V, CAT III instrument (see pg.2 for
definition of CAT III). UL listed to UL3111, TUV licensed to EN 61010-1, CSA 22.2
No. 1010.1:1992 | CSA, UL Safety Approval ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN
61010-1 2nd Edition for measurement Category III, 600 V, Pollution Degree 2, EMC EN61326-1 |
|---|
| Interfaces I/O | Other, Analog Input | Analog Output, Analog Input |
|---|
| IP Rating | N/A | IP42 |
|---|
| Product Weight | 0.78 LBS | 1.21 LBS |
|---|
| Product Height | 1.25 IN Product Height With Holster and Flex-Stand: 2.06 inches | 1.82 IN |
|---|
| Product Length | 7.35 IN Product Length With Holster and Flex-Stand: 7.93 inches | 6.57 IN |
|---|
| Product Width | 3.41 IN Product Width With Holster and Flex-Stand: 3.86 inches | 3.31 IN |
|---|
| Data Logging | No | No |
|---|
| ECCN Number | 3A992 | 3A992 |
|---|
| Calibration Included | Factory Calibration | Factory Calibration Calibration Included Factory Calibrtion without certification.
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 % |
|---|
| Battery Type | 9v Battery Type 9V, NEDA 1604 or 6F22 or 006P
400 hrs typical with alkaline | 9v |
|---|
| Power Supply Voltage | Battery Powered | Battery Powered |
|---|
| Country of Origin | United States | Singapore |
|---|
| UPC | 095969245241 | 095969324199 |
|---|
