Fluke CV201 2 inches (50 Millimeter) IR Window, Security Key Door Latch

Compliance without compromise. Safety without sacrifice.
Increase the safety and speed of electrical thermal imaging inspections with the new Fluke ClirVu IR Windows. Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance.

• No more removing the panel door for installation
• Work permit requirements and NFPA 70E processes are significantly reduced
• Full PPE is often not required so inspections are done faster and more comfortable
• Superior arc blast protection:
  • High temperature silicon gaskets
  • Mounting and door latches provide high pressure gasket compression
  • Die cast components are manufactured with the highest strength alloys (ZA-27 and EZAC)
  • Jam nut screws are made from 4037 steel, heat treated to 160,000 psi tensile
  • High temperature silicon gaskets
• Torture Tested to the highest test ratings
  • IEEE C37.20.7 63 kA Arc tested at KEMA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14-13:2012, and CE

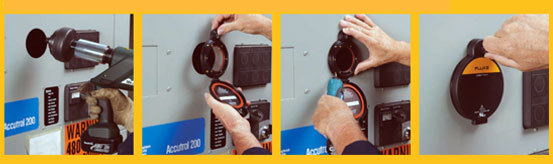

• Quick and easy installation
  • Installation takes 5 minutes with one technician
  • Only one hole necessary with standard Greenlee punch. Rear access required for punch connection only (Easily accomplished with one technician)
  • Installs from front; no template needed; no rear access required
  • Grounds instantly to metal enclosure with patent pending AutoGround process
  • Sharp teeth on jam nuts assure four gas-tight ground connections
  • All components have electrically conductive finishes for optimum grounding
• Quarter turn latch easily opens hinged cover
• Corrosion and UV resistance for challenging outdoor environments:
  • All hardware is made from stainless steel or zinc plated steel
  • Die cast components are plated with black chromium over high phosphorous Electroless nickel
• Three sizes 50 mm, 75 mm and 95 mm (2 in , 3 in and 4 in) with the option of hand turn or security key door latches

Five minutes is all it takes to install a Fluke ClirVu® CV Series IR Window, the only IR Window with AutoGround™. With its AutoGround design, Fluke has eliminated the need to separately ground each metal component of the window. The time saved and safety benefits from installation alone clearly make Fluke the preferred choice. The ClirVu® coating - exclusive to Fluke infrared windows - seals the optic prior to assembly to protect against moisture degradation making it perfect for very hot and very cold environments.

Torture Tested to the highest arc blast test ratings
Fluke’s IR Windows aren’t just tested, they’re Torture Tested to ensure you get the best protection and years of hassle-free, safe operation. IEEE C37.20.7: 63 kA Arc tested at KEMA; UL 50/50E/50V; UL1558; IEC60529-1; IP67; IEC 60068; NEMA 4/12; CSA C22.2 NO. 14-13:2012 and CE. Grounds instantly to metal enclosure with patent-pending AutoGround™ process. Maintains panel arc-test ratings up to 63 kA when properly installed

Convenience at the turn of a key
ClirVu IR Windows are designed with hinged covers that can be easily opened with the quarter turn latch or security key to perform an infrared inspection. The covers also protect the windows from accidental exterior impact.
