Fluke 1587 FC vs MIT515 vs MIT2500 vs MIT430/2

Fluke 1587 FC vs Megger MIT515 vs Megger MIT2500 vs Megger MIT430/2

Insulation Tester Comparison Guide

Fluke 1587 FC vs Megger MIT515 vs Megger MIT2500 vs Megger MIT430/2

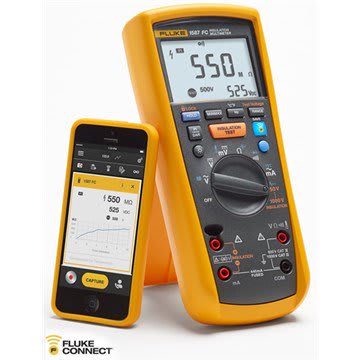

The Fluke 1587 FC is a 2-in-1 insulation multimeter with Fluke Connect wireless capability built-in. Fluke Connect is a powerful feature which allows you to collect data wirelessly and save it to your smartphone and to the cloud. This feature makes it easy to review data gathered over time amd helps you schedule maintenance when it fits your schedule, not when an unplanned breakdown happens. This meter can supply test voltages from 50 to 1000 V with an insulation range up to 50 MΩ. The meter is safety rated to CAT IV 600 V and rated to IP54 against dust and water ingress. With this meter, you can perform PI, DAR, and timed tests.

The Megger MIT515 does not include any wireless measurement capability, however it offers some other advantages over the 1587 FC. The primary advantages are a wider voltage range up to 5000 V as well as a higher insulation resistance range up to 10 TΩ. The MIT515 is also more rugged than the 1587 FC, especially with the unit's lid closed - with a closed lid, the MIT515 is rated to CAT IV 1000 V and IP65. The MIT515 is capable of performing IR, PI, and DAR tests.

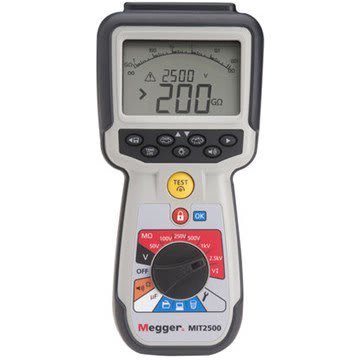

The Megger MIT2500 features Bluetooth capability which allows you to wirelessly download data from the device to a computer. While it's a step below the powerful MIT515, the MIT2500 does feature a wider voltage range up to 2500 V as well as a higher insulation resistance range up to 200 GΩ when compared with the Fluke 1587 FC. The MIT2500 also shares some specifications with the 1587 FC including a CAT IV 600 V safety rating, IP54 ingress protection rating, and test modes including PI, DAR, and timed.

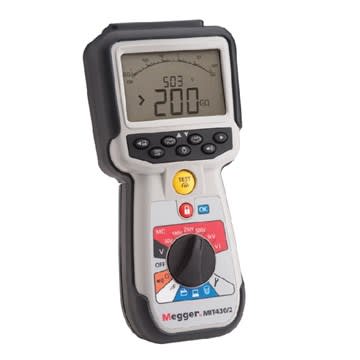

The Megger MIT430/2 also features Bluetooth capability which allows you to wirelessly download data from the device to a computer as a CSV file compatible with Excel. Concerning specifications, the MIT430/2 comes in below the MIT515 and MIT2500 but compares closely with the Fluke 1587 FC - both meters support test voltages up to 1000 V and feature a CAT IV 600 V safety rating and IP54 ingress protection rating. Test modes for both also include PI, DAR, and timed tests. That said, the MIT430/2 does have an advantage over the 1587 FC with an insulation range up to 200 GΩ.

Want to know more? Check out the tables below for complete specifications or give us a call at 877-571-7901. We’re happy to answer any questions you may have.

Key Points
  Fluke 1587 FC Megger MIT515 Megger MIT2500 Megger MIT430/2

List Price $799.99 $2,155.00 $1,535.00 $935.00
Test Voltage 50 to 1000 V 5000 V 10 to 2500 V 10 to 1000 V
Voltage 1000 V 30 V to 660 V AC or DC 600 V 600 V
Insulation Range 50 MΩ 10 TΩ 200 GΩ 200 GΩ
Test Modes PI, DAR, timed IR, PI, DAR PI, DAR, timed PI, DAR, timed
Memory / Storage 1000 tests with alkaline batteries 5.5 hours logging @ 5sec intervals >1000 test results >1000 test results
Altitude 2000m 3000m 2000m 2000m
Battery (4) AA batteries Line & battery powered (Li-ion) (6) AA batteries; alkaline or NiMH rechargeable (6) AA batteries; alkaline or NiMH rechargeable
Bluetooth Fluke Connect wireless enabled No Yes Yes
Display Backlit Backlit Dual with analog ARC Dual with analog ARC
Guard Terminal N/A Yes Yes Yes
IP Rating IP54 IP65 (closed lid) IP54 IP54
CAT Rating CAT IV 600 V CAT IV 1000 V (closed lid) CAT IV 600 V CAT IV 600 V
ModelMegger MIT430/2Megger MIT2500Megger MIT515
ProductMIT430/2-LG2 (EN ES PT IT) Insulation And Continuity Tester 50/100/250/500/1000V 600 V...2.5 kV insulation, continuity, capacitance and result storage and downloadingMIT515-US Insulation Tester 5kV IRT, IR, IR(t), DAR, PI, Battery and line powered to...
Rating(2)(1)(1)
Price
In Stock

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers

IR Test Voltage1,000 V, 100 V, 250 V, 50 V, 500 V1,000 V, 125V, 2,500 V, 250 V, 50 V, 500 V1,000 V, 2,500 V, 250 V, 5,000 V, 500 V
Maximum Insulation Resistance200 G Ohms 200 G Ohms10 T Ohms (10000 G Ohms)
Automated Test ResultsDielectric Absorption Ratio, Dielectric Discharge, Leakage Current, Other, Step VoltageDielectric Absorption Ratio, OtherDielectric Absorption Ratio, Dielectric Discharge, Other, Step Voltage
TypeBatteryBatteryBattery, Line
Minimum Insulation Resistance0.01 Ohms (0.00000000001 G Ohms)10 K Ohms (0.00001 G Ohms)
Variable Incremental VoltageYesYes Yes
Display (Megohmmeter)DigitalDigitalDigital
Continuity TestYesYesNo
Live Circuit Voltage DetectionYes YesYes
Power SupplyBatteryBatteryBattery, Line Powered
TimerYesYesYes
