Agilent Rigol DS4024 vs Agilent DSOX4024a Digital Oscilloscopes




Comparison of the Rigol DS4024 and the Agilent DSOX4024a Digital Oscilloscopes:


Rigol DS4024 comes with Rigol's UltraVision Technology, allowing for higher waveform capture rates of up to 110,000 wfms/s, real time waveform record and replay functionality of up to 200,000 frames, and multi-level intensity grading display, as well as a 9 inch WVGA 256 level intensity grading display, and a lower noise floor with a minimum vertical sensitivity of 1mV/div.

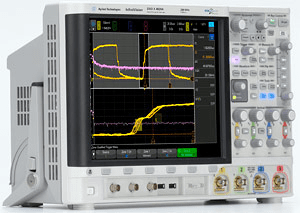

Agilent DSOX4024a includes Agilent's MegaZoomIV Technology, giving uncompromised smart memory, as well as being fully upgradable including bandwidth.

Rigol_DS4024dsox4024a
The key differences are listed here:


 Feature / Model DS4024 DSOX4024a
Bandwidth 200 MHz 200 MHz
Memory 140 MP 4 MP
Rise Time 1.75 ns 1.75 ns
Update Rate 110,000 Wfms/s 1,000,000 Wfms/s
Data Logging Yes Yes
UltraVision Technology Yes No
Sampling Rate 4 GS/s 5 GS/s
Analog Channels 4 4
For the Full Details of the differences please see below:
(click the ? for explanations of specification terms)

ModelRigol DS4024Agilent DSOX4024A
Product200 MHz Digital Oscilloscope with 4 channels, 4GS/s, 140Mpoint memoryOscilloscope, 4-channel, 200 MHz
Rating(22)(0)
Price
In Stock

Oscilloscopes/Digital Oscilloscopes

Bandwidth200 MHz
Channels4
Sampling Rate4 GS/S
Memory140 MB (143360 kB)
Rise Time1.8 ns
Screen Size9 IN
Bits8

Test Equipment General Attributes

Unique Features140 M Samples Memory Standard
Warranty3 YEARS
Safety ApprovalCE, CSA
Interfaces I/O LAN / Ethernet, LXI, USB Host, USB, VGA or SVGA Out
