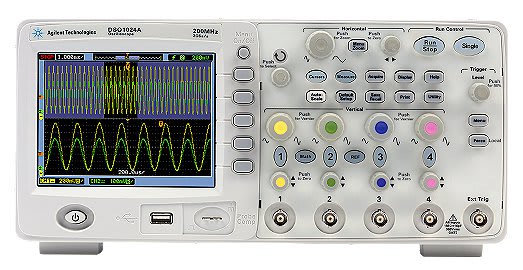

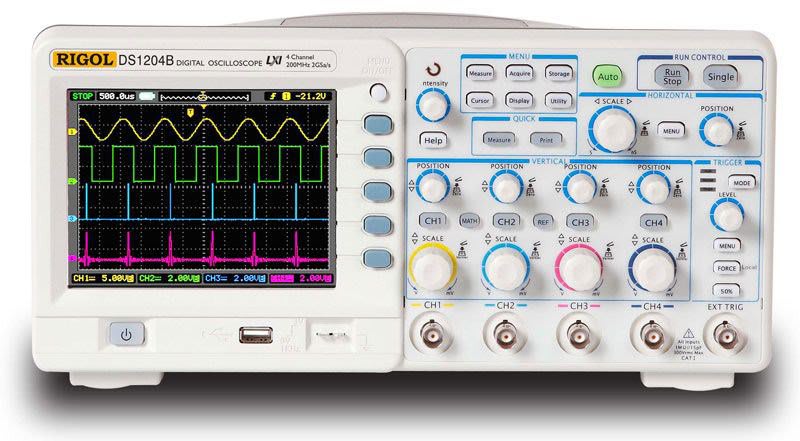

| Model | Rigol DS1204B | Agilent DSO1024A | Tektronix TBS1154 |
|---|
| Product | 200 MHz Digital Oscilloscope with 4 channels plus USB storage, USB and LXI... | Oscilloscope, 4-channel, 200 MHz | Digital Storage Oscilloscope: 150MHz bandwidth, 1GS/s sample rate, 4 channel, 2.5K... |
|---|
| Rating | (1) | (0) | (0) |
|---|
| Price | | | |
|---|
| In Stock | | | |
|---|
|
Oscilloscopes/Digital Oscilloscopes |
| Bandwidth | 200 MHz | 200 MHz | 150 MHz |
|---|
| Channels | 4 | 4 | 4 |
|---|
| Sampling Rate | 2 GS/S Sampling Rate 2 GS/s Real Time Sample Rate
50 GS/s Equivalent Time Sample Rate | 1 GS/S Sampling Rate 2 GSa/s sample rate half channel, 1 GSa/s each channel | 1 GS/S |
|---|
| Memory | 16 KP [kilopoints] (16 kB) Memory 16 kpts(half channel), 8 kpts(each channel) | 10 KP [kilopoints] (10 kB) Memory 20 kpts memory half channel, 10 kpts each channel | 2.5 MB (2560 kB) |
|---|
| Rise Time | 1.75 ns | 1.75 ns | 2.6 ns |
|---|
| Screen Size | 5.7 IN | 5.7 IN | 5.7 IN |
|---|
| Bits | 8 | 8 | 8 |
|---|
Test Equipment General Attributes |
| Unique Features | • 200 MHz. Bandwidth
• 4 Channels, Up to 1000 wfms/s Refresh Rate
• 2 GS/s Real Time Sample Rate
50 GS/s Equivalent Time Sample Rate
• Bright, Crisp, 5.7" TFT LCD COLOR Display
• Custom AFE Design - No Relays
• 22 Automatic Measurements + Math Functions, FFT
• Powerful Triggering
• Cursors: Manual, Track, and Auto Measure Modes
• Memory: 10 Waveforms, 10 Setups
• I/O: USB Device, USB Host X2, LAN, Pass/Fail Out | • 20 kpts memory per channel, up to 8 times more than competitive scopes, means you can
see more time and more detail on your signal
• A 5.7-inch diagonal color QVGA TFT LCD gives you a noticeably brighter and crisper
waveform display
• A wider viewing angle lets you see the display even when you’re not right in front of
the unit
• True zoom mode means you can see the big picture and the details at the same time
• Optionally switch off the menu display for almost 25% more viewing area
| |
|---|
| Warranty | 3 YEARS | 3 YEARS | 5 YEARS |
|---|
| Warranty Details | | Return to Agilent Warranty - 3 years | |
|---|
| Safety Approval | CE | | CE |
|---|
| Interfaces I/O | LAN / Ethernet, USB Host, USB Interfaces I/O USB Device, USB Host X2, LAN, Pass/Fail Out | Analog Output, Analog Input , Remote Sense | USB Host, USB |
|---|
| Storage | | Compact Flash | |
|---|
| Product Weight | 6.61 LBS Product Weight Packaged
9.47lbs | 6.68 LBS | 4.4 LBS |
|---|
| Product Height | 159 MM (6.26 IN) | 5.08 IN | 6.22 IN |
|---|
| Product Length | 133 MM (5.24 IN) | 12.78 IN | 12.85 IN |
|---|
| Product Width | 325 MM (12.80 IN) | 6.21 IN | 4.89 IN |
|---|
| Shipping Weight | | 10.74 LBS | 7 LBS |
|---|
| Data Logging | No | Yes | Yes |
|---|
| HTS/Schedule B Number | 9030201000 | | |
|---|
| ECCN Number | 3A992.g | | |
|---|
| Calibration Included | Factory Calibration | Factory Calibration, NIST Calibration | NIST Calibration |
|---|
| Power Supply Voltage | 120V/220V Universal Power Supply Voltage AC,100~240 V, 45~440Hz, CAT II | 120V/220V Universal Power Supply Voltage 100-240 VAC, 50/60 Hz ± 10%
| 120V/220V Universal |
|---|
| Country of Origin | China | Malaysia | China |
|---|
| Shipping Height | 12.00 IN | | 10.5 IN |
|---|
| Shipping Length | 18.00 IN | | 18.75 IN |
|---|
| Shipping Width | 11.00 IN | | 9 IN |
|---|
