Agilent Rigol DS1074z vs Tektronix TDS2002c vs Agilent DSO1004a Digital Oscilloscopes




Comparison of the Rigol DS1074z, Tektronix TDS2002c, and Agilent DSO1004a Digital Oscilloscopes:


Rigol DS1074z comes with Rigol's "UltraVision" technology, allowing for up to 30,000 wfms/s Waveform capture rates, multi-level intensity grading displays, and realtime waveform record and replay functions. This oscilloscope also comes with a 7 inch WVGA multiple intensity level waveform display, a low noise floor with a dynamic range of 1mV/div to 10V/div, as well as a variety of math functions, a FFT function, and a variety of trigger functions.

Tektronix TDS2002c has 16 automated measurements and FFT analysis, built-in waveform limit testing, and many other features available in the TDS2000 series.

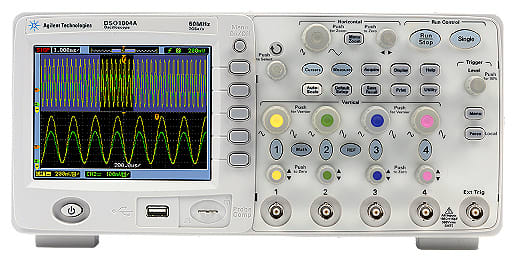

Agilent DSO1004a comes with Agilent's Tue Zoom mode, allowing you to view your entire signal and zoomed in waveform details at the same time, as well as a go/no-go mask testing function, allowing even inexperienced oscilloscope users to make precise measurements.


ds1074z_image_1TDS2002C_image_1Agilent DSO1004A
The key differences are listed here:


 Feature / Model DS1074z TDS2002c DSO1004a
Bandwidth 70 MHz 70 MHz 60 MHz
Memory 12 MP 2.5 kP 20 kP
Rise Time 5 ns 5 ns 5.83 ns
Update Rate 30,000 Wfms/s --- 400 Wfms/s
Data Logging Yes Yes No
UltraVision Technology Yes No No
Sampling Rate 1 GS/s 1 GS/s 2 GS/s
Analog Channels 4 2 4
For the Full Details of the differences please see below:
(click the ? for explanations of specification terms)

ModelRigol DS1074ZTektronix TDS2002CAgilent DSO1004A
Product70 MHz Digital Oscilloscope with 4 channels plus 12 Mpt memory and 1 GSa/sec...Oscilloscope; Digital Storage, 70MHz, 1GS/s, 2-CH, TFT Color Display, USB Ports...Oscilloscope, 4-channel, 60 MHz
Rating(55)(0)(0)
Price
In Stock

Oscilloscopes/Digital Oscilloscopes

Bandwidth70 MHz70 MHz60 MHz
Channels424
Sampling Rate1 GS/S 1 GS/S
Memory12 MP [megapoints] (12288 kB)2.5 KP [kilopoints] (2.5 kB)20 KP [kilopoints] (20 kB)
Rise Time5 ns5 ns
Screen Size7 IN5.7 IN5.7 IN
BitsN/A88

Test Equipment General Attributes

Unique FeaturesOptional Serial Bus Triggering and Decoding functions(RS232,I2C,SPI)

Factory calibrated is included		70 MHz Bandwidth
2-channel
1 GS/s Sample Rate on both Channels
2.5k point Record Length on both Channels
Advanced Triggers including Pulse Width and Line-selectable Video
16 Automated Measurements, and FFT Analysis
Built-in Waveform Limit Testing
Automated, Extended Data Logging Feature 		All 1000 Series models provide up to 20 kpts per channel of convenient acquisition memory standard. The scope will maintain high-resolution acquisitions even at slower timebase settings so you can see the details on your signals.
Warranty3 YEARS3 YEARS
Warranty DetailsLifetime is defined as 5 years after Tektronix discontinues manufacturing the product, but the
warranty length shall be at least ten years from date of original purchase. Lifetime warranty is
nontransferable, proof of original purchase is required. Limitations apply. For terms and conditions visit
www.tektronix.com/lifetimewarranty.		Return to Agilent Warranty - 3 years
Safety ApprovalCE CE
