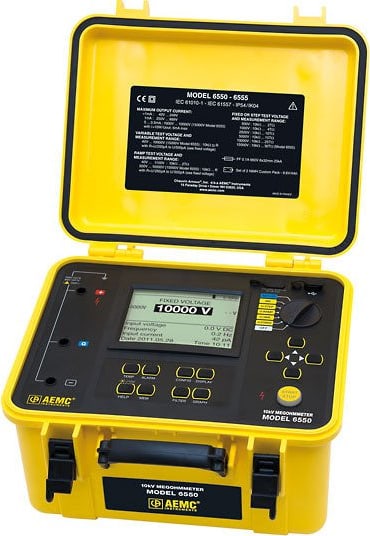

| AEMC 2130.31-Refurb Specifications |
| MODELS |
6550 |
6555 |
| Insulation tests |
Test Voltage
500V
1000V
2500V
5000V
10,000V |
10kΩ to 2000GΩ (2TΩ)
10kΩ to 4000GΩ (4TΩ)
10kΩ to 10,000GΩ (10TΩ)
10kΩ to 15,000GΩ (15TΩ)
10kΩ to 25,000GΩ (25TΩ) |
| 15,000V |
- |
10kΩ to 30,000GΩ (30TΩ) |
| Fixed Test Voltages |
500/1000/2500/5000/ 10,000V |
500/1000/2500/5000/10,000/15,000V |
| Variable Voltages |
Variable: 40V to 10kV Three user-programmable voltage schemes |
Variable: 40V to 15kV Three user-programmable voltage schemes |
| Ramp Mode |
Programmable ramps: start voltage/end voltage/duration |
| Ramp Configuration Range |
40 to 1100V/500 to 10,000V |
40 to 1100V/500 to 15,000V |
| Step Mode |
Up to 10 steps (voltage and duration configurable for each step) |
| Voltage Measurement After Test |
0 to 2500V AC ; 0 to 4000V DC |
| Capacitance Measurement |
0.05 to 9.999µF/10.00 to 49.99µF |
| Leakage Current Measurement |
0 to 8mA |
| Discharge After Test |
Yes/Automatic |
| Additional Test Stop Modes |
| I-Limit |
Programmable: 0.2 to 5mA |
| Early-Break |
di/dt |
| Timer |
Up to 99 minutes 59 seconds |
| Burn Mode |
Constant testing |
| Ratio Calculation |
PI, DAR, DD |
| Calculation of R at ref. T° |
Yes |
| Measurement Display Filter |
3 filters with 3 possible time-constants |
| Graphs on Display |
R(t)+v(t); i(t); i(v) |
| Storage |
256 registers, stores 80,000 points: R, V, I, and date |
| Communication |
USB optically-isolated port |
| PC Software |
DataView ® software |
| Power Supply |
NiMH rechargeable batteries, two 9.6V 4Ah battery packs charging by an external voltage: 90 to 260V; 50/60Hz |
| Battery Charging |
Battery charging allowed while performing insulation measurements |
| Electrical Safety |
1000V CAT IV; IEC61010-1 and IEC 61557 |
| EMC, Mechanical Protection, Altitude |
EN 61326-1, IP54, 3000m |
| Dimensions/Weight |
13.39 x 11.81 x 7.87" (340 x 300 x 200mm)/approx. 6.2kg (excluding accessories) |
