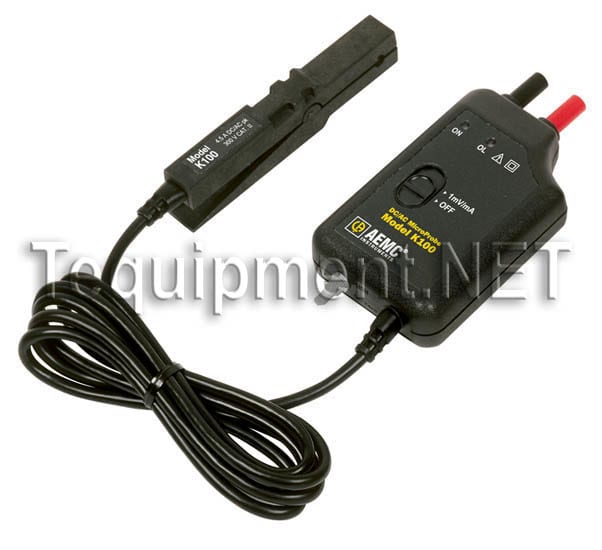

| AEMC 1200.67-Sale Specifications |
| Operating Range |
| Current Range |
0 to ±4.5ADC; 0 to 3Arms. (sinusoidal); 0 to 2A peak, square and step-discontinuous waveforms |
| Frequency Range |
DC to 2kHz (@ -3dB sine) |
| Output Noise |
< 100mV, DC to 3kHz |
| Overload Indication |
Red LED indicates momentary or continuous overload |
| Probe Impedance |
<1mH |
| Reference Conditions |
23°C ±3°, 20 to 75% RH, battery voltage 9V ±0.1V; earth's magnetic field < 40A/m; absence of AC fields; input impedance of display device ³1MW/100 pF; DC or sinusoidal AC current 45 to 65Hz |
| Working Voltage |
300V per IEC 1010-1 Cat. II |
| Influence of Adjacent Conductor |
| Range Value |
50Hz at 23 mm of the probe |
| Influence of Adjacent Conductor |
< 100mA/A |
| Output Signal |
| Output Signal |
1mV/mA |
| Resolution |
| Range |
DC / AC |
| Resolution |
50µA typical / 100µA typical |
| Accuracy |
| Current Range |
DC / AC |
| Accuracy % of Reading |
1% Reading ± 200mA / 2% Reading ± 200mA |
| Mechanical Specifications |
| Altitude |
Operating: 0 to 2000m; Non-operating: 0 to 12km |
| Battery Life |
20 hours approximately |
| Cable (Sensor to Electronics) |
5 ft (1.5 m) |
| Colors |
Dark gray |
| Dimensions |
Probe: 4.4 x 0.6 x 1.0" (111 x 15 x 25mm); Electronic Module: 4.9 x 2.5 x 1.1" (124 x 64 x 28mm) |
| Drop Test |
1.0m on 38mm of oak on concrete; Test according to IEC 68-2-32 |
| Low Battery |
Green LED on when battery voltage ³6.5V |
| Maximum Cable Diameter |
3/16", 0.180" (4.5mm) |
| Mechanical Shock |
100g (IEC 68-2-27) |
| Operating Temperature |
-14° to 131°F (-10° to 55°C) |
| Operating Relative Humidity |
< 95% @ £35°C 75% @ 55°C |
| Output |
Two 4mm safety banana jacks, standard 3/4" (19mm) spacing |
| Power Supply |
9V Alkaline, NEDA 1604A, 6LR61 or IEC 6 LF22 |
| Protection Index (IP) |
IP 40 (IEC 529) |
| Storage Temperature |
-40° to 176°F (-40° to 80°C) |
| Vibration |
Test per IEC 68-2-6 |
| Vibration |
| Range Value |
5 to 15Hz / 15 to 25Hz / 25 to 55Hz |
| Vibration |
Amplitude: 1.5 mm per IEC 68-2-6 / Amplitude: 1 mm per IEC 68-2-6 Amplitude : 0.25 mm per IEC 68-2-6 |
| Weight |
0.56 lbs |
| Zero Adjustment |
10 turn potentiometer |
| External Influences |
| Influence of Temperature |
£1000 ppm. /°K or 1%/10°C |
| Safety Reference Specifications |
| Safety Ratings |
EN 61010-2-32 |
| Agency Approvals |
CE Mark |
