• 60 hours battery life (w/o backlight) using AA alkaline batteries
• Quick startup and connect: 15 seconds!
• Update new device profiles and firmware via the Internet – YHC4150X is never out of your hands
• Dongle coordinates AC power adapter and serial communication
• Clone / Upload / Download configurations
• Off-line mode for developing / reviewing configurations
• Document and store more than 200 configurations
• As-found / As-left history with DMS software

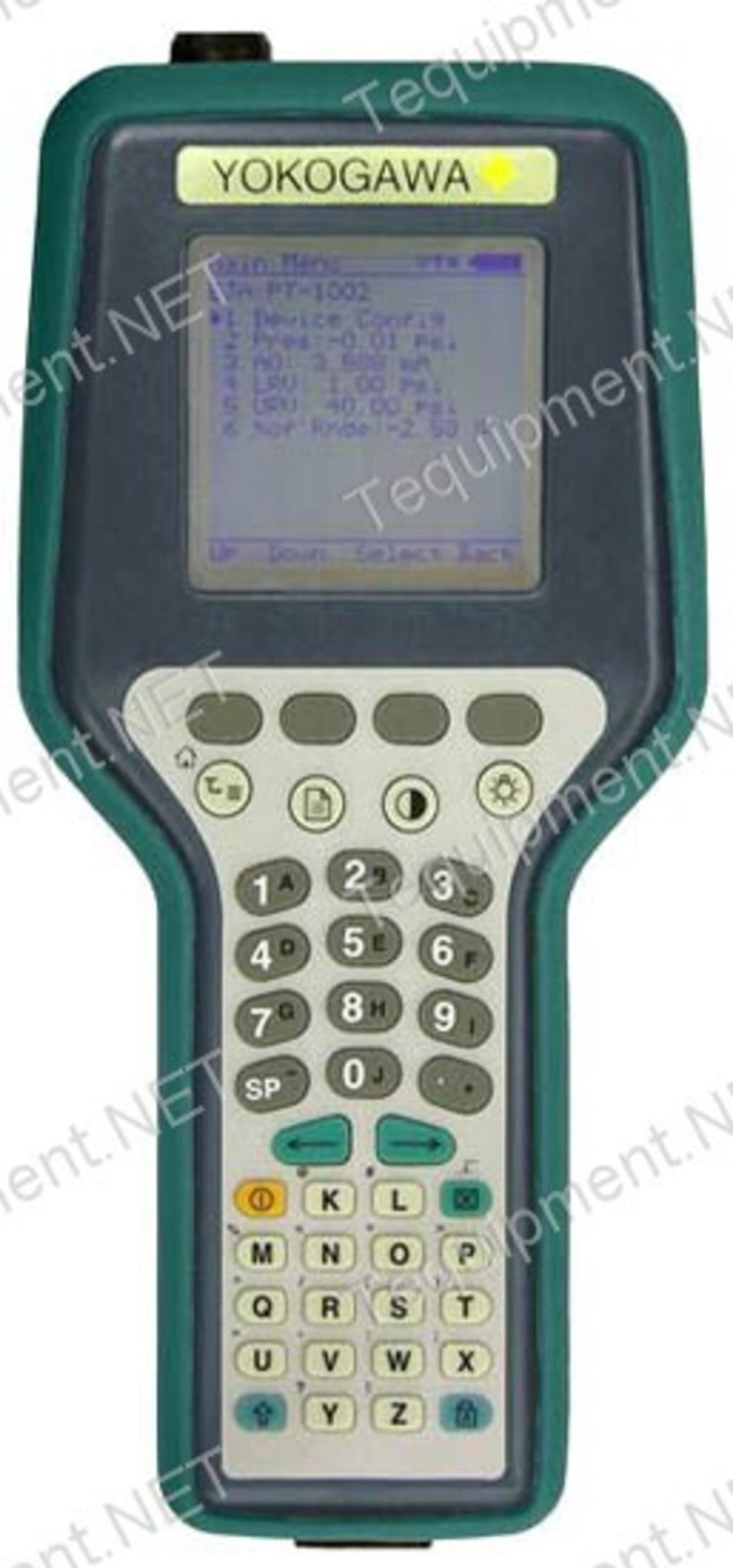

• 13-line, 128 x 128 pixel graphic, backlit display
• Full alpha-numeric keypad
• Edit directly from Review/Edit mode
• Quick Menu access key
• HART® menu Home key
• Dedicated text edit keys
• Programmable lock-out settings
• Contrast key for direct adjustment from any mode
• Elastic hand strap and adjustable shoulder strap
• Thumb keys (left hand) for menu Up, Down, and Select
• Custom “use-in-place” soft case with lead kit compartment

Applications

Use the YHC4150X to:

• Commission devices
  • Step-by-step configuration
  • Document as-left configuration
• Operations
  • Reconfiguration for process changes
  • Reconfiguration for batch runs
  • Document as-found and as-left configurations
  • Populate DMS database software
• Device Maintenance
  • Troubleshoot devices with HART®
  • View device error messages
  • Clone devices to commission replacements
