Yokogawa MY10-04 Analog Insulation Testers, 500V/1000M ohm

Name: Yokogawa MY10-04 Analog Insulation Testers, 500V/1000M ohm
Brand: Yokogawa
SKU: YokogawaMY10-04
Price: 329.00 USD
Availability: InStock

0 reviews | Model: Yokogawa MY10-04

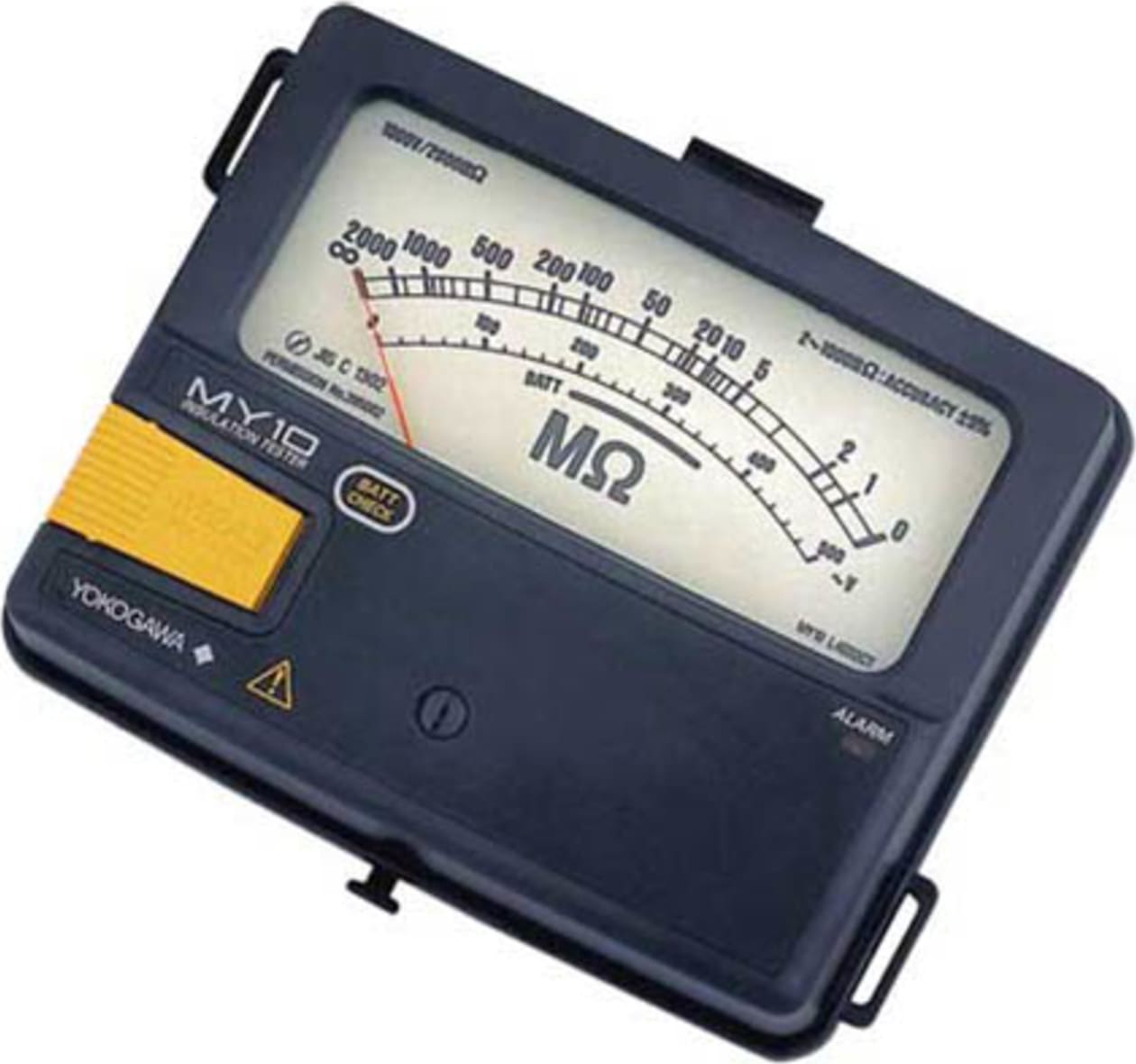

Yokogawa MY10 Series Analog Insulation Tester

Compare

Analog 500V/1000M ohm

Analog models with single rating
MY10-04:500V/1000MΩ
AC voltage measurement
Automatic discharge
A wide choice of accessories-Designed for shared use with the MY40

View Product Details

List Price: $329.00

In Stock:

View Payment Options

Recommended for you

Yokogawa MY10 Series Analog Insulation Testers

Yokogawa-MY10-Series-Analog-Insulation-Tester-tn

First effective resistance measuring range; ±5% of reading
Second effective resistance measuring range; ±10% of reading
Infinite and zero scale values; 0.7% max. of scale length
AC voltage; ±10% of maximum scale value
No-load voltage; 130% max. of rated voltage

The Yokogawa MY10 Series Analog Insulation Testers offer a wide range of AC voltage from 0 to 500V. The MY10 Series has a battery life of approximately 10 hours when continuously operated on manganese-oxide batteries with the pointer pointing to the central scalevalue.

Additional Functions - Model MY10-04

Automatic discharge function
- If the object under test remains electrified after the MEAS switch is turned off, the tester lets you know by turning on the LED lamp. If you leave the tester connected to the electrified object, the tester automatically begins to discharge electricity and then finishes discharging-the LED lamp comes on and then goes out.
- When the object under test is capacitive and electrified, the tester lets you know by turning on the LED lamp. When left connected to the object, the tester automatically discharges electricity, thus preventing possible electric shock or spike noise at power-on.
Battery check (BAT mark on the scale plate)

External Dimensions

Yokogawa MY10-04 General Specifications
Rating	500V/1000MΩ
Effective Measuring Range	0.5-1000MΩ
Central Scale Value	20MΩ
AC Voltage Measurement	0 to 500 V
Lower Limit	1MΩ
Rated Current	0.5-0.6 mA
Approx. Overall Scale Length	107 mm
Battery Life	Approx. 10 hours when continuously operated on manganese - oxide batteries with the pointer pointing to the central scale value.
Batteries	Four AA (R6P) batteries
Approx. Width	125 mm
Approx. Height	103 mm
Approx. Depth	53 mm
Approx. Weight	500 g
Compliance	EN61010-1:1993; EN61010-2-31:1995 (Overvoltage Category III, Pollution Degree 2 installations for indoor use)
Standard Test Conditions
Ambient Temperature/Humidity Ranges	23 ±5 /45-75% RH
Position of Use	Horizontal (5° max. of angle of inclination)
Battery Voltage	Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)
Tolerance Mentioned Conditions	Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Tech Specs

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
Maximum Insulation Resistance	1000 M Ohms (1 G Ohms)
Minimum Insulation Resistance	0.5 M Ohms (0.0005 G Ohms)
Variable Incremental Voltage	No
Continuity Test	No
Live Circuit Voltage Detection	Yes
Timer	No
Test Equipment General Attributes
Unique Features	Automatic discharge function
Warranty	12 MONTHS (1 YEARS)
Product Weight	400 GRAMS (0.882 LBS) Product Weight includes batteries
Product Height	53 MM (2.09 IN)
Product Length	125 MM (4.92 IN)
Product Width	103 MM (4.06 IN)
Data Logging	No
HTS/Schedule B Number	9030.33.0040
ECCN Number	EAR 99
Country of Origin	Japan
