Yokogawa CA71/SP1 Handy Calibrator with Accessories

0 reviews | UPC: 643765528213 | Model: Yokogawa CA71/SP1

Includes CA71, communication cable, data logging software, 120V power supply, instrument case with magnetic backing, and NIST traceable certificate, and AC adapter plugs

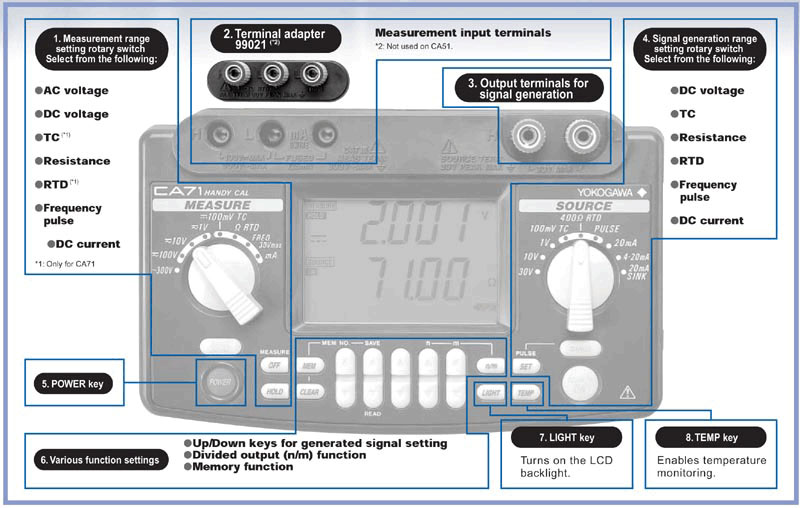

  • Simultaneous signal generation and measurement capability: The CA71 lets you handle regular tests on TCs, RTDs and various other types of sensors and instruments, as well as operation checks when a problem has occurred (TC and RTD measurement functions are CA71 only.)
  • AC voltage (including supply voltage) measurement capability: In cases where numerous signal converters and other devices are mounted on a rack or panel, the
  • Handy Calibrator can be used to check the input and output signals of each device, while simultaneously checking the power supply.
  • A wide array of useful functions:
    -Source: Values set in steps of 4-20 mA, 24V DC Power supply to transmitter
    -Online communication (CA71 only): RS-232C-compliant optically isolated interface
    -Divided output (n/m) function: Output settings are divided (n/m), eliminating the need for bothersome calculations for percentage output
    -Auto step function: Changes the output value in step form based on the setting from the divided output (n/m) functions. Changes can be generated automatically every 10% or 25%
    -Sweep functions: Linearly raises or lowers the output. The raising/lowering time can be set to either 16 or 32 seconds
    -Memory function: Source values and measurements forming individual value sets can be saved to or loaded from the Handy Calibrator's internal memory (maximum 50 value sets)
    -Easy operation: The Handy Calibrator incorporates rotary switches for simple handing. Just open the carrying case cover and connect the cables, and you're ready to take measurements
