Yokogawa CA150 Deluxe Kit

5 (1 Review) | Model: Yokogawa CA150/SP1

YokogawaCA150_SP1

Compare

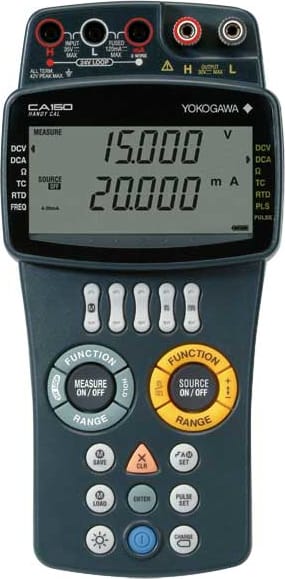

Handy Calibrator with /SP1 Adds Accessories 94010-D AC Adapter, 94015 NiMH Battery, 93027 Main Body Case with strap

Multi-Functional Hand-Held Calibrator
Easy-to-hold Vertical Body: Designed for intuitively easy operation, individual functions are accessed directly by pressing assigned keys.
Highly Accurate: Within 0.02% of the DC voltage range for source and measure
Sink function: Receives current from the power supply up to 28VDC while transmitting milliampere DC signals to the loop
Check the input and output signals of each device, while simultaneously checking the power supply.
Source and measurement can be performed simultaneously.
Large-screen display on an easy-to-hold vertical body.
Loop power supply function (24 VDC at a load of max 22 mA) It is possible to measure current in the mA range while supplying power.
Sweep functions: Three types of continuous outputs: Step sweep function, Linear sweep function and Program sweep function.

View Product Details

List Price: $2,660.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Yokogawa CA150/SP1

Yokogawa 93026 Carrying case for CA150

(0)

In Stock! Contact us for price

Call Us

Yokogawa 93027 Main Body case for CA150

(0)

In Stock! Contact us for price

Call Us

Yokogawa B9108XA 2406, MY10, MY40, CA11, CA12, CA51, CA71 and CA150 Accessory Case

Catalog: B9108XA

(0)

In Stock! Contact us for price

Call Us

Yokogawa 739874-D Power Card with UL/CSA Standard, 125V

Catalog: 739874-D

(0)

In Stock! Contact us for price

Call Us

Yokogawa 98020 Signal Generating Leads, One Red, Two Black

(0)

In Stock! Contact us for price

Call Us

Yokogawa 99022 Terminal Adapter for CA150

(0)

In Stock! Contact us for price

Call Us

Yokogawa B9108WA RJC Sensor

Catalog: B9108WA

(0)

In Stock! Contact us for price

Call Us

Yokogawa RD031 Test Leads

(0)

In Stock! Contact us for price

Call Us

The Yokogawa CA150 simultaneously signals source and measurement operations at the same time, providing an accuracy within 0.02% of the DC voltage range for both functions. With the CA150 you can perform operational checks, regular inspections, maintenance and diagnostics on equipment such as thermocouples, RTDs, process instruments, transmitters, thermostats and signal converters.

Source and measurement functions include DC voltage, DC current, resistance, frequency, and temperature (from thermocouple or RTD sensors) that can be carried out simultaneously, making it possible to measure current in the milliampere range while providing a loop power supply of up to 24VDC at up to 22mA load. Individual functions can be directly accessed by pressing assigned keys while the large-screen display shows source, measurement parameters and units.

Standard Accessories:

98020 Lead cable for source. One set of 1 red and 2 black cables. Approx. 1.7 m
RD031 lead cable for measurement.One set of 1 red and 1 black cables. Approx. 1.0 m
93026 Carrying case with room for storage of: Lead cables for source/measurement, terminal adapter, 6 spare batteries, fuse, AC adapter and Instruction Manual
99022 Terminal adapter used for temperature measurement

/SP1 Adds Additional Accessories:

94010-D AC adapter
94015 NiMH battery
93027 Main body case with strap

NOTE: Calibration Certificate is not included. Order separately

General
Communication functions	Serial interface RS232 D-Sub 9-pin connector
Memory functions	Data can be stored and loaded in setting memory (setting data)and data memory (source/measurement).
Power supply	6 AA size alkaline batteries AC adapter (sold separately) or dedicated NiMH battery (sold separately) AC adapter specification-100 to 240 VAC, 50/60 Hz, 1.4 A OUTPUT: 12 VDC, 3 A
Battery life Conditions	Simultaneous Source/measurement Output of 5 V DC/10 kω or more Size AA alkaline batteries When 6 batteries are used: Approx. 8 hours When NiMH battery is used: Approx. 10 hours
Auto power-off	Approx. 10 minutes; it can be canceled by setting.
Insulation resistance	Between input terminal and output terminal: 500 VDC, 50 Mω or more
Withstand voltage	Between measurement terminal and generation terminal-350 VAC, 1 minute
Operating temperature/humidity range	0 to 40°C, 20 to 80%RH (no condensation)
Storage temperature range	-20 to 60°C 90%RH or less (no condensation)
External dimensions	Approx. 251 x 124 x 70 mm
Weight	Approx. 1000 g
Accessories	Lead cable for generation: 1 set Lead cable for measurement: 1 set Carrying case: 1 Terminal adapter: 1 Size AA battery:6 Instruction Manual: 1 Fuse for measurement: 1 (spare)
Conforming Standrads	Safty EN61010-1 EMC EN 61326 Class B;EN 55011 Class B Group1 EN 61000-3-2; EN 61000-3-3, EN61326

Source Unit
	Range	Resolution	Source range	Accuracy	Remarks
DC voltage	100mV	1uV	0 to ±110.000mV	±(0.02%+10uV)	Output resistance: Approx. 6.5ω
	1V	10uV	0 to ±1.10000V	±(0.02%+0.05mV)	Maximum output: 10 mA, output resistance: Approx. 30 mω
	10V	0.1mV	0 to ±11.0000V	±(0.02%+0.5mV)	Maximum output: 10 mA, output resistance: Approx. 30 mω
	30V	10mV	0 to ±30.00V	±(0.02%+10mV)	Maximum output: 10 mA
DC current mA SINK	20mA	1uA	0 to +22.000mA	±(0.025%+3uA)	Maximum load: 24 V
DC current mA SINK	20mASINK	1uA	0 to -22.000mA	±(0.025%+6uA)	External power supply: 5 to 28 V
OHM	500ω	0.01ω	0 to 550.00ω	±(0.02%+0.1ω)	Excitation current: 1 to 5 mA or maximum output: 2 V *2
	5kω	0.1ω	0 to 5.5000kω	±(0.05%+1.5ω)	Excitation current: 0.1 to 0.5 mA or maximum output: 2 V
	50kω	1ω	0 to 55.000kω	±(0.1%+50ω)	Excitation current: 0.01 to 0.1 mA or maximum output: 2 V
*RTD 1**	PT100 JPT100	0.1°C	-200.0 to 850.0°C -200.0 to 500.0°C	±(0.025%+0.3°C)	Excitation current: 1 to 5 mA *2
Frequency/pulse	100Hz	0.01Hz	1.00 to 110.00Hz	±0.05Hz	Output voltage: +0.1 V to +11 V (Zero-base waveform) Amplitude accuracy: ±10% Max. load current: 10 mA Pulse cycle: 1 to 60000 cycles *4
	1000Hz	0.1Hz	90.0 to 1100.0Hz	±0.5Hz
	10kHz	0.1kHz	0.9kHz to 11.0kHz	±0.1kHz
	50kHz	1kHz	9kHz to 50kHz	±1kHz

	CPM	0.1CPM	1.0 to 1100.0CPM	±0.5CPM
1 Depending on the internal settings, either ITS-90 or IPTS-68 can be selected. 4 The same ranges of frequencies and Temperature coefficient: Accuracy above x (1/10)/°C The temperature coefficient is added in the ranges from 0 to 18°C and from 28 to 40°C

Measurement Unit
	Range	Resolution	Source range	Accuracy	Remarks
DC voltage	500mV	10uV	0 to ±500.00 mV	±(0.02%+50uV)	Input resistance: 1000 Mω or more
	5V	0.1mV	0 to ±5.0000V	±(0.02%+0.5mV)	Input resistance: Approx. 1 Mω
	35V	1mV	0 to ±35.000V	±(0.025%+5mV)	Input resistance: Approx. 1 Mω
	30V	10mV	0 to ±30.00V	±(0.02%+10mV)	Maximum output: 10 mA
DC current	20mA	1uA	0 to ±20.000mA	±(0.025%+4uA)	Input resistance: Approx. 20ω or less
DC current	35V	1mV	0 to ±35.000V	±(0.025%+5mV)	Input resistance: Approx. 20ω or less
OHM	500ω	0.01ω	0 to 500.00ω	±(0.055%+0.075ω)	Measurement current: Approx. 1 mA
	5kω	0.1ω	0 to 5.5000kω	±(0.055%+0.75ω)	Measurement current: Approx. 100 µA
	50kω	1ω	0 to 50.000kω	±(0.055%+10ω)	Measurement current: Approx. 10 µA
*RTD 5**	PT100 JPT100	0.1°C	-200.0 to 850.0°C -200.0 to 500.0°C	±(0.05%+0.6°C)	*5 At three-wire type measurement
Pulse	100Hz	0.01Hz	1.00 to 110.00Hz	±2 dgt	Maximum input: 30 V Sensitivity: 0.5 Vp-p Input resistance: 100kω Contact input: Up to 100 Hz
	1000Hz	0.1Hz	1.0 to 1100.0Hz	±2 dgt
	10kHz	0.001kHz	0.001 to 11.000kHz	±2 dgt
	CPM	1kHz	0 to 100000CPM

	CPH	1CPH	0 to 100000CPH
Loop power supply	24V LOOP			24V±2V	Maximum load current: 22 mA
Temperature coefficient: Accuracy above x (1/10)/°C The temperature coefficient is added in the ranges from 0 to 18°C and from 28 to 40°C

Tech Specs

Process / Calibration/Multifunction Calibrators Template
Type	Hand Held
Measure Voltage	Yes
Simulate Loop Voltage	Yes
Loop Voltage Max	24 V
Voltage Measurement Max	35 V
Voltage Measurement Min	0 V
Source/Simulate DC Current	Yes
Measure DC Current	Yes
Current Measurement Max	100 mA
Current Measurement Min	0 mA
Source/Simulate Resistance	Yes
Measure Resistance	Yes
Resistance Measurement Max	50 K Ohms (50000 Ohms)
Resistance Measurement Min	0 Ohms
Source/Simulate Frequency	Yes
Measure Frequency	Yes
Frequency Measurement Max	11 kHz (11000 Hz)
Frequency Measurement Min	1 Hz
Measure RTD	Yes
Measure Thermocouples	Yes
Source/Simulate Pressure	No
Pressure Modules Available	No
Hart Compatible	No
FieldBus Compatible	No
Data Log Functions	Current, Frequency, Resistance, Temperature, Voltage
Backlighted	Yes
Graphical Screen	No
Max Number of Readings Stored	100
Types RTD/Thermocouples Accepted	B, E, J, K, L, N, R, S, T, U
Intrinsically Safe(Calibrators)	No
Test Equipment General Attributes
Warranty	12 MONTHS (1 YEARS)
Safety Approval	CSA
Product Weight	1000 GRAMS (2.20 LBS) Product Weight includes AA batteries
Product Height	70 MM (2.76 IN)
Product Length	251 MM (9.88 IN)
Product Width	124 MM (4.88 IN)
Data Logging	Yes
HTS/Schedule B Number	9030.39.0100
ECCN Number	EAR 99
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	Japan
