Yokogawa 322610 Leakage Current Tester (AC/DC)

Name: Yokogawa 322610 Leakage Current Tester (AC/DC)
Brand: Yokogawa
SKU: Yokogawa322610
Price: 1010.00 USD
Availability: InStock

0 reviews | UPC: 638317150653 | Model: Yokogawa 322610

Compare

Leakage Current Tester (AC/DC) (Tokuchu only)

Three input resistance ranges - 1,1.5 and 2 kΩ
Four functions - AC current, DC current. DC + AC current and AC voltage measurements
± 2.5% full scale accuracy
100µA full scale value
Shockproof indicator using taut band movement
Built-in overload protection circuit
Handy and easy to carry
Shielded case, resistant to high-frequency fields

View Product Details

Your Price: $1,010.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Yokogawa 322610 Accessories

Choose a Category

General Accessories

for the Yokogawa 322610

Yokogawa 322710 Test Box for model 3226

Catalog: 322710

(0)

In Stock!

Add to Cart

Yokogawa 3226 Universal Leakage Current Tester

100µA full scale value
Shockproof indicator using taut band movement
Built-in overload protection circuit
Handy and easy to carry
Shielded case, resistant to high-frequency fields

Model 3226 is a special milliammeter for measuring leakage current of electrical appliances. The input resistance can be selected from among 1, 1.5 and 2 kΩ for easy measurement.

Model 3226 is usable for product inspection on production lines and for experimental measurement in research and design activities. Model 3227 Test Box is available for the convenience of measurement.

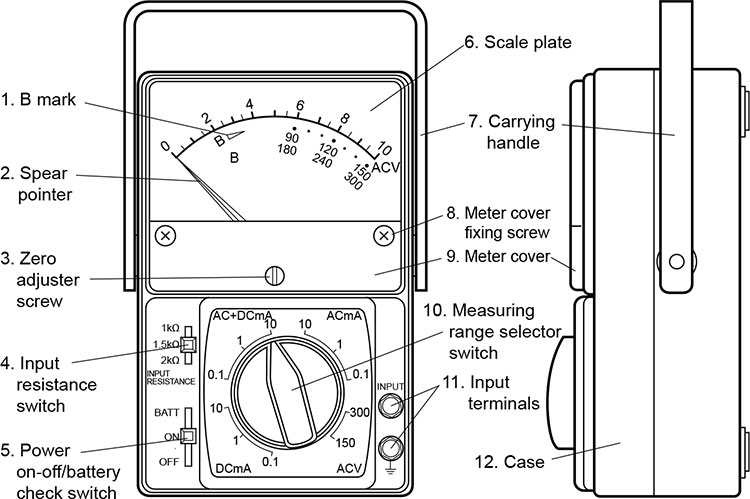

Parts Identification and Function

B mark: The battery is usable if the meter pointer is within this range when the BATT/ON/OFF switch is set to the BATT position.
Spear pointer
Zero adjuster screw: To be turned with a screwdriver for readjusting zero indication of the pointer.
lnput resistance switch: Selects one of the three input resistances according to the applicable standard.
Power on-off/ battery check switch
Scale plate: The scale is double graduated in mA and AC V.
Carrying handle
Meter cover fixing screw
Meter cover
Measuring range selector switch: To be set to an appropriate position according to the measuring item and range.
Input terminals: Accessory H-lead is to be connected to the “INPUT” terminal, and L-lead to the Yokogawa322610-01 (ground) terminal.
Case

Yokogawa 322610 General Specifications
Ranges	DC current - 0.1, 1. 10mA, AC current - 0.1, 1, 10mA, (DC + AC) current - 0.1, 1, 10mA, AC Voltage - 150, 300V (50 and 60 Hz)
Accuracy	±2.5% of full scale value on current and voltage range
Input Impedance	Current range: 1kΩ 1.5kΩ , and 2kΩ Voltage range; More than 100kΩ
Frequency Range	20 Hz to 5 kHz
Power Source	Two 9V dry cells (JIS C8501 Type 006P or NEDA 6F22), Continuous Operating Time; Approx. 290 hours
Overload Protection	Up to 30mA AC for one minute will not damage instrument oh current ranges
Temperature Influence	±0.2% of rated value/°C against temperature variation of 20± 10°C
Insulation Resistance	More than 20 MΩ at 500 V DC between terminals and case
Dielectric Strength	1500V AC 50Hz for one minute between electrical circuit and case
Dimensions	Approx. 190 x 124 x 90 mm (7.48 x 4.88 x 3.54") not including handle
Weight	Approx. 1.0 kg (2.2 lbs)

Safety Testing / Surge Testing/Leakage Current Testers Template
Maximum Current AC	10 mA (0.01 A)
Maximum Current DC	10 mA (0.01 A)
Minimum Current AC	0.1 mA
Minimum Current DC	0.1 mA
Maximum Voltage AC	300 V
Accuracy	±2.5% of full scale
Test Equipment General Attributes
Unique Features	4 Measurement Functions: AC Current, DC Current, DC+AC Current, AC Voltage Features: High sensitivity (Accuracy: ±2.5% of full scale)1111
Warranty	1 YEARS
Product Weight	1 KILOS (2.20 LBS)
Calibration Included	Factory Calibration
Power Supply Voltage	Battery Powered
Shipping Height	90 MM (3.54 IN)
Shipping Length	190 MM (7.48 IN)
Shipping Width	124 MM (4.88 IN)
