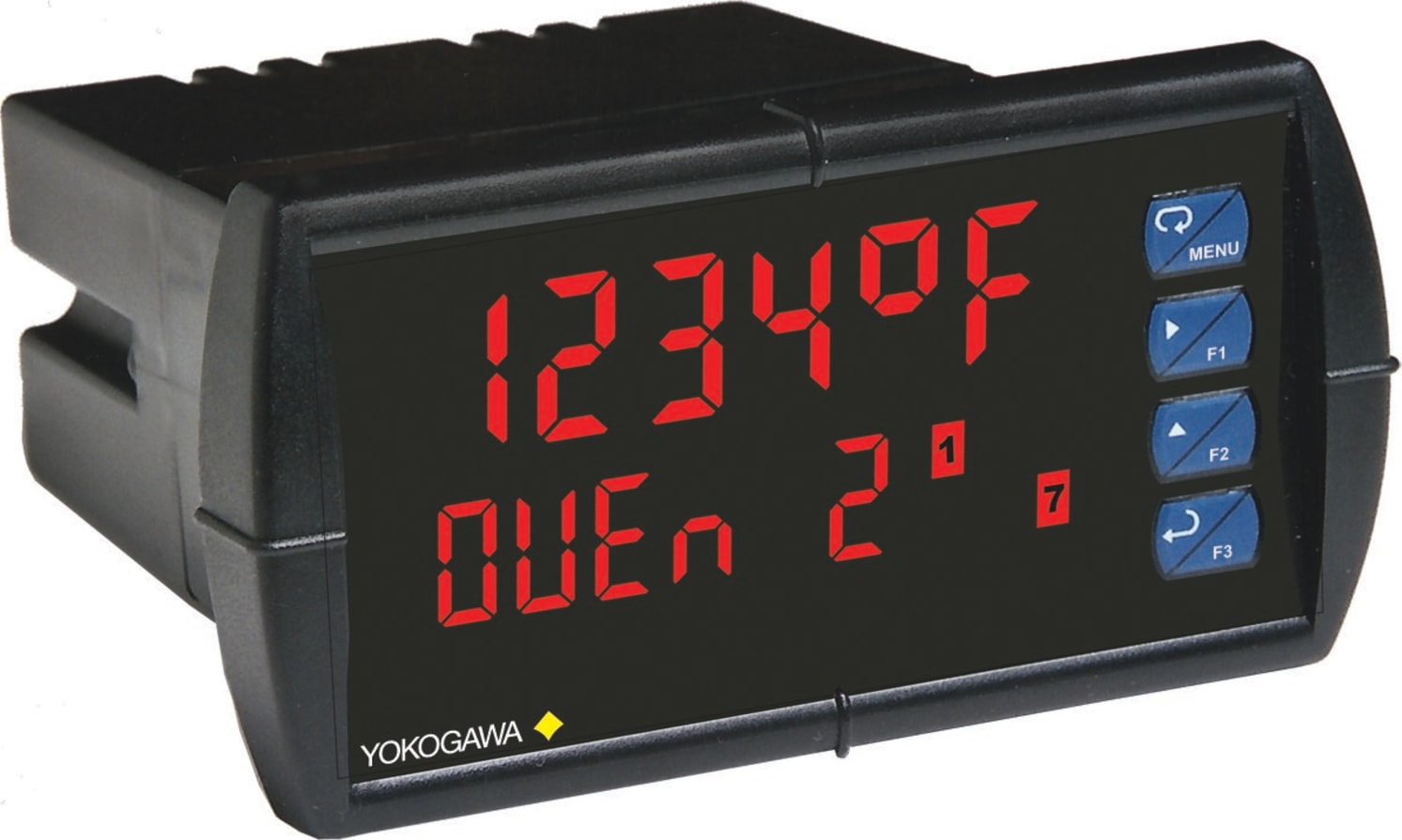

| Yokogawa YPP7000 General Specifications |
| Display |
Upper display: 0.60" (15 mm) high.
Lower display: 0.46" (12 mm) high. Both displays are 6-character (-99999 to 999999), red LEDs with leading zero blanking. Temperature value is four or five-digit F/C, based on configuration. |
| Resolution |
1° (up to four digits) or 0.1° (up to five digits) |
| Display Intensity |
Eight intensity levels |
| Display Update Rate |
5/second (200 ms) |
| Front Panel |
NEMA 4X, IP65 |
| Programming Methods |
Four front panel buttons, digital inputs, PC and PROPLUS software, Modbus registers, or cloning using Copy function. |
| Noise filter |
Programmable from 2 to 199 (0 will disable filter) |
| Filter Bypass |
Programmable from 0.1 to 99.9% of span |
| Recalibration |
Calibrated at the factory. Recalibration is recommended at least every 12 months. |
| Max/Min Display |
Max / min temperature readings are stored until reset by the user or until power to the meter is cycled. |
| Password |
Three programmable passwords restrict modification of programmed settings.
Pass 1: Allows use of function keys and digital inputs.
Pass 2: Allows use of function keys, digital inputs and editing set/reset points.
Pass 3: Restricts all programming, function keys, and digital inputs. |
| Non-Volatile Memory |
All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost. |
| Power Options |
85-265 VAC 50/60 Hz, 90-265 VDC 20 W max, or jumper selectable 12/24 VDC ±10%, 15 W max. |
| Fuse |
Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse. |
| Normal Mode Rejection |
Greater than 65 dB at 50/60 Hz |
| Isolation |
4 kV input/output-to-power line. 500 V input-to-output |
| Environmental |
Operating temperature range: -20 to 65°C.
Storage temperature range: -40 to 85°C.
Relative humidity: 0 to 90% non-condensing. |
| Connections |
Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters. |
| Enclosure |
1/8 DIN, high impact plastic, UL 94V-0, color: black |
| Mounting |
1/8 DIN panel cutout required: 3.622" x 1.772" (92 mm x 45 mm). Two panel mounting bracket assemblies are provided. |
| Tightening Torque |
Screw terminal connectors: 5 lb-in (0.56 Nm) |
| Overall Dimensions |
4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D) |
| Weight |
9.5 oz (269 g) |
| UL File Number |
UL & c-UL Listed. E348677; 508 Industrial Control Equipment. |
| Warranty |
3 years parts & labor |
| Input |
Thermocouple J, K, T, E, R, S, B, N, C; RTD 100 Ω platinum (0.00385 & 0.00392 curves), 10 Ω copper, 120 Ω nickel, 1000 Ω platinum |
| Input Impedance |
Greater than 100 kΩ |
| Offset Adjust |
User programmable offset adjust ±50.0 degrees |
| Temperature Drift |
±2°C maximum from 0 to 65°C ambient temperature;±4°C maximum from -20 to 0°C ambient temperature |
| Sensor Break |
Display flashes “Open”, relays can be programmed to go “On”, “Off”, or to “Ignore” (detected as an upscale condition). |
| Averaging |
Up to 10 RTDs connected in parallel can be averaged. |
| Accuracy & Range |
See table below.
| Type |
Range (°F) |
Range (°C) |
Accuracy |
| J |
-200 to 2000 |
-129 to 1093 |
±1°C |
| K |
-200 to 2400 |
-129 to 1316 |
±1°C |
| T |
-200 to 752 |
-129 to 400 |
±1°C |
| E |
-200 to 1800 |
-129 to 982 |
±1°C |
| R |
-50 to 3000 |
-46 to 1649 |
±2°C |
| S |
-50 to 3000 |
-46 to 1649 |
±2°C |
| B |
752 to 3300 |
400 to 1816 |
±2°C |
| N |
-100 to 2300 |
-73 to 1260 |
±2°C |
| C |
32 to 4100 |
0 to 2260 |
±2°C |
| 10 Ω |
-328 to 500 |
-200 to 260 |
±0.1°C |
| 100 Ω |
-328 to 1562 |
-200 to 850 |
±0.4°C |
| 120 Ω |
-110 to 500 |
-79 to 260 |
±0.1°C |
| 1000 Ω |
-328 to 900 |
-200 to 482 |
±0.4°C |
|
| Rating |
2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 watts) @ 125/250 VAC for inductive loads such as contactors, solenoids, etc. |
| Noise Suppression |
Noise suppression is recommended for each relay contact switching inductive loads. |
| Deadband |
0-100% of span, user programmable |
| High or Low Alarm |
User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turned off). |
| Relay Operation |
automatic (non-latching), latching (requires manual acknowledge), sampling (based on time), pump alternation control (2 to 8 relays), Off (disable unused relays and enable interlock feature, manual on/off control mode). |
| Time Delay |
0 to 999.9 seconds, on & off relay time delays. Programmable and independent for each relay. |
| Fail-Safe Operation |
Programmable and independent for each relay.
Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state. |
| Auto Initialization |
When power is applied to the meter, relays will reflect the state of the input to the meter. |
| Output Source |
PV (temperature), max, min, set points 1-8, manual control setting, or Modbus input |
| Scaling Range |
1.000 to 23.000 mA for any display range |
| Calibration |
Factory calibrated 4-20 mA output |
| Accuracy |
± 0.1% of span ± 0.004 mA |
| Temperature Drift |
0.4 μA/°C max from 0 to 65°C ambient, 0.8 μA/°C max from -40 to 0°C ambient
Note: Analog output drift is separate from input drift. |
| Isolated Transmitter Power Supply |
Terminals I+ & R: 24 VDC ± 10% @ 40 mA maximum, may be used to power the 4-20 mA output or other devices. Present on both AC & DC powered units. |
| External Loop Power Supply |
35 VDC maximum |
| Output Loop Resistance |
| Power supply |
Minimum |
Maximum |
| 24 VDC |
10 Ω |
700 Ω |
| 35 VDC (external) |
100 Ω |
1200 Ω |
|
| Protocol |
Modbus ® RTU |
| Meter Address/Slave ID |
1 - 247 |
| Baud Rate |
300 - 19,200 bps |
| Transmit Time Delay |
Programmable between 0 and 199 ms |
| Data |
8 bit (1 start bit, 1 or 2 stop bits) |
| Parity |
Even, odd, or none with 1 or 2 stop bits |
| Byte-to-Byte Timeout |
0.01 - 2.54 seconds |
| Turn Around Delay |
Less than 2 ms (fixed)
Note: Refer to the YPP6000/YPP7000 Modbus Register Tables located at www.yokogawa-usa.com for details. |
| Channels |
4 digital inputs & 4 digital outputs per module |
| System |
Up to 2 modules for a total of 8 inputs & 8 outputs |
| Digital Input Logic |
High: 3 to 5 VDC Low: 0 to 1.25 VDC |
| Digital Output Logic |
High: 3.1 to 3.3 VDC Low: 0 to 0.4 VDC |
| Source Current |
10 mA maximum |
| Sink Current |
1.5 mA minimum |
| +5 V Terminal |
To be used as pull-up for digital inputs only. |
| Relays |
Four Form A (SPST) rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 watts) @ 125/250 VAC for inductive loads. |
