| Yokogawa YPP6100 General Specifications |
| Display |
Upper display: 0.60" (15 mm) high.
Lower display: 0.46" (12 mm) high. Both are 6 digits (-99999 to 999999), red LEDs. |
| Display Intensity |
Eight intensity levels |
| Display Update Rate |
5/second (200 ms) |
| Overrange |
Display flashes 999999 |
| Underrange |
Display flashes -99999 |

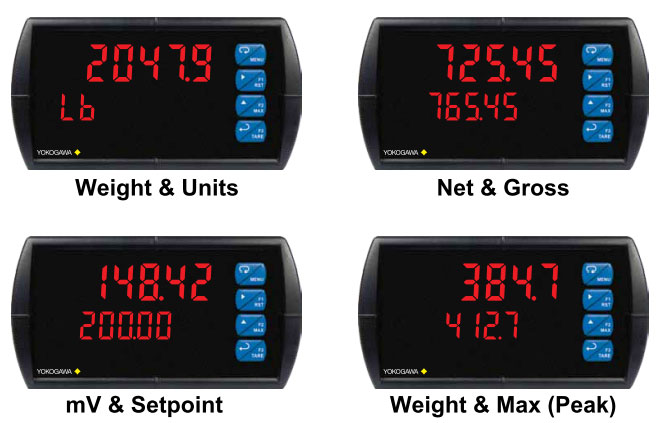

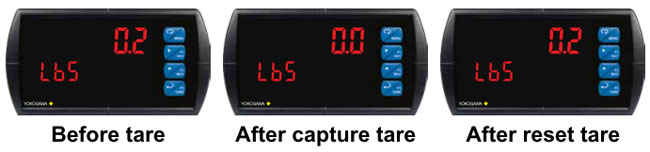

| Display Assignment |

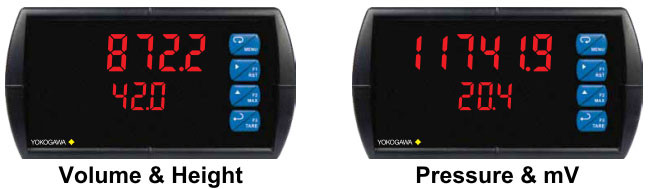

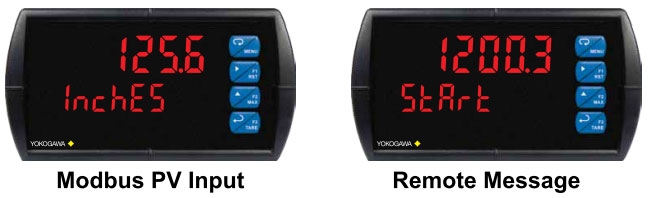

The displays may be assigned to PV1, PV2, PCT, max & min, set points, PV & units, units (lower display only), net & gross weight, Modbus input, and display millivolts. |
| Units |
lb, kg, ounce, gram, ton, metric ton (tonne), custom units. |
| Front Panel |
NEMA 4X, IP65 |

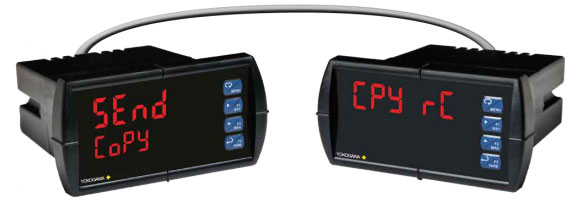

| Programming Methods |

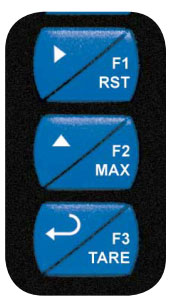

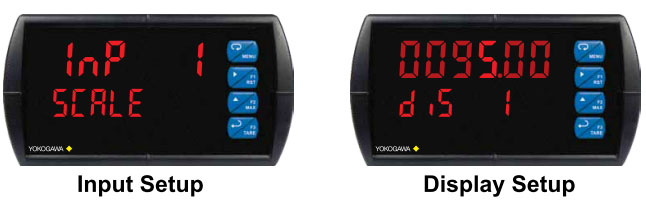

Four front panel buttons, digital inputs, PC and PROPLUS software, Modbus registers, or cloning using Copy function. |

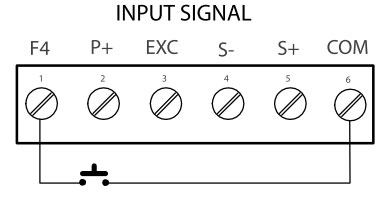

| F4 Digital Input Contacts |
3.3 VDC on contact. Connect normally open contacts across F4 to COM. |
| F4 Digital Input Logic Levels |
Logic High: 3 to 5 VDC |
| Logic Low |
0 to 1.25 VDC |
| Noise filter |
Programmable from 2 to 199 (0 will disable filter) |
| Filter Bypass |
Programmable from 0.1 to 99.9% of calibrated span |
| Rounding |
Select 1, 2, 5, 10, 20, 50, or 100 (e.g. rounding = 10, value = 123.45, display = 123.50). |
| Recalibration |
All ranges are calibrated at the factory. Recalibration is recommended at least every 12 months. |
| Max/Min Display |
Max/min readings reached by the process are stored until reset by the user or until power to the meter is cycled. |
| Password |
Three programmable passwords restrict modification of programmed settings. |
| Non-Volatile Memory |
All programmed settings are stored in non-volatile memory for a minimum of ten years if power is lost. |
| Power Options |
85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max, or jumper selectable 12/24 VDC ±10%, 15 W max. |
| Fuse |
Required external fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse. |
| Isolated Transmitter Power Supply |
Terminals P+ & P-: 10 VDC or 5 VDC ± 10%.12/24 VDC powered models selectable for 24 (should not be used for strain gauge/load cell), 10, or 5 VDC supply (internal jumper J4). 85-265 VAC models rated @ 200 mA max, 12/24 VDC powered models rated @ 100 mA max, @ 50 mA max for 5 or 10 VDC supply. |
| Normal Mode Rejection |
Greater than 60 dB at 50/60 Hz |
| Isolation |
4 kV input/output-to-power line. 500 V input-to-output (powered by external supply). |
| Overvoltage Category |
Installation Overvoltage Category II: Local level with smaller transient overvoltages than Installation Overvoltage Category III. |
| Environmental |
Operating temperature range: -40 to 65°C
Storage temperature range: -40 to 85°C.
Relative humidity: 0 to 90% non-condensing. |
| Connections |

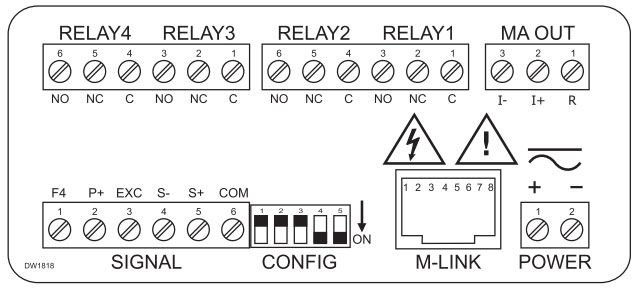

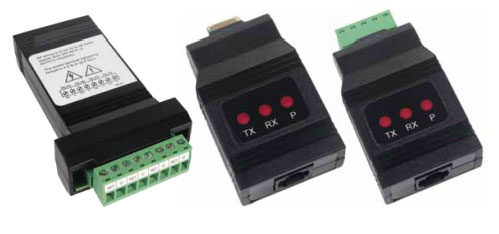

Removable screw terminal blocks accept 12 to 22 AWG wire, RJ45 for external relays, digital I/O, and serial communication adapters. |
| Enclosure |
1/8 DIN, high impact plastic, UL 94V-0, color: black |
| Mounting |
1/8 DIN panel cutout required: 3.622" x 1.772" (92 mm x 45 mm). Two panel mounting bracket assemblies are provided. |
| Tightening Torque |
Screw terminal connectors: 5 lb-in (0.56 Nm) |
| Dimensions |

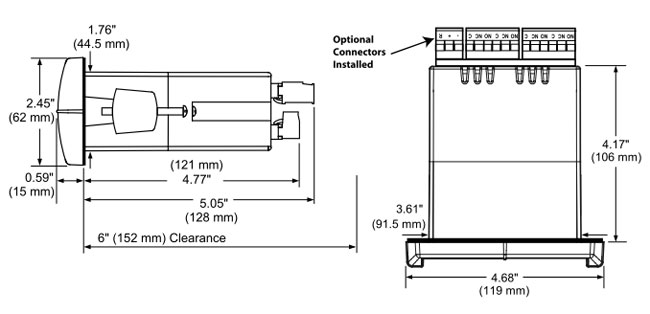

4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) (W x H x D) |
| Weight |
9.5 oz (269 g) |
| UL File Number |
UL & c-UL Listed. E348677; 508 Industrial Control Equipment. |
| Warranty |
3 years parts & labor |

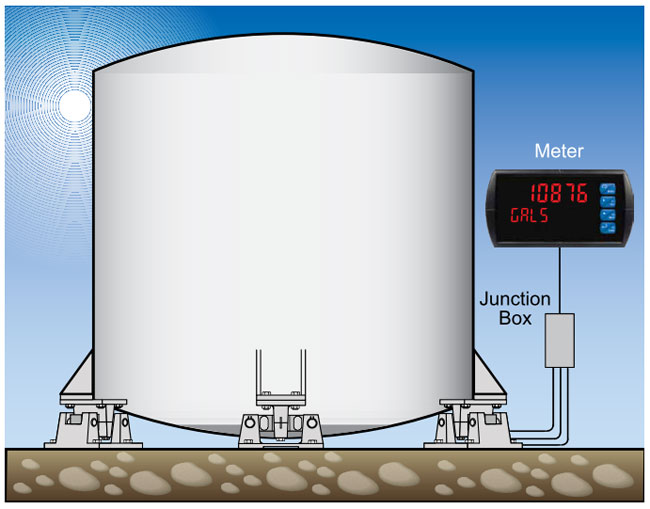

| Inputs |
Field selectable: 0-15, 0-30, 0-150, 0-300 mV, ±15, ±25, ±150, ±250 mV, or Modbus PV (Slave) |
| Accuracy |
±0.03% of calibrated span ±1 count |
| Temperature Drift |
0.002% of calibrated span/ºC max from 0 to 65ºC ambient, 0.005% of calibrated span/ºC max from -30 to 0ºC ambient. |
| Function |
Linear with multi-point linearization |
| Low-Flow Cutoff |
0-999999 (0 disables cutoff function) |
| Decimal Point |
Up to five decimal places or none: D . DDDDD, DD . DDDD, DDD . DDD, DDDD . DD, DDDDD . D, or DDDDDD. |
| Calibration Range |
An Error message will appear if the input 1 and input 2 signals are too close together. |
| Input Impedance |
Voltage ranges: greater than 1 MΩ. |
| Rating |
2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 watts) @ 125/250 VAC for inductive loads. |
| Noise Suppression |
Noise suppression is recommended for each relay contact switching inductive loads. |
| Deadband |
0-100% of span, user programmable |
| High or Low Alarm |
User may program any alarm for high or low trip point. Unused alarm LEDs and relays may be disabled (turned off). |
| Relay Operation |
automatic (non-latching), latching (requires manual acknowledge), sampling (based on time), pump alternation control (2 to 8 relays), Off (disable unused relays and enable interlock feature, manual on/off control mode). |
| Relay Reset |
User selectable via front panel buttons or digital inputs.
- Automatic reset only (non-latching), when input passes the reset point.
- Automatic + manual reset at any time (non-latching).
- Manual reset only, at any time (latching).
- Manual reset only after alarm condition has cleared (latching).
Note: Front panel button or digital input may be assigned to acknowledge relays programmed for manual reset. |
| Time Delay |
0 to 999.9 seconds, on & off relay time delays. Programmable and independent for each relay. |
| Fail-Safe Operation |
Programmable and independent for each relay.
Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state. |
| Auto Initialization |
When power is applied to the meter, relays will reflect the state of the input to the meter. |
| Protocol |
Modbus® RTU |
| Slave ID |
1 - 247 (Meter address) |
| Baud Rate |
300 - 19,200 bps |
| Transmit Time Delay |
Programmable between 0 and 199 ms or transmitter always on for RS-422 communication |
| Data |
8 bit (1 start bit, 1 or 2 stop bits) |
| Parity |
Even, odd, or none with 1 or 2 stop bits |
| Byte-to-Byte Timeout |
0.01 - 2.54 seconds |
| Turn Around Delay |
Less than 2 ms (fixed).
Note: Refer to the PROPLUS Register Tables located at www.yokogawa-usa.com for details. |
| Output Source |
Process variable (PV), max, min, set points 1-8, manual control setting, or Modbus input |
| Scaling Range |
1.000 to 23.000 mA for any display range |
| Calibration |
Factory calibrated: 0.00 to 100.0 = 4- 20 mA output |
| Analog Output Programming |
1.000 mA minimum and 23.000 mA maximum for all parameters: Overrange, underrange, max, min, and break Accuracy: ± 0.1% of span ± 0.004 mA |
| Temperature Drift |
0.4 μA/°C max from 0 to 65°C ambient, 0.8 μA/°C max from -40 to 0°C ambient.
Note: Analog output drift is separate from input drift. |
| Isolated Transmitter Power Supply |
Terminals I+ & R: 24 VDC ± 10%. May be used to power the 4-20 mA output or other devices (except load cell/strain gauge). All models rated @ 40 mA max. |
| External Loop Power Supply |
35 VDC maximum |
| Output Loop Resistance |
| Power supply |
Minimum |
Maximum |
| 24 VDC |
10 Ω |
700 Ω |
| 35 VDC (external) |
100 Ω |
1200 Ω |
|
| Channels |
4 digital inputs & 4 digital outputs per module |
| System |
Up to 2 modules for a total of 8 inputs & 8 outputs |
| Digital Input Logic |
High: 3 to 5 VDC
Low: 0 to 1.25 VDC |
| Digital Output Logic |
High: 3.1 to 3.3 VDC
Low: 0 to 0.4 VDC |
| Source Current |
10 mA maximum |
| Sink Current |
1.5 mA minimum |
| +5 V Terminal |
To be used as pull-up for digital inputs only. |
| Relays |
Four Form A (SPST) rated 3 A @ 30 VDC and 125/250 VAC resistive load; 1/14 HP (≈ 50 watts) @ 125/250 VAC for inductive loads. |
