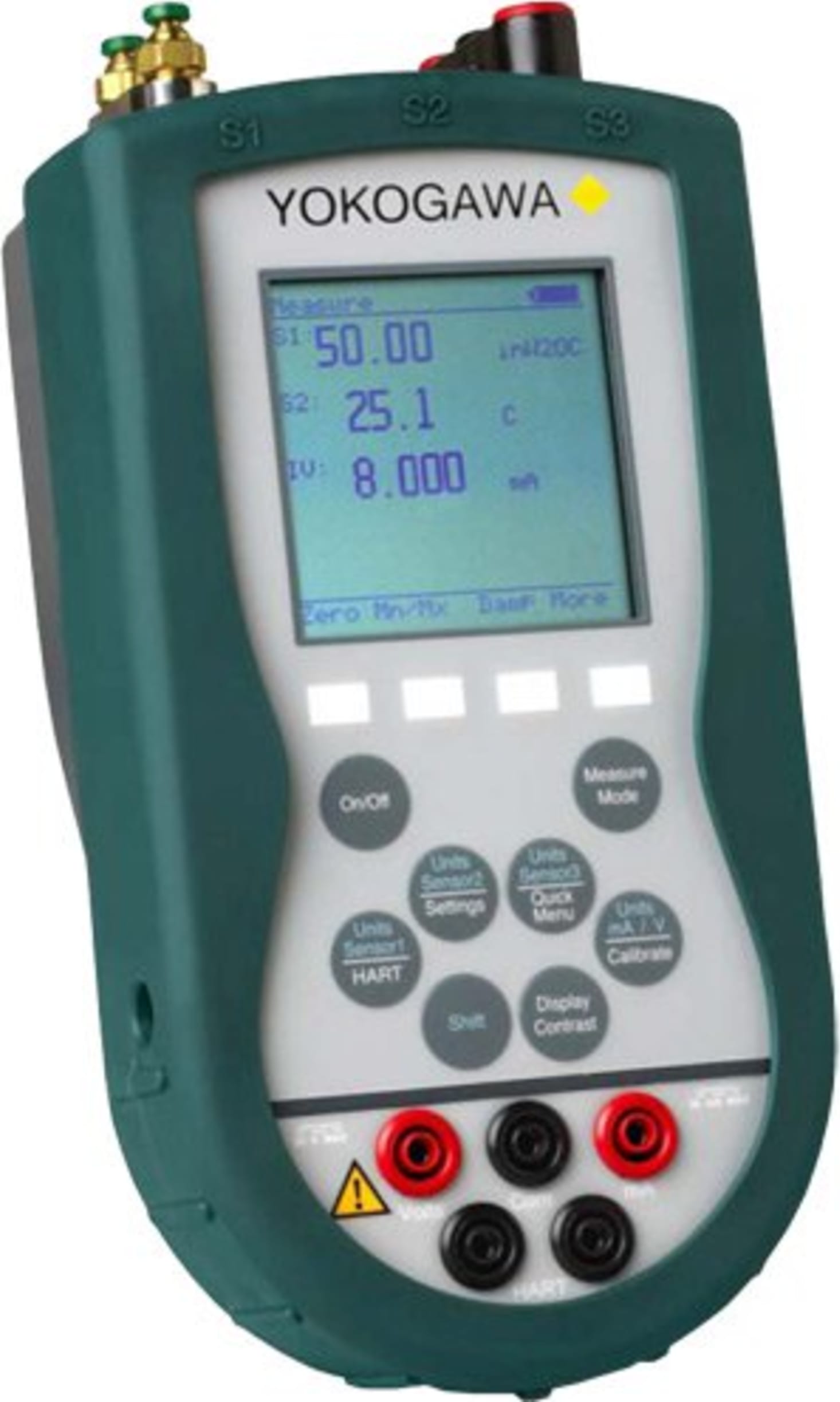

Yokogawa YPC4000

0 reviews | Model: Yokogawa YPC4000

Portable Modular Calibrator without HART Communications

  • See YPC4010 for version with HART Communications
  • USER INTERFACE –2.6” x 2.6” display, four soft keys (definitions change with mode requirements) and eight hard keys provide user interface. Display is configurable for 1 to 4 simultaneous measurements.
  • MODULES – select from a variety of positive lock measurement modules for excellent versatility.
  • FIELD RECERTIFICATION – sensor modules and integral V / I can be recalibrated for zero, span, & linearity through the base unit.
  • MEASUREMENT UNITS – customary English and Metric System units are selectable
  • USER CONVENIENCE – Auto shut off, Damping, Min/Max value capture, display Hold, sensor Zero, direct Contrast adjustment & tare.
  • SECURITY LOCKOUT – YPC4000 settings can be locked out entirely or by specific feature.
  • DIAGNOSTICS – YPC4000 self-tests upon power up and upon installation of sensor modules. Advisories are posted on the display.
  • FIELD UPDATES – uses Internet downloads to update and add capability / HART®support
  • DEDICATED DOF MEMORY – Memory for 500 HART®profiles.
  • ALL-IN-ONE TOOL – takes the place of multiple handheld instruments, simplifies work load and improves productivity
  • DOCUMENTING – Documenting memory and firmware for use with DMS software. Stores up to 200 HART® configuration files and over 100 calibration results (as-found & as-left data [up to 21 points each], time/date info, tag). Communicate with PC via DB-9 connector.
  • INTRINSIC SAFETY – Class I, Div I areas per CSA 22.2 & UL913 by MET Laboratories.
  • OPTIONAL DMS SOFTWARE – The Device Management System software is a full feature software tool for calibration and configuration management of smart and conventional field devices. DMS provides user-friendly navigation and organization of field devices, scheduling of calibration procedures, and storage of smart field device configuration data.
View Product Details
From: $1,200.00 - $1,485.18
In Stock:

Customize the item below to add to cart.

Have a question? Ask an expert.

Live Chat 877.571.7901 Email

Customize Your Product

Part Number: YPC4000
Price: $1,200.00
 ADD TO CART
 Add to Quote


Items in This Series

Yokogawa YPC4000
ProductYokogawa YPC4000 Portable Modular Calibrator without HART Communications
Rating(0)
Price
In Stock
Max Pressure
Accuracy
Absolute Pressure
