| Functional Specifications |
| Program Setting Function |
| Program pattern setting capacity |
300 maximum |
| Number of segment/pattern |
99 maximum |
| Number of segment |
3000 maximum (sum of segments for all program patterns) |
| Number of event |
4000 maximum (sum of events for all program patterns) |
| Number of program repeat time |
0 to 999, or unlimited repeats. |
| Segment time |
0 minute 0 s to 59 minute 59 s, or 0 h 0 minute to 59 h 59 minute. |
| Mode of program pattern operation |
Start (RUN), stop (RESET), paused (hold), advance, can be executed by an external contact or instrument operation. |
| Switching between program patterns |
Achieved by contact input or instrument operation. |
| Wait Function |
| Wait time |
OFF, 0 minute 1 s to 99 minute 59 s or 0 h 1 minute to 99 h 59 s. |
| Wait zone |
0 to 10 % of measured input range width. |
| UP mode and Program Setting Function |
| UP mode with one channel of control |
Single-loop control, Cascade primary-loop control, Loop control with PV switching, Loop control with PV auto selector, Loop control with 2 universal inputs switching , Cascade control, Cascade control with 2 universal inputs. Note that Program pattern setting function is only available with the cascade primary-loop when Cascade control with 2 universal inputs are used. |
| UP mode with two channels of control |
Dual-loop control, Temperature and humidity control. The following functions are common to dual program setting functions ( “Program pattern RUN/RESET”, “The total number of program segment”) and “Segment time”. |
| Program Setting Function and PID Parameters Switching |
| Segment PID selection |
PID-parameter numbers being used can be selected on a segment basis. Zone PID selection: PID parameter sets are selected depending on the value of the applied PV input. Either the reference point method (reference point; a setpoint for switching between PID parameter sets) or the reference deviation method is used for the switching. |
| Reference point method |
Divides the measurement input range into as many as seven zones using a maximum of six reference points, and switching between PID parameter sets is done on a zone basis. |
| Reference deviation method |
Switches between PID parameter sets depending on whether the control deviation (DV) is within the given reference deviation or exceeding the deviation. This method has priority over the reference point method during operation. |
| Time Events |
| Number of time events |
8 points max. per segment (Max. 8 points for per segment the instrument with two control channels) |
| Time event display |
4 points (TME1, TME2, TME3,TME4) |
| Time event setting point |
Start and duration (user settable) |
| Setting time |
0 minute 0 s to 99 h 59 minute. |
| PV Events |
| Number of PV event |
max. 8 points per segment |
| PV event display |
2 points ( PVE1, PVE2 ) The status of all the setting events can be seen in the operating display. |
| Event types |
PV high limit, PV low limit, Deviation high limit, Deviation low limit, Deenergized on deviation high limit, Deenergized on deviation low limit, Deviation high and low limits, High and low limits within deviation, Deenergized on PV high limit, Deenergized on PV low limit, SP high limit, SP low limit, Output high limit, Output low limit. |
| Configurable ranges of PV events |
PV alarm: –100 to 100% of measured input range.
DV alarm; –100 to 100% of measured input width.
Alarm hysteresis: 0.0 to 100% of measured input range width. |
| Instrument Alarm Functions |
| Alam types |
PV high limit, PV low limit, Deviation high limit, Deviation low limit, Deenergized on deviation high limit, Deenergized on deviation low limit, Deviation high and low limits, High and low limits within deviation, Deenergized on PV high limit, Deenergized on PV low limit, SP high limit, SP low limit, Output high limit, Output low limit. |
| Alarm setting range |
PV/SP alarm: –100 to 100 % of measured input range.
Deviation alarm: –100 to 100 % of measured input range width.
Output alarm: –5.0 to 105.0 % of output value.
Alarm hysteresis: 0.0 to 100.0 % of measured input range width. |
| Stand-by action |
Stand-by action can be set to make PV/deviation alarm OFF during start-up or after SP change until SP reaches the normal region. |
| Other alarm actions |
Sensor grounding alarm: Detects sensor deterioration and outputs an alarm.
Fault diagnostic alarm: Input burnout, A/D conversion error, RJC error.
FAIL output: Abnormality in Software, Abnormality in Hardware. |
| Number of Instrument Alarm Settings |
4 points |
| Number of Instrument Alarm Outputs |
Max. 4 points One of PV alarm/Deviation alarm, Fault diagnostic alarm, Sensor grounding alarm and Fail output can be output with contact output. |
| Event Output Functions |
| Time event |
4 points |
| PV event |
2 points |
| Instrument alarm |
1 point |
| Control Functions |
| UP mode |
| Single-loop Control (UP mode 1) |
The most simple and basic control function. |
| Cascade primary-loop control (UP mode 2) |
Output tracking function and cascade control logic are provided. Suitable for the primary- loop cascade control. |
| Cascade control (UP mode 4) |
Dual control functions. Whole Cascade control can be executed with a single instrument. |
| Loop control with PV switching (UP mode 6) |
Two measured inputs are switched for control depending on the status of contact input or measured input. |
| Loop control with PV auto-selector (UP mode 7) |
Two measured inputs are automatically selected for control with a high, low, average, or temperature-difference value selector. |
| Dual-loop control (UP mode 11) |
Dual control function is available in a single instrument to control two loops. |
| Temperature and Humidity control (UP mode 12) |
Temperature control and Relative Humidity control are available in a single instrument. |
| Cascade control with two universal inputs (UP mode 13) |
Cascade control with using two universal measured inputs. |
| Loop control with PV switching and two universal inputs (UP mode 14) |
Loop control with PV switching and two universal inputs available as measured inputs. |
| Loop control with PV auto-selector and two universal inputs (UP mode 15) |
Process variable for loop control is automatically selected from two or three measured inputs by an internal selector, using two universal inputs and an auxiliary analog input. When two universal inputs are configured as measured input, auxiliary analog input can be used for a remote setpoint input. |
| Custom computation control (UP mode 21) |
Can be provided by the user using the optional LL200 custom computation building tool. |
| Control Computation Functions |
| Target setpoint and PID parameter |
Maximum eight sets of target setpoint and PID parameters can be set and stored in a instrument. For Cascade control and Dual-Loop control type, eight sets for each main and slave are available. |
| Auto-tuning |
standard Possible to activate auto-tuning for both loops of Cascade control, Dual-loop control and Temperature and humidity control. |
| “SUPER” function |
Overshoots generated by abrupt changes in the target setpoint or by disturbances can be suppressed. |
| “SUPER 2” function |
This function stabilizes the state of control that is unstable due to hunting, etc. without requiring any change in PID constants, when the load and/or gain varies greatly, or when there is a difference between the characteristics of temperature zones. |
| Preset output function |
When the instrument is in reset mode, measured input is burnout, or abnormality is found in an input circuit, users’ preconfigurable preset value is output as a control output. |
| Operation Mode Switching |
| AUTO/MANUAL switching |
Bump-less switching is available. Switching between AUTO and MANUAL mode can be realized by instrument operation or by external contact, and external contact switching has priority to instrument operation. |
| RUN (PRG)/STOP (RESET) switching |
Switching can be realized by the front key or external contact, and external contact switching takes priority to the front key. Bump-less switching for RESET to PROG is available. In PRG mode, control computation is activated. In RESET mode, control computation ceases and preset output value is output as a control output, while other functions operates normally. |
| CASCADE/Local SP switching |
Switching can be realized by instrument operation or external contact, and external contact switching takes priority to instrument operation. Available when UP mode is set to “Cascade control”. |
| Control Parameter Setting Range |
| Proportional Band |
0.1 to 999.9% 0.0 to 999.9% (for heating/cooling PID control), 0.0% available for ON/OFF control. |
| Integral time |
1 to 6,000 s, or OFF(for Manual reset) |
| Derivative time |
1 to 6,000 s, or OFF |
| ON/OFF control hysteresis |
0.0 to 100.0% of measured input range width |
| Preset output value |
–5.0 to 105.0% of output range (0mA or less cannot be output) |
| Output limiter |
Setting range; –5.0 to 105.0% for both high and low limits. However “low limit setpoint < high limit setpoint” must be satisfied. In case of heating/cooling PID control, upper limiter for heating and upper limiter for cooling. |
| Shutdown function |
In manual mode operation, up to approx. 0mA can be output. (For 4 to 20 mA control output only) |
| Rate of change limiter for output |
OFF, or 0.1 to 100.0%/s |
| Dead band for heating/cooling control |
–100.0% to 50.0% of output value |
| Configuration of Input/Output Signal |
| Measured Input Computations |
Bias (–100.0 to 100.0%), First lag filter (OFF, time constant 1 to 120 s), Square root extraction (for voltage input only, Input low cut 0.0 to 5.0%), 10-segment line linearizer/bis function, relative humidity calculation for wet/dry bulb (for Temperature & Humidity control type only) |
| Auxiliary Input Computaitons |
Bias (-100.0 to 100.0%), Filter (off, time constant 1 to 120 s), Square root extraction (Input low-cut 0.0 to 5.0%). |
| Custom Computations |
LL200 Building tool is necessary for using Custom computation function. |
| Computation function module |
Addition/substruction/ multiplication/division, Processing absolute value/reciprocal, Selecting maximum/ minimum/average, Keeping maximum/minimum value, Keeping value, Rate of change limiter, Switch, Limiter, Constant, AND, OR, Exclusive OR, NOT, Latch, Comparison(=, <, >, , ), Not equivalent, Within range, AND(word), OR(word), Shift word, Sum, Timer, Ten-segment linearizer 1/2, Inverse ten-segment linearizer 1/2, Curve linearizer 1/2, Ratio, First order lag filter, Conversion to engineering unit, Selection of PV from two inputs, Temperature and humidity calculation, Fluid Temperature/Pressure compensation, MV selection1/2, Conversion of display value, Parameter setting, Data display1/2, Special discrete output calculation, Assignment of output terminals 1/2, etc. |
| Maximum Number of Module to be used |
50 for input Custom computation, 50 for output Custom computation |

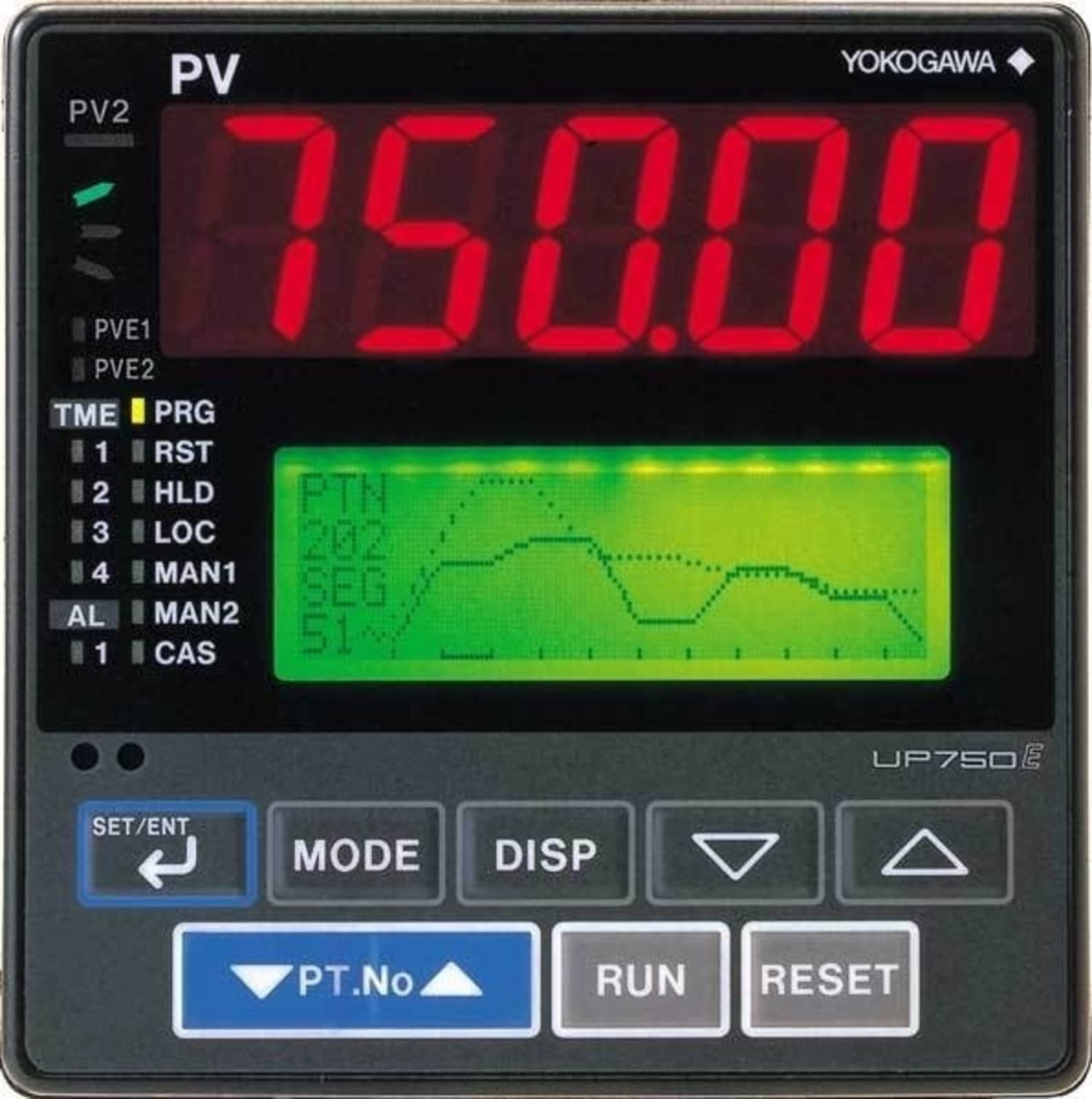

| Display and Operation Function |
| LCD Display Unit |
| Operating display |
Necessary data for operation is displayed according to UP mode. Such items as Program pattern, Setpoint, Control output, control output bar, deviation trend, is displayed. Time base of deviation trend is 120 s to 20 h. |
| Operating parameters setting display |
The Operating parameters, which are mainly changed during operation, such as PID constant, are displayed. The explanation of each parameters is provided. |
| Program Parameters Setting display |
Generation of Program pattern, and parameters for Wait Function and Repeat Function are displayed. |
| Setup parameter setting display |
The Setup parameters to configure functions of the instrument before starting operation are displayed. The explanation of each parameters is provided. |
| SELECT display |
Up to 5 displays which are frequently accessed can be selected from Operating parameter setting display and Setup parameters setting display. |
| Status Lamps |
| Event indicating lamp |
7 points (TME1, TME2, TME3, TME4, PVE1, PVE2, AL) |
| Operation mode indicating lamp |
PRG (Program operation), RST (Program operation reset), HLD (Program operation hold), LOC (Local operation), MAN1 (Loop1 in Manual mode), MAN2 (Loop2 in Manual mode), CAS (Cascade operation). |
| Operation Key |
| ▲, ▼ key |
Increase/decrease the value of Setpoint or other parameters which appear on LCD display. |
| DISP key |
Switch data to be showed on LCD display |
| SET/ENT key |
Set/change the setting value, switch information to be showed on LCD display, switch operation mode other than AUTO/MAN. |
| PT No. key |
Select program pattern No. |
| RUN key |
Start the program operation |
| RESET key |
Stop and reset the program operation. |
| Security Function |
Key lock from parameters setting and, operation can be inhibited by a password. |
| Communication Functions |
| Communication Protocol |
| Computer link communication |
Communication protocol with a personal computer, PLC communication modules, and more. |
| Ladder communication (BCD serial communication) |
Communication protocol with the ladder program on some programmable logic controllers. |
| MODBUS communication |
Communication protocol with a personal computer or PLC. |
| Coordinated operation protocol |
Protocol to realize Coordinated operation with other GREEN SERIES controller. UP750 is always configured as a master unit. |
| Digital input/output expansion(Bus) |
Protocol to connect Digital I/O expansion module to increase the number of Discrete Input and Output. |
| Input/Output Signal Specifications |
| Measured Input Signal |
| Number of input |
1 or 2 points Input type, measurement input range and measurement accuracy: Refer to the table below. Possible to select input type/measurement range by software. |
| Sampling period |
100, 200 or 500 ms (selectable)(default; 200 ms) |
| Burnout detection |
Available with Thermocouple, RTD, standard signal 0.4 to 2 V DC and 1 to 5 V DC input. Possible to specify a travel of upscale, downscale or off. For DC voltage input, 0.1 V or less are regarded as burnout. |
| Input bias current |
0.05 μA( For T/C and RTD b-terminal) |
| Specified current (RTD) |
about 0.13 mA |
| Input resistance |
TC/mV input 1 MΩ or more
DC Voltage input approx. 1 MΩ
(approx. 8 MΩ for ramge 0.0 to 1.2 V of measuring input 2) |
| Allowable input voltage |
TC/mV/RTD: ±10VDC
DC Voltage: ±20VDC |
| Noise rejection ratio |
Normal mode: 40dB(50/60Hz) or more
Common mode: 120dB(50/60Hz) or more |
| RJC Error |
±1.0°C (15 to 35°C),
±1.5°C (0 to 15°C, 35 to 50°C ) |
| Applicable standard |
TC/RTD: JIS/IEC/DIN (ITS-90) |
| Response time |
1 second or less, 63% (10 - 90%)
(The time required for transmission output to reach 63% of the maximum excursion when PV abruptly changes from 10% to 90%) |
| Auxiliary Analog Input |
| Functions |
Remote setpoint input, compensatory input, PV input of Cascade secondary-loop, etc. |
| Input type |
DC voltage input 0 to 2 V DC, 0 to 10 V DC, 0.4 to 2.0 V DC or 1 to 5 V DC (Settable within the range) |
| Number of input |
1 point |
| Sampling period |
100, 200 or 500 ms auxiliary analog input period is linked with PV sampling period. |
| Input resistance |
Approx. 1MΩ |
| Input accuracy |
±0.3%±1 digit of F.S. for 0 to 2 V DC range ±0.2%±1 digit of F.S. for 0 to 10 V DC range ±0.375%±1 digit of F.S. for 0.4 to 2.0 V DC range. ±0.3%±1 digit of F.S. for 1 to 5 V DC range. Performance in the standard operating conditions (at 23± 2°C, 55± 10% RH, and 50/60 Hz power frequency) |
| Retransmission Output |
| Number of output points |
1 or 2 Retransmission output 2 is available only when “relay” is selected as the control output function. |
| Output signal |
4 to 20 mA DC, 0 to 20 mA DC, 20 to 4 mA DC or 20 to 0 mA DC (0 mA or less cannot be output) |
| Load resistance |
600 Ω or less |
| Output accuracy |
±0.1% of span (±5% for 1 mA or less) Performance in the standard operating conditions (at 23± 2°C, 55± 10% RH, and 50/60 Hz power frequency) |
| When using for 15 V DC loop power supply |
Supply voltage 14.5 to 18.0 V DC, maximum supply current about 21 mA (with the protection circuit at field short-circuit) |
| Control Outputs |
| Current output |
| Number of output |
1 or 2 points (for heating/cooling type)(selected between voltage pulse output) |
| Output signal |
4 to 20 mA DC, 0 to 20 mA DC, 20 to 4 mA DC or 20 to 0 mA DC |
| Load resistance |
600 Ω or less |
| Output accuracy |
±0.1% of output span(±5% for 1 mA or less) Performance in the standard operating conditions (at 23± 2°C, 55± 10% RH, and 50/60 Hz power frequency) |
| Voltage pulse output |
Number of output: 1 or 2 points (for heating/cooling type) (selected between current output) |
| Output signal |
ON voltage 12 V DC or more (lead resistance 600 Ω or less), OFF voltage 0.1 V DC or less |
| Resolution |
10ms or 0.1% of output value, whichever is greater |
| Relay contact output |
| Number of output |
1 or 2 points (for heating/cooling type) |
| Output signal |
Three terminals (NC, NO, and common) |
| Contact rating |
250 V AC 3 A or 30 V DC 3 A (Load resistance) |
| Resolution |
10ms or 0.1% of output value, whichever is greater |
| Contact Inputs |
| Usage |
Program pattern switching, Local/Remote switching, HOLD, ADVANCE selection, RUN/RESET switching, measured input selection, and message interruption display. |
| Number of input |
7 points (23 points max. when using Digital I/O expansion module). |
| Input type |
Non-voltage contact input or transistor open collector input |
| Input contact rating |
12 V DC, 10mA or more |
| ON/OFF detection |
For non-voltage contact contact input: ON=contact resistance 1 kΩ or less,
OFF=contact resistance 20 kΩ or more
For transistor input: ON=2 V or less, OFF=leak current 100 μA or less
Minimum detecting time: PV input sampling period ×3 |
| Contact Outputs |
| Usage |
Instrument alarm output, Cooling side output for Heating/Cooling control (Transistor contact output), Event output. |
| Number of output |
7 points (Relay output 3 points, Open collector output 4 points), (23 points max. when using Digital I/O expansion module). |
| Relay contact rating |
240 V AC 1 A or 30 V DC 1 A (Common to COM terminal) |
| Transistor contact rating |
24 V DC 50 mA (Common to COM terminal) |
| Display Specifications |
| Measured value (PV) display |
5 digit seven segment red color LED display, height of a letter; 20 mm |
| Data display |
32 × 128 dot LCD display with back-light |
| Status indicating lamp |
LED |
| Construction, Installation, and Wiring |
| Structure |
Dust-proof and Drip-proof front panel conforming to IP55. For side-by-side close installation, controller loses its dust-proof and drip-proof protection. |
| Material of the body |
ABS resin and polycarbonate |
| Case color |
Black |
| Weight |
Approx. 1 kg or less |
| Dimensions |
96W×96H×100D (From the front panel surface) (mm) |
| Mounting |
Direct panel mounting; mounting bracket, one each for upper and lower mounting |
| Panel cutout dimensions |
92 +0.80 W × 92 +0.80 H (mm) |
| Mounting position |
0° to +30° with respect to vertical panel surface. |
| Wiring |
M3.5 screw terminal (signals, power supply/ground) |
| Power Supply and Isolation |
| Power supply |
Rated voltage 100 to 240V AC, (±10%), 50/60Hz |
| Power consumption |
MAX. 20VA (MAX. 8.0W) |
| Memory backup |
Litium Battery, Life Time approx. 10years |
| Withstanding voltage |
Between primary terminal and secondary terminal: 1500V AC for 1 min.
Between primary terminal and ground terminal: 1500V AC for 1 min.
Between ground terminal and secondary terminal: 1500V AC for 1 min.
Between two secondary terminal: 500V AC for 1 min. |
| Isolation Resistance |
Between power supply terminal and ground 500V DC 20MΩ or more |
| Grounding |
Class D grounding (grounding registance of 100Ω or less) |
| Isolation Specifications |
| Measured input terminal 1 |
Isolated from Measured input terminal 2 and other input/output terminals. Not isolated from internal circuits. |
| Measured input terminal 2 |
Isolated from Measured input terminal 1, other input/output terminals and internal circuits. |
| Auxiliary analogue input terminal |
Isolated from other input/output terminals and internal circuits. |
| Control output (current output or voltage pulse output) and retransmission output |
Not isolated between control output and retransmission output terminals. Isolated from other input/output terminals and internal circuits. |
| Relay contact control output terminals |
Isolated from other input/output terminals and input circuits. |
| Contact input terminals |
Not isolated from other contact input and communication terminals. Isolated from other input/output terminals and internal circuits. |
| Relay contact event output terminals |
Isolated from other input/output terminals and internal circuits. |
| Transistor contact event output terminals |
Not isolated between other open collector output terminals mutually. Isolated from other input/output terminals and internal circuits. |
| RS-485 communication terminals |
Not isolated between other communication terminals, and from contact input terminals. Isolated from other input/output terminals and internal circuits. |
| Power supply terminals |
Isolated from other input/output terminals and internal circuits. |
| Ground terminal |
Isolated from other input/output terminals and internal circuits. |
| Environmental Conditions |
| Normal operating conditions |
| Ambient temperature |
0 to 50°C 40°C or less in close mounting side-by-side. |
| Temperature change rate limit |
10°C/h or less |
| Mbient humidity |
20 to 90%RH (no condensation) |
| Ambient humidity |
20 to 90%RH (no condensation) |
| Magnetic field |
400 A/m or less |
| Continuous vibration (5 to 14Hz) |
amplitude 1.2mm or less |
| Continuous vibration (14 to 150Hz) |
4.9m/ s 2 or less |
| Vibration in short period |
14.7m/ s 2 , 15sec or less |
| Shock |
147m/s 2 or less, 11ms |
| Installation altitude |
2000m above the sea level or less |
| Warm-up time |
30 minutes or more |
| Transit/storage conditions |
| Temperature |
-25 to 70°C |
| Temperature change rate limit |
20°C/h or less |
| Humidity |
5 to 95%RH (non-condensing) |
| Effect of ambient temperature |
| For Voltage/TC input |
Within (±1µV/°C or ±0.01% of F.S./°C, whichever is greater.) |
| For Auxiliary input |
Within ±0.02% of F.S./°C |
| For RTD input |
Within ±0.05°C/°C (ambient temperature) |
| For analog output |
Within ±0.05% of F.S./°C |
| Effect of power supply fluctuation (within rating voltage) |
| For analog input |
Within (±1µV/10V or ±0.01% ofF.S./10V, whichever is greater.) |
| For analog output |
Within ±0.05% of F.S./10V |
