Yokogawa UP32A UTAdvanced Program Temperature Controller

Name: Yokogawa UP32A UTAdvanced Program Temperature Controller
Brand: Yokogawa
SKU: YokogawaUP32A
Price: 509.00 USD
Availability: InStock

0 reviews | Model: Yokogawa UP32A

YokogawaUT32AGeneralPurposeTemperatureController

Compare

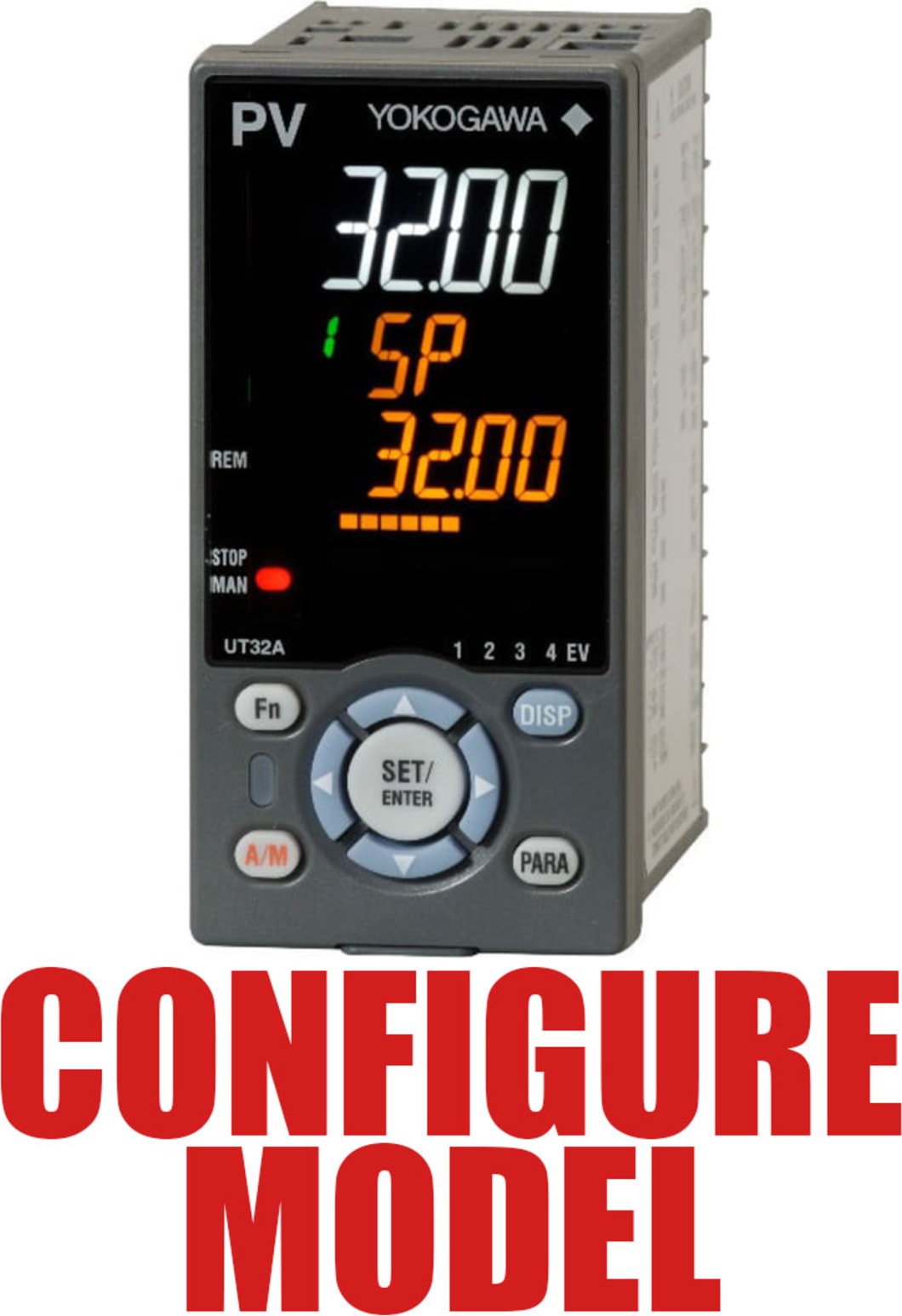

Yokogawa UP32A UTAdvanced Program Temperature Controller. SIZE: 1/8 DIN

A 14-segment, active (PV display color changing function) color LCD display is employed. Two five-digit, high-resolution displays are possible. Alphabet letters can be displayed in an easy-to-read manner. The guide display shows parameter names.
Easy to operate Navigation keys (SET/ENTER and Up/Down/Left/Right arrow keys) are employed to facilitate making settings.
65 mm depth The small depth enables the mounting in a thin and small instrumented panel.
Ladder sequence function is included as standard. This function allows for creating a simple sequence control. Dedicated LL50A Parameter Setting Software (sold separately) allows for performing programming using a ladder language.
Various built-in open network functions such as Ethernet are available. Easy connection with various vendors’ PLCs is possible. (UP32A support CC-Link and RS485 communication only.)
Quick setting function Setting only the minimum necessary parameters for operation is possible. (For single-loop control only)
Equipped with a multitude of functions Universal I/O and eight control modes (cascade control, etc) are included as standard. PID control, heating/ cooling control, feed forward control, etc. are available.
LL50A Parameter Setting Software (sold separately) The parameters and ladder programs of UTAdvanced digital indicating controller can be built from a PC using this software. It makes data management even easier.
Dust-proof and drip-proof IP66 (for front panel) (Not applicable to side-by-side close mounting.) NEMA4 (Hose-down test only)

View Product Details

From: $568.00 - $1,441.00

In Stock:

Customize the item below to add to cart.

Non-Cancellable / Non-Returnable

Customize Your Product

Part Number: UP32A

Price: $509.00

ADD TO CART

Add to Quote

Items in This Series


Product	Yokogawa UP32A Yokogawa UP32A UTAdvanced Program Temperature Controller. SIZE: 1/8 DIN	Yokogawa UP55A Yokogawa UP55A Program Controller / Pattern Profiling Temperature Controlle ...	Yokogawa UP35A Yokogawa UP35A UTAdvanced Program Controller / Pattern Profiling Temperatur ...
Price
In Stock
Type (Controllers)	Digital	Digital	Digital
Size Rectangular	1/8 DIN	1/4 DIN	1/4 DIN
Max # Control Loops	1 EA	1 EA	1 EA
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Yokogawa UP32A Accessories

Choose a Category

Software

for the Yokogawa UP32A

Yokogawa LL50A-00 Yokogawa LL50A Light Loader Parameter Setting Tool and PLC Ladder...

Catalog: LL50A-00

(0)

In Stock!

Add to Cart

Yokogawa UP32A UTAdvanced Program Temperature Controller

The UP32A is a compact program controller with up to 4 patterns and 40 segments available. It also includes a ladder sequence function.

The UP32A program controller employs an easy-to-read, 14-segment large color LCD display, along with navigation keys, thus greatly increasing the monitoring and operating capabilities. A ladder sequence function is included as standard. The short depth of the controller helps save instrument panel space. The UP35A also support open networks such as Ethernet communication.

Program Pattern Functions

The program setting function increases or decreases the value of a target setpoint (SP) according to a given program pattern that varies with time. The controller stores two or more program patterns and the operator can switch between them according to the operating status. Each program pattern consists of multiple line segments (program segments). The operator sets the time interval of each program segment using the segment time or slope. The operator can also set such instructions as the number of repeats, start/stop, and status output (event output) for a given program pattern.

Display Specifications

PV display: 5-digit, 14-segment active color LCD (white/red)
Character height; UP35A: 21.5 mm, UP32A: 13.0 mm
Data display: 5-digit, 11-segment color LCD (orange)
Bar graph display: 12-segment color LCD (orange)

Names of Operation Parts

Block Diagram

Terminal Arrangement

Terminal Arrangement for UP32A Single Loop Control

External Dimensions and Panel Cutout Dimensions

Universal Input Specifications
Number of inputs		1
Input sampling (control) period		200 ms
Burnout detection		Functions at TC, RTD, and standard signal. Upscale, downscale, and off can be specified. For standard signal, burnout is determined to have occurred if it is 0.1 V or 0.4 mA or less.
Input bias current		0.05 µA (for TC or RTD)
Measured current (RTD)		About 0.16 mA
Input resistance	TC or mV input	1 MΩ or more
	V input	About 1 MΩ
	mA input	About 250 Ω
Allowable signal source resistance	TC or mV input	250 Ω or less
	Effects of signal source resistance	0.1 µV/Ω or less
	DC voltage input	2 kΩ or less
	Effects of signal source resistance	About 0.01%/100 Ω
Allowable wiring resistance	RTD input	Max. 150 Ω/wire (The conductor resistance between the three wires shall be equal.)
Allowable wiring resistance	Wiring resistance effect	±0.1ºC/10 Ω
Allowable input voltage/current	TC, mV, mA and RTD input	±10 V DC
	V input	±20 V DC
	mA input	±40 mA
Noise rejection ratio	Normal mode	40 dB or more (at 50/60 Hz)
Noise rejection ratio	Common mode	120 dB or more (at 50/60 Hz) For 100-240 V AC, the power frequency can be set manually. Automatic detection is also available. For 24 V AC/DC, the power frequency can be set manually.
Reference junction compensation error		±1.0ºC (15 to 35ºC), ±1.5ºC (-10 to 15ºC and 35 to 50ºC)
Applicable standards		JIS/IEC/DIN (ITS-90) for TC and RTD

Contact Input Specifications
Input type		No-voltage contact input or transistor contact input
Input contact rating		12 V DC, 10 mA or more Use a contact with a minimum on-current of 1 mA or less.
ON/OFF detection	No-voltage contact input	Contact resistance of 1 kΩ or less is determined as “ON” and contact resistance of 50 kΩ or more as “OFF.”
	Transistor contact input	Input voltage of 2 V or less is determined as “ON” and leakage current must not exceed 100 µA when “OFF.”
Minimum status detection hold time		Control period +50 ms
Use		PTNO. switch, operation mode switch, and event input

Analog Output Specifications
Number of outputs	Control output	1
	Cooling-side control output of Heating/cooling type	1
Output type		Current output or voltage pulse output
Current output		4 to 20 mA DC or 0 to 20 mA DC/load resistance of 600 Ω or less
Current output accuracy		±0.1% of span (±5% of span for 1 mA or less)
The accuracy is that in the standard operating conditions		23±2°C, 55±10%RH, and power frequency at 50/60 Hz.
Voltage pulse output	Use	Time proportional output
	On-voltage	12 V or more/load resistance of 600 Ω or more
	Off-voltage	0.1 V DC or less
	Time resolution	10 ms or 0.1% of output, whichever is larger

Retransmission Output Specifications
Number of outputs	Retransmission output; 1, shared with 15 V DC loop power supply or Cooling-side control output.
Current output	4 to 20 mA DC or 0 to 20 mA DC/ load resistance of 600 Ω or less
Current output accuracy (conversion accuracy from PV display on the set scale)	±0.1% of span (±5% of span for 1 mA or less)
The accuracy is that in the standard operating conditions	23±2°C, 55±10%RH, and power frequency at 50/60 Hz. This is not conversion accuracy through input and output but the performance of transmission output itself.

Retransmission Output Specifications
Number of outputs	Retransmission output; 1, shared with 15 V DC loop power supply or Cooling-side control output.
Current output	4 to 20 mA DC or 0 to 20 mA DC/ load resistance of 600 Ω or less
Current output accuracy (conversion accuracy from PV display on the set scale)	±0.1% of span (±5% of span for 1 mA or less)
The accuracy is that in the standard operating conditions	23±2°C, 55±10%RH, and power frequency at 50/60 Hz. This is not conversion accuracy through input and output but the performance of transmission output itself.
15 V DC Loop Power Supply Specifications
Power supply	14.5 to 18.0 V DC
Maximum supply current	About 21 mA (with short-circuit current limiting circuit)

Relay Contact Output Specifications
Contact type and number of outputs	Control output	contact point 1c; 1 point
	Cooling-side control output of Heating/cooling type	contact point 1c; 1 point
	Event output	contact point 1a; 3 points (common is independent)
Contact rating	Contact point 1c (control output)	250 V AC, 3 A or 30 V DC, 3A (resistance load)
	Contact point 1a (control output)	240 V AC, 3 A or 30 V DC, 3 A (resistance load)
	Contact point 1a (alarm output)	240 V AC, 1A or 30 V DC, 1 A (resistance load)
Use		Time proportional output, event output, alarm output, FAIL output, etc.
ime resolution of control output		10 ms or 0.1% of output, whichever is larger

Transistor Contact Output Specifications
Number of outputs	See the table of Model and Suffix Codes.
Output type	Open collector (SINK current)
Output contact rating	Max. 24 V DC, 50 mA
Output time resolution	Min. 200 ms
Use	Event output, alarm output, FAIL output, etc.

Position Proportional Output Specifications
Position signal input	Slide resistance	100 Ω to 2.5 kΩ of total resistance
	100% side and slide line	with disconnection detection
	0% side	without disconnection detection
	Current input	4 to 20 mA (with disconnection detection)
	Input resistance	about 330 Ω
Sampling period		50 ms
Measurement resolution		0.1% of input span
Position proportional relay output	UP35A	Contact point 1a; 2 points, 250 V AC, 3 A or 30 V DC, 3 A (resistance load)
Position proportional relay output	UP32A	Contact point 1a; 2 points, 240 V AC, 3 A or 30 V DC, 3 A (resistance load)

Heater Break Alarm Specifications
Number of inputs	2
Number of outputs	2 (transistor contact output)
Use	Measures the heater current using an external current transformer (CT) and generates a heater break alarm when the measured value is less than the break detection value.
Current transformer input resistance	About 9.4 Ω
Current transformer input range	0.0 to 0.1 Arms (0.12 Arms or more cannot be applied.)
Heater current setting range	OFF, 0.1 to 300.0 Arms
Heater current measured value display range	0.0 to 360.0 Arms Note: The CT ratio can be set. CT ratio setting range: 1 to 3300
Recommended CT	CT from U.R.D., Ltd.
CTL-6-S-H	CT ratio 800
measurable current range	0.1 to 80.0 Arms
CTL-12L-30	CT ratio 3000
measurable current range	0.1 to 180.0 Arms
Heater current measurement period	200 ms
Heater current measurement accuracy	±5% of current transformer input range span ± 1digit (CT error is not included.)
Heater current detection resolution	Within 1/250 of current transformer input range span
Break detection On-time	Min. 0.2 second (for time proportional output)

Transportation and Storage Conditions
Temperature		-25 to 70ºC
Temperature change rate		20ºC/h or less
Humidity		5 to 95% RH (no condensation allowed)
Effects of Operating Conditions
Effect of ambient temperature	Voltage or TC input	±1 µV/ºC or ±0.01% of F.S./ºC, whichever is larger
	Current input	±0.01% of F.S./ºC
	RTD input	±0.05ºC/ºC (ambient temperature) or less
	Analog output	±0.02% of F.S./ºC or less
Effect of power supply voltage fluctuation	Analog input	±0.05% of F.S. or less
	Analog output	±0.05% of F.S. or less (Each within rated voltage range)

Temperature / PID Controllers
Type (Controllers)	Digital
Size Rectangular	1/8 DIN
Max # Control Loops	1 EA
Control Methods (Controllers)	Heat / Cool, On / Off, PID, Position Proportional
Input Types (Controllers/Recorders)	Current / 4-20 mA, T/C - RTD, Voltage
Output Types (Controllers/Recorders)	Logic / SSR, Milliamp (mA), Relay
Max # Control Outputs	1
# Digit Display	5
Sampling Interval (Controllers/Recorders)	200 ms (200 MILISECONDS)
# Alarm Outputs (Controllers)	5
Display (Controllers)	LED, Multicolor
Special Functions (Controllers)	Auxiliary Input, Fuzzy Logic, Heater Break Alarm, Modbus Master, Modbus Slave, PC Software Available, Programmable Keys, Ramp / Soak Profile Pattern
Test Equipment General Attributes
Warranty	3 YEARS
Safety Approval	CE, CSA
Interfaces I/O	Analog Output, LAN / Ethernet, RS-485, Analog Input , Modbus Master, Modbus Slave, Profibus Interfaces I/O Communications optional
IP Rating	IP66
Product Weight	1.1 LBS
Power Supply Voltage	120V/220V Universal
Country of Origin	Korea
