The LL50A Parameters Setting Software is designed to build and set parameters, program pattern, ladder programs, and the like of the UTAdvanced digital indicating controllers from a PC. The tuning and monitoring of ladder programs are possible during communication with the controllers.

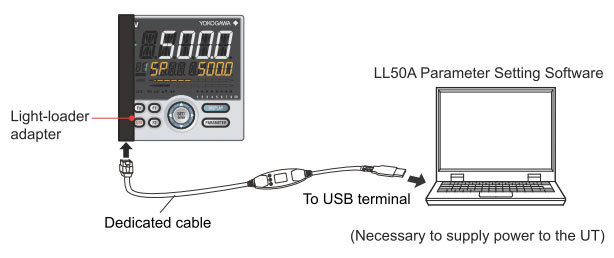

Connection with a Dedicated Adapter
Connect the dedicated cable to the dedicated adapter and then attach the dedicated adapter to the front of the controller.

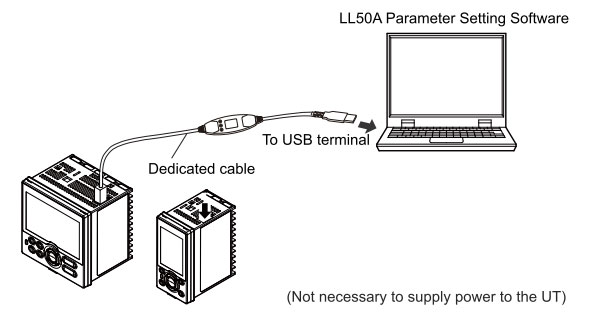

Connection with Dedicated Cable
This connection allows for setting parameters, writing ladder programs, and the like when the controller is not energized.

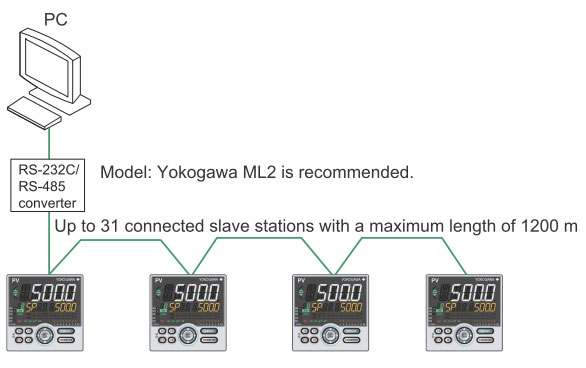

RS-485 Communication Terminal Connection

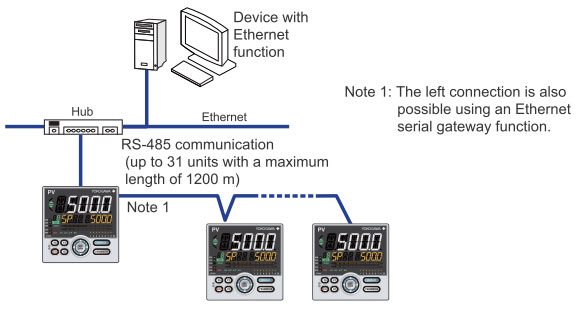

Ethernet Communication Connection
An Ethernet connection is also possible using controllers with an RS-485 communication function and an Ethernet/RS-485 converter (Yokogawa VJET is recommended).
Applicable Controllers
- UT75A digital indicating controller
- UT55A digital indicating controller
- UT52A digital indicating controller
- UT35A digital indicating controller
- UT32A digital indicating controller
- UP55A program controller
- UP35A program controller
- UM33A digital indicator with alarms
