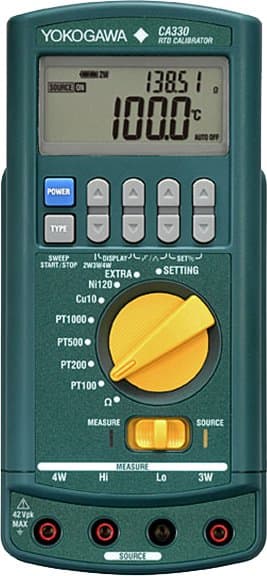

Yokogawa CA330 RTD Process Calibrator

0 reviews | Model: Yokogawa CA330

Yokogawa CA330 RTD Process Calibrator

Compare

RTD Simulate Model

Basic accuracy: 0.3°C (Typical of PT100)
Corresponds to 14 types of RTD standard (JIS/IEC/GOST R)
Sub display displays value of resistance source and span%
Corresponds to various types of source pattern (Step sweep/ Linear sweep/ Manual step/ Span check)
Corresponds to 2,3,4 wire. Realizes RTD simulation
Measures output of RTD sensor as a thermometer

View Product Details

In Stock:

View Payment Options

Call Us

Items in This Series



Product	Yokogawa CA330 RTD Simulate Model	Yokogawa CA310 Voltage and Current Simulate Model	Yokogawa CA320 Thermocouple Simulate Model
Price
In Stock
Battery Life	55 HR	50 HR	55 HR
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Yokogawa CA330 Accessories

Choose a Category

for the Yokogawa CA330

Yokogawa 98035 Lead Cable For CA330, Red x 3PCS, Black x 1pcs

(0)

In Stock! Contact us for price

Call Us

Yokogawa 98040 Lead Cables For CA320, Red Black Alligator Clip Cable 1.7m

(0)

In Stock! Contact us for price

Call Us

Yokogawa 99045 Binding Post (Red Black) For CA320/CA330 1 short plate attached

(0)

In Stock! Contact us for price

Call Us

Yokogawa 99046 Binding Post (Red Black) For CA330 1 short plate attached

(0)

In Stock! Contact us for price

Call Us

Yokogawa B9108NK Carrying Case

Catalog: B9108NK

(0)

In Stock! Contact us for price

Call Us

Yokogawa B9108XA 2406, MY10, MY40, CA11, CA12, CA51, CA71 and CA150 Accessory Case

Catalog: B9108XA

(0)

In Stock! Contact us for price

Call Us

Yokogawa 90040 TC Mini Plug Set 1 K (Yellow) /E (Violet) /J (Black) /T (Blue) /R, S...

(0)

In Stock! Contact us for price

Call Us

Yokogawa 90045 TC Mini Plug Set 2 K (Yellow) /E (Violet) /J (Black) /T (Blue)

(0)

In Stock! Contact us for price

Call Us

Yokogawa 93060 Rubber Boots For protection of main unit

(0)

In Stock! Contact us for price

Call Us

Yokogawa 97040 Strap for CA11E and CA12E

(0)

In Stock! Contact us for price

Call Us

Yokogawa 98064 CA450 Lead Cable - Alligator Clip, Cat I, for control signal only under 50V

(0)

In Stock! Contact us for price

Call Us

Yokogawa 90080 RJ Sensor

(0)

In Stock! Contact us for price

Call Us

Yokogawa PROCESS CALIBRATOR CA300 SERIES

Yokogawa-CA330-tn

The CA300 Series is a high accuracy source and measure portable handheld calibrator used to inspect and maintain the accuracy of control devices such as temperature controllers, temperature transmitters, temperature sensors and other process devices which are used in process plants, industry machinery, and manufacturing. Available in 3 models, the CA310, CA320, and CA330 provide an ergonomic and friendly user-interface making it easy to use

Useful function installed

	Addition of sub display The sub display additionally displays span%, source value of voltage or resistance, while the main displays setting value.
	Corresponds to 2WAY Power supply Power is supplied by 2 ways : AA Alkaline batteries or AC Adapter

Supports efficient operation with various types of source pattern

	Step sweep function Sources by 25% step automatically from 0% to 100% of span which improves efficiency of operation. It can correspond to various response time of field devices. (15/30/45/60 seconds)
	Manual step function Sources by 25% step manually from 0% to 100% of span.
	Linear sweep function Sources continuously from 0% to 100% and is capable to check meter and make linearity tests. Sweep time can be selected by 15/30/45/60 seconds.
	Span check function Switches sources 0%ó100% by one touch. With this function, it makes it simple to make adjustment and to inspect the open and close operation of valves.

Corresponds to various application

Yokogawa CA310
	20mA SIMULATE CA310 is capable to execute a loop check by simulating a transmitter, sinking the current signal from the external source (distributor). It achieves the high accuracy 0.015% of setting to source 4-20mA.
	Two-wire Transmitter Loop Check DC mA signals can be measured by supplying power to the transmitter from a 24 V DC power supply. DC mA measurement and zero-point check can be performed with an accuracy of 0.015% of reading. A 250-ohm resistor for HART and BRAIN communication is included in this calibrator so there is no need to attach an external resistor when connecting to a handy terminal.
Yokogawa CA320
	TC SIMULATE CA320 corresponds to 16 types of TC for sourcing. It achieves the high basic accuracy of 0.5°C (typical of type K), three times better than the previous model which enables it to operate a highly reliable test. Additionally, the difference of temperature between objects can be compensated, by using external RJ sensor or a compensating lead wire.
	TC MEASURING CA320 can measure the output of TC like a thermometer. It achieves the basic accuracy of 0.5°C (typical of type K), three times better than the previous model and is for multiple use for process temperature measuring by corresponding to 16 types of TC.
Yokogawa CA330
	RTD SIMULATE CA330 corresponds to 14 types of RTD for sourcing. It achieves the high basic accuracy of 0.3°C (typical of type PT100), twice better than the previous model which enables it to operate a high reliable test.
	RTD MEASURING CA330 can measure the output of RTD like a thermometer. It achieves the basic accuracy of 0.3°C (typical of type PT100), twice better than the previous model and is for multiple use of process temperature measuring by corresponding to 14 types of RTD.

Basic specification (Source/ Measure) CA330
RTD Source/Measure
RTD		Coefficient	Accuracy (1 year)			Excitation current	Standard or Regulation
			Source/Meas. Temp.	Source Accuracy [°C]	Meas. Accuracy [°C]
PT100		3851	-200.0°C ≤ t < 0.0°C	0.3	0.3	0.1-3mA	IEC60751 JIS C 1604
			0.0°C ≤ t ≤ +800.0°C	0.3+tx0.033%	0.3+tx0.033%
		3850	-200.0°C ≤ t < 0.0°C	0.3	0.3	0.1-3mA	JIS C 1604 1989 (Pt100)
			0.0°C ≤ t ≤ +630.0°C	0.3+tx0.033%	0.3+tx0.033%
		3916	-200.0°C ≤ t < 0.0°C	0.3	0.3	0.1-3mA	JIS C 1604 1989 (JPt100)
			0.0°C ≤ t ≤ +510.0°C	0.3+tx0.033%	0.3+tx0.033%
		3926	-200.0°C ≤ t < 0.0°C	0.3	0.3	0.1-3mA	Minco Application Aid #18
			0.0°C ≤ t ≤ +630.0°C	0.3+tx0.033%	0.3+tx0.033%
PT200		3851	-200.0°C ≤ t < 0.0°C	0.3	0.3	0.05-0.8mA	IEC60751
			0.0°C ≤ t ≤ +630.0°C	0.3+tx0.050%	0.3+tx0.050%
PT500		3851	-200.0°C ≤ t < 0.0°C	0.4	0.4	0.05-0.6mA	IEC60751
			0.0°C ≤ t ≤ +630.0°C	0.4+tx0.033%	0.4+tx0.033%
PT1000		3851	-200.0°C ≤ t < 0.0°C	0.2	0.2	0.05-0.6mA	IEC60751
			0.0°C ≤ t ≤ +630.0°C	0.2+tx0.033%	0.2+tx0.033%
Cu10		427	-100.0°C ≤ t ≤ +260.0°C	1.5	1.5	0.1-3mA	Minco Application Aid #18
Ni120		627	-80.0°C ≤ t ≤ +260.0°C	0.2	0.2	0.1-3mA	Minco Application Aid #18
Extra RTD	PT50	3851	-200.0°C ≤ t < 0.0°C	0.4	0.4	0.1-3mA	IEC60751
			0.0°C ≤ t ≤ +630.0°C	0.4+tx0.050%	0.4+tx0.050%
	PT50G	-	-200.0°C ≤ t < 0.0°C	0.4	0.4	0.1-3mA	GOST R 8.625-2006
			0.0°C ≤ t ≤ +800.0°C	0.4+tx0.050%	0.4+tx0.050%
	PT100G	-	-200.0°C ≤ t < 0.0°C	0.3	0.3	0.1-3mA	GOST R 8.625-2006
			0.0°C ≤ t ≤ +630.0°C	0.3+tx0.033%	0.3+tx0.033%
	Cu50M	-	-180.0°C ≤ t < 0.0°C	0.4	0.4	0.1-3mA	GOST R 8.625-2006
			0.0°C ≤ t ≤ +200.0°C	0.4+tx0.050%	0.4+tx0.050%
	Cu100M	-	-180.0°C ≤ t < 0.0°C	0.3	0.3	0.1-3mA	GOST R 8.625-2006
			0.0°C ≤ t ≤ +200.0°C	0.3+tx0.033%	0.3+tx0.033%
Accuracy is specified at ambient temperature (Ta) of 23±5°C. Temperature effect: 0.05°C/°C is added for other ambient temperature (Ta<18°C, Ta > 28°C) The display resolution for source / measure is 0.1°C Above accuracy is specified for 4 wire measuring. Accuracy for 3 wire measuring: 1.0°C to Cu10; 0.6°C to Pt50, Pt50G and Cu50M; 0.3°C to other RTD is each added, on condition the resistance of all cables are the same. Accuracy for 2 wire measuring: Same with 3 wire measuring excluding resistance of cables. About formula of accuracy The accuracy of source or measuring are defined by constant value or formula of linear expression. Example) Accuracy of PT100(3851) at measuring point of 100.0°C is ±(0.3+100.0x0.033%)°C=±0.333°C

General Specifications
Display:	Segment LCD
Backlight:	LED (Selection of “Constantly ON”, “Constantly OFF” or “Auto off by approx. 2min”)
Battery life:	55 hours (20mA source, load under 5V)
Automatic Power-off:	Approximately 20 minutes (Can be disabled by setting)
Display Refresh Rate:	Approx 1 sec.
Level Setting Response of generator:	Approximately 1 second (from when the output begins to change until when the output level falls within the specified accuracy)
Dimensions:	Approximately Approx. 90 (W)×192 (H)×42 (D)
Weight:	Approximately 440 g
Operating temperature/humidity:	-10 to 55°C and 20 to 80%RH (no condensation)
Storage temperature:	-20 to 60°C and 90%RH or less (no condensation

Tech Specs

Process / Calibration/Temperature Calibration/RTD Calibrators Template
RTD Types	11
Temperature Range	1472 F
Battery Life	55 HR
Test Equipment General Attributes
Product Weight	440 GRAMS (0.970 LBS)
HTS/Schedule B Number	9030.39.0100
ECCN Number	EAR99
Battery Type	AA
Power Supply Voltage	Battery Powered
