Yokogawa 240635 Analog Insulation Tester, 250V/500M ohm, 500V/1,000M ohm, 1,000V/2,000M ohm, 600V

Name: Yokogawa 240635 Analog Insulation Tester, 250V/500M ohm, 500V/1,000M ohm, 1,000V/2,000M ohm, 600V
Brand: Yokogawa
SKU: Yokogawa240635
Price: 474.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | Model: Yokogawa 240635

Compare

Analog 250V/500M ohm, 500V/1,000M ohm, 1,000V/2,000M ohm, 600V

Analog models with tow and three ratings
AC voltage measurement
Automatic discharge
Sky blue EL backlight
Increased safety (Covered battery charger)

View Product Details

List Price: $474.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cases
General Accessories

for the Yokogawa 240635

Yokogawa B9075MU Hard Case with Probe Case (2406D and E)

Catalog: B9075MU

(0)

In Stock!

Add to Cart

Yokogawa B9108XA 2406, MY10, MY40, CA11, CA12, CA51, CA71 and CA150 Accessory Case

Catalog: B9108XA

(0)

In Stock!

Add to Cart

Yokogawa 321803 Lead for Terminal Guard (2406D and E; 2426A; 3213A)

Catalog: 321803

(0)

In Stock!

Add to Cart

Yokogawa B9204FX Probe with Switch (2406D and E; 2426A)

Catalog: B9204FX

(0)

In Stock!

Add to Cart

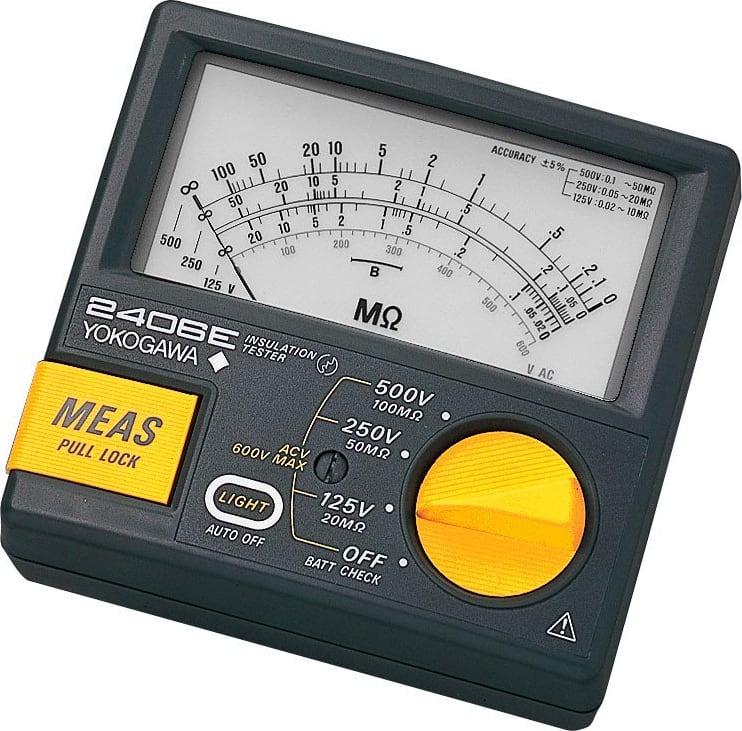

The Yokogawa 2406E Series Analog Insulation Testers have two and three ratings available. The 2406E has a max AC voltage measuring range of 0 to 600V. The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite (∞) scale value. Under this condition, the tester is ready to enter voltage measurement mode.

Testing Performance Specifications
Model	Rating	Measuring Range	AC Voltage Measuring Range
240631 240641	25V/5MΩ 50V/10MΩ 125V/20MΩ	0.001 to 5MΩ 0.005 to 10MΩ 0.01 to 20MΩ	0 to 300V
240632 240642	125V/20MΩ 250V/50MΩ	0.01 to 20MΩ 0.01 to 50MΩ	0 to 300V
240633 240643	125V/20MΩ 250V/50MΩ 500V/100MΩ	0.01 to 20MΩ 0.01 to 50MΩ 0.05 to 100MΩ	0 to 600V
240634 240644	250V/50MΩ 500V/100MΩ 1000V/2000MΩ	0.01 to 50MΩ 0.05 to 100MΩ 1 to 2000MΩ	0 to 600V
240635 240645	250V/50MΩ 500V/100MΩ 1000V/2000MΩ	0.01 to 50MΩ 0.05 to 100MΩ 1 to 2000MΩ	0 to 600V
24064:EL-backlit, 24063:Non-backlit
Scale length		Approx. 86 mm (outer scale)
Discharge function		The tester automatically begins discharge when you turn off the MEAS switch. The pointer swings if there is any residual voltage in the circuit under test. You can make sure discharge is complete by checking that the pointer swings back to the infinite scale value. Under this condition, the tester is ready to enter voltage measurement mode.
AC voltage measurement		AC voltage measurement is possible wherever the rotary switch is positioned.
Dimensions (main unit)		Approx. 120 (W) X 110 (H) X 60 (D) (mm)
Weight		Approx. 500 g (including batteries)
Batteries		Six AA (R6P) batteries

Standard Test Conditions
Ambient Temperature/Humidity Ranges	23 ±5 /45-75% RH
Position of Use	Horizontal (5º max. of angle of inclination)
External Magnetic Fields	None Battery voltage: Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)
Tolerance Mentioned Conditions	Resistance measurement: First effective measuring range = ±5% of reading Second effective measuring range = ±10% of reading Infinite and zero scale values: 0.7% max. of scale length AC voltage: ±10% of maximum scale value No-load voltage: 130% max. of rated voltage Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range Short-circuit current: 12 mA max.

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
Maximum Insulation Resistance	2000 M Ohms (2 G Ohms)
Continuity Test	No
Live Circuit Voltage Detection	Yes
Timer	No
Test Equipment General Attributes
Unique Features	Automatic disharge and backlit display
Warranty	12 MONTHS (1 YEARS)
Product Weight	500 GRAMS (1.10 LBS) Product Weight including batteries
Product Height	60 MM (2.36 IN)
Product Length	120 MM (4.72 IN)
Product Width	110 MM (4.33 IN)
Data Logging	No
HTS/Schedule B Number	9030.33.0040
ECCN Number	EAR 99
Country of Origin	Japan

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying 1 review

Most Helpful First | Newest First

Recommend to a Friend

Yokogawa 2406E

5.0

Recommend this product as it is one of the best insulation testers for its price in the market. All engineers in our headquarters use this product and have been for many years. Just received mine last week and looking forward to using it.

Verified Purchase Songwon Suh on Jul 23, 2014
