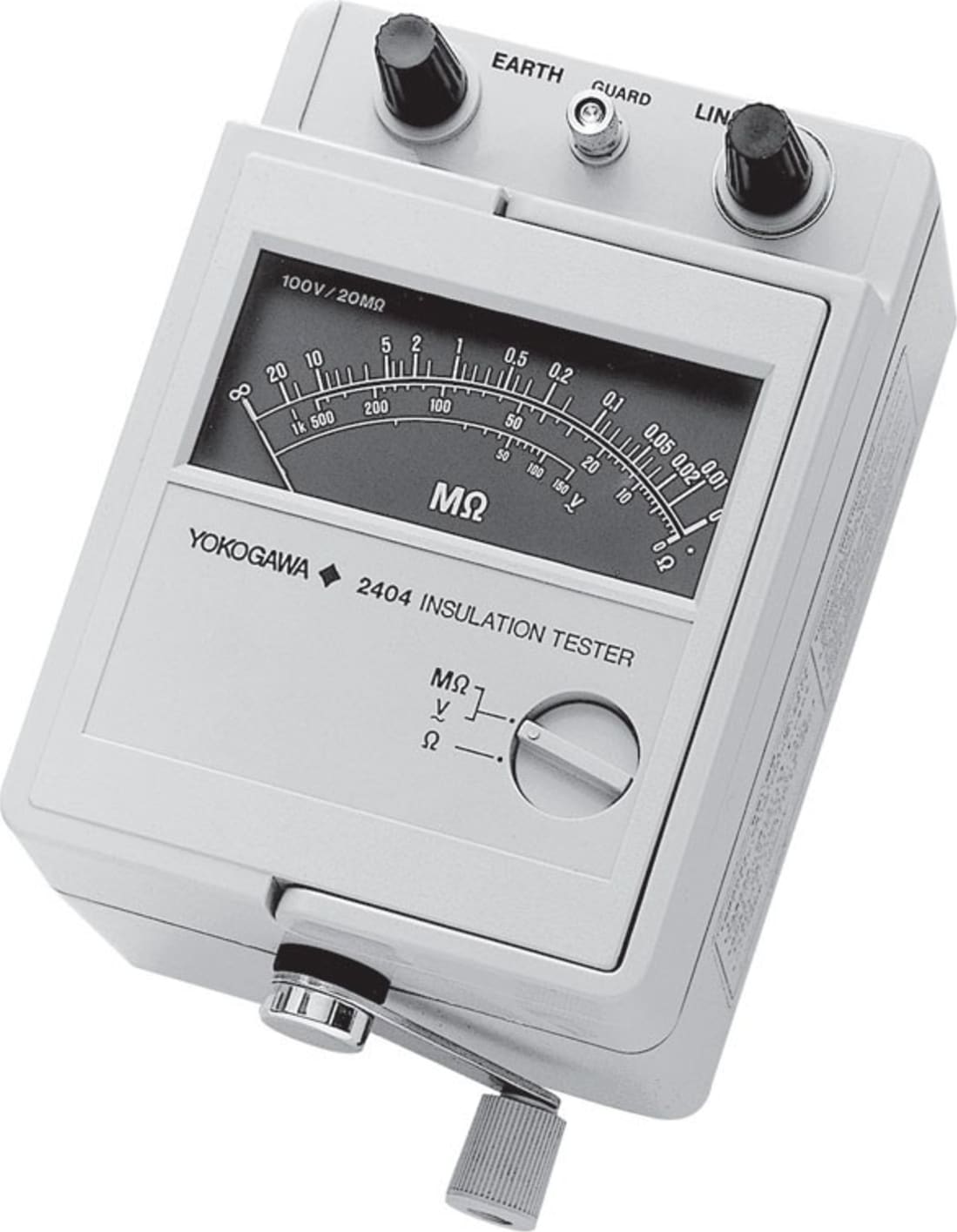

Yokogawa 240415 Hand Crank Insulation Tester, Analog 1,000V/2,000M ohm

0 reviews | Model: Yokogawa 240415

Yokogawa 240415 Hand Crank Insulation Tester, Analog 1,000V/2,000M ohm

Compare

Hand Crank, Analog 1,000V/2,000M ohm

240415 Hand Crank, Analog 1,000V/2,000M ohm
The 2404 is a reliable, hand-driven insulation tester using a DC-DC converter.
The 2404 includes a number of useful and easy-to-use feature.
Six different models are available for different test voltage (DC) and MO ranges.

View Product Details

List Price: $778.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cases
General Accessories

for the Yokogawa 240415

Yokogawa B9600HA Case for 3213

Catalog: B9600HA

(0)

In Stock! Contact us for price

Call Us

Yokogawa 321803 Lead for Terminal Guard (2406D and E; 2426A; 3213A)

Catalog: 321803

(0)

In Stock! Contact us for price

Call Us

Yokogawa B9600GN General Purpose Probe Tip #1

Catalog: B9600GN

(0)

In Stock! Contact us for price

Call Us

Yokogawa B9600NV Probe Tip Storage Bag

Catalog: B9600NV

(0)

In Stock! Contact us for price

Call Us

Yokogawa B9600NW Probe Tip with Hook #2

Catalog: B9600NW

(0)

In Stock! Contact us for price

Call Us

Yokogawa B9600NX Probe Tip Extension #3

Catalog: B9600NX

(0)

In Stock! Contact us for price

Call Us

Yokogawa B9600NZ Probe Tip Pointed #5

Catalog: B9600NZ

(0)

In Stock! Contact us for price

Call Us

240415 Hand Crank, Analog 1,000V/2,000M ohm

The 2404 insulation tester is a reliable, hand-driven insulation tester using a DC-DC converter. The 2404 includes a number of useful and easy-to-use features.
Six different models are available for different test voltages (DC) and MΩ ranges. With the exception of the 240415 and 240416, all models provide a convenient continuity range of 0 to 500Ω full scale.

Hioki - IR5051-90

General Specifications
	240413	240414	240415	240416
Testing Voltage (DC)/MΩ Range	500 V/100 MΩ	500 V/1000 MΩ	1000 V/2000 MΩ	2000 V/5000 MΩ
AC Voltage Measurement	0 to 300 V
Continuity Range	0 to 500 Ω		-	-
Width	112 mm
Height	184 mm
Depth	105 mm
Weight	1.3 kg
Accuracy	AC voltage measurement - ±10% of full scale Insulation resistance measurement - ±5% of indicated value in effective measuring range 1, ±10% of indicated value in effective measuring range 2, less than 0.7% of scale length at zero and infinity Low resistance measurement - less than 5% of full scale
Approx. Scale Length	3 1/2 in 88 mm
Measuring Terminal Voltage	More than 90% of testing voltage at center scale, or ±10% of testing voltage at infinity (at handle speed of more than 120 rpm)
Min. Rotational Speed of Handle	120 rpm
Case	Polycarbonate resin, green-yellow
Insulation Resistance	More than 50 MΩ at 500 V DC between electric circuits and case/handle
Dielectric Strength	2000 V AC (100 to 1000 V models) or 3000 V AC (2000 V model) for one minute between electric circuits and case/handle
Accessories Supplied at No Extra Cost	B9634FF carrying case, spare fuses (for low Ω measurements) - 2 pcs., built in 240411 to 240414
Optional Accessories	B9634FA test leads (1 set/unit)

Tech Specs

Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template
IR Test Voltage	1,000 V
Maximum Insulation Resistance	2000 M Ohms (2 G Ohms)
Type	Hand Crank
Variable Incremental Voltage	No
Display (Megohmmeter)	Analog
Continuity Test	No
Live Circuit Voltage Detection	Yes
Timer	No
Test Equipment General Attributes
Warranty	12 MONTHS (1 YEARS)
Product Weight	2.9 LBS
Product Height	7.2 IN
Product Length	4.1 IN
Product Width	4.4 IN
Shipping Weight	6 LBS
Data Logging	No
HTS/Schedule B Number	9030.33.0040
ECCN Number	EAR 99
Calibration Included	Factory Calibration
Country of Origin	Brazil
Shipping Height	7 IN
Shipping Length	11 IN
Shipping Width	9 IN
