Yokogawa 205101 DC Ammeter, Miniature-size Portable, 30/10/300/1,000/3,000 micro A

Name: Yokogawa 205101 DC Ammeter, Miniature-size Portable, 30/10/300/1,000/3,000 micro A
Brand: Yokogawa
SKU: Yokogawa205101
Availability: InStock

0 reviews | Model: Yokogawa 205101

Yokogawa Portable Ammeters and Voltmeters 2051

Compare

DC Ammeter, Miniature-size Portable, 30/10/300/1,000/3,000 micro A

DC Ammeter, Miniature-size Portable, 30/10/300/1,000/3,000 micro A
Useful for both high-sensitivity and large-volume measurements
Measurement ranges to DC: 30µA~30A, 0.3V~300V and AC: 500 µA~25 A, 3V~300V
Taut-band suspension system eliminates friction and provides strong resistance to shock impact.
Small and lightweight, with easy-to-read mirrored scale

View Product Details

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cases
DMM Probe Kits

for the Yokogawa 205101

Yokogawa 229102 Carrying Case for 2051, 2052, 2053

Catalog: 229102

(0)

In Stock! Contact us for price

Call Us

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Yokogawa 205101 DC Ammeter, Miniature-size Portable, 30/10/300/1,000/3,000 µA

Taut-band suspension system
Measurement ranges to DC: 30µA - 30A, 0.3V~300V and AC: 500 µA - 25 A, 3V~300V
Useful for both high-sensitivity and large-volume measurements
Small and lightweight, with easy-to-read mirrored scale

The E series of miniature portable Ammeters & Voltmeters consist of JIS C 1102-2 Class 1.0 and Class 1.5 instruments. The taut-band suspension system is used in the moving parts of models 2051 and 2052 to eliminate friction and provide strong resistance to shock impact.

These instruments are functional and compact, making them suitable for labs at research centers and schools. They are also very useful for factory setups in which numerous instruments are arranged on a small tabletop area, and they are small enough to be carried for maintenance service use.

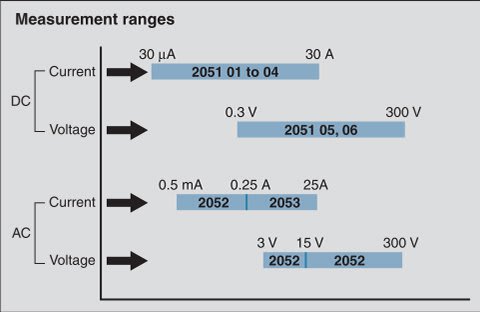

Measurement Ranges

Yokogawa Miniature Portable Ammeters and Voltmeters 2051, 2052, 2053 Specifications
Operating principle:	2051 Permanent magnet moving coil type 2052 Rectifier type (approximating RMS rectifier type for 15~300 V) 2053 Moving iron type
Class:	JIS C 1102 2051 - Equivalent to Class 1.0 2052, 2053 - Equivalent to Class 1.5
Scale length:	Approximately 88 mm (deflection angle: 90°)
Needle:	Bladed needle (red)
Operating position:	Horizontal
Rated Frequency:	50/60 Hz
Operating temperature and humidity ranges:	0 to 40°C, 25 to 80%RH
Storage temperature and humidity ranges:	-10 to 50°C, 25 to 80%RH
Insulation test:	Between electrical circuit and the case DC 500V/More than 10M Ω
Voltage test:	Between electrical circuit and the case AC 2000 V for 5 seconds
External dimensions and weight:	Approximately 113 x 106 x 46 mm Approximately 0.35 kg

Model	Maximum scale value	Approximate internal resistance, consumed power
Single Deflecting Meter
2051 01	30//100/300/1000/3000 µ A DC	5/6.8/2.8/0.9/0.3 k Ω
2051 02	0.3/1/3/10/30 mA DC	970/390/140/43/14 Ω
2051 03	10/30/100/300/1000 mA DC	4/1.4/0.4/0.14/0.04 Ω
2051 04	0.3/1/3/10/30 A DC	0.14/0.04/0.014/0.004/0.001 Ω
2051 05	0.3/1/3/10/30 V DC	100 µ A (10 k Ω /V)
2051 06	3/10/30/100/300 V DC	100 µ A (10 k Ω /V)
2052 01	0.5/1/2.5 mA AC	3 V
2052 02	2.5/5/10 mA AC
2052 03	10/25/50 mA AC
2052 04	50/100/250 mA AC
2052 05	3/7.5/15 V AC	1 mA
2052 06	15/30/75 V AC
2052 07	75/150/300 V AC
2053 01	0.25/0.5/1 A AC	1/1/1 VA
2053 02	1/2.5/5 A AC	0.9/0.8/0.7 VA
2053 03	5/10/25 A AC	0.6/0.9/2.3 VA
Zero-Centermeter
2051 11	± 0.15/0.5/1.5/5/15 mA DC	970/390/140/43/14 Ω
2051 12	± 0.3/1/3/10/30 mA DC	1170/400/135/40/14 Ω
2051 13	± 5/15/50/150/500 mA DC	4/1.4/0.4/0.14/0.04 Ω
2051 14	± 10/30/100/300/1000 mA DC	4/1.5/0.4/0.15/0.04 Ω
2051 15	± 0.15/0.5/1.5/5/15 A DC	0.14/0.04/0.014/0.004/0.001 Ω
2051 16	± 0.3/1/3/10/30 A DC	0.15/0.14/0.11/0.004/0.001 Ω
2051 17	± 0.15/0.5/1.5/5/15 V DC	50 µ A (20 k Ω /V)
2051 18	± 0.3/1/3/10/30 V DC	100 µ A (10 k Ω /V)
2051 19	± 1.5/5/15/50/150 V DC	50 µ A (20 k Ω /V)
2051 20	± 3/10/30/100/300 V DC	100 µ A (10 k Ω /V)
