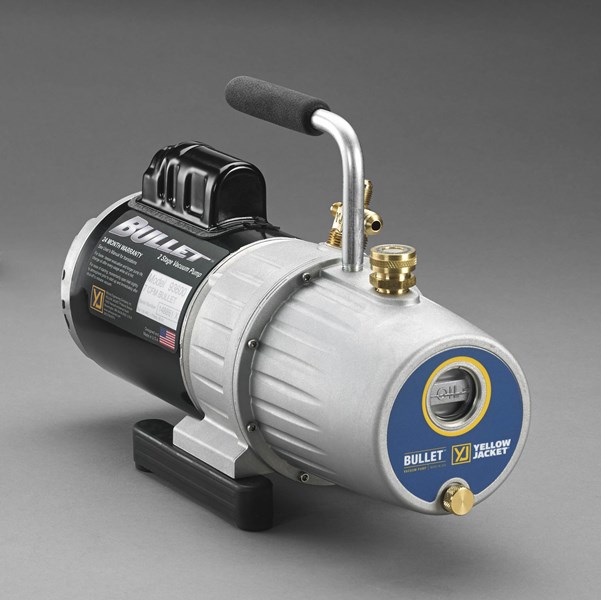

Yellow Jacket 93600-OB HVAC Vacuum Pumps - Number of Stages (Pumps): 2, Vacuum (Vacuum Pumps): 7.0 cfm, Line Power (Pumps): 110-120 VAC

Name: Yellow Jacket 93600-OB HVAC Vacuum Pumps - Number of Stages (Pumps): 2, Vacuum (Vacuum Pumps): 7.0 cfm, Line Power (Pumps): 110-120 VAC
Brand: Yellow Jacket
SKU: Yellow93600-OB
Price: 456.36 USD
Availability: InStock

0 reviews | Catalog: 93600-OB | UPC: 686800936000 | Model: Yellow Jacket 93600-OB

Compare

BULLET 7 CFM 115VAC/60HZ - This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.

This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit.
Wide mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust; threaded to attach garden hose for exhausting to remote location
Large oil sight glass for easy monitoring of oil level
Large brass oil drain for easy access to fast oil changes
Internal intake check valve to help prevent oil backup into the system during a power failure
Intake filter screen keeps damaging particles from entering the pump
Heavy-duty rotors and bearings
Heavy-duty steel handle for well-balanced carrying
Tethered port caps stay with the pump
Stable base; wide-stance metal with rubber overlay
Made in the USA
Free air displacement: 7.0 cfm

View Product Details

List Price: $533.94

In Stock:

View Payment Options

Recommended for you

Bullet 2 Stage Vacuum Pump

Yellow Jacket 93600 - Bullet 2 Stage Vacuum Pump, 7.0 CFM

The Yellow Jacket Bullet vacuum pump is an affordable option for HVAC technicians who know the importance of pulling a deep vacuum. The Bullet pulls down to 25 microns or better, protecting from contaminants and non-condensable gases in the HVAC system, which can damage components, reduce efficiency and cause system failure.

Wide mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust; threaded to attach garden hose for exhausting to remote location
Large oil sight glass for easy monitoring of oil level
Large brass oil drain for easy access to fast oil changes
Internal intake check valve to help prevent oil backup into the system during a power failure
Intake filter screen keeps damaging particles from entering the pump
Heavy-duty rotors and bearings

Bullet 2 Stage Vacuum Pump
Domestic	Model 93603	Model 93605	Model 93600
Free air displacement	3.0 cfm	5.0 cfm	7.0 cfm
Number of stages	2-stage rotary vane	2-stage rotary vane	2-stage rotary vane
Field blankoff	25 microns	25 microns	25 microns
Intake	1/4" x 3/8" x 3/8"	1/4" x 3/8" x 3/8"	1/4" x 3/8" x 3/8"
Motor	1/2 hp - 1725 rpm	1/2 hp - 1725 rpm	1/2 hp - 1725 rpm
Thermal overload protection	Yes	Yes	Yes
Voltage (single phase)	115V/60 Hz	115V/60 Hz	115V/60 Hz
Power cord	6' - motor mounted switch - U.S. plug	6' - motor mounted switch - U.S. plug	6' - motor mounted switch - U.S. plug
Oil capacity	33.5 oz. (0.991 L)	30 oz. (0.9 L)	28 oz. (0.828 L)
Dimensions	16.25" L x 6.25" W x 8.25" H (41.3 cm x 15.9 cm x 21 cm)	16.25" L x 6.25" W x 8.25" H (41.3 cm x 15.9 cm x 21 cm)	16.25" L x 6.25" W x 8.25" H (41.3 cm x 15.9 cm x 21 cm)
Net weight	29.1 lbs. (13.2 kg)	30.0 lbs. (13.6 kg)	31.6 lbs. (14.3 kg)

Tech Specs

HVAC Equipment and Instruments/HVAC Vacuum Pumps
Number of Stages (Pumps)	2
Vacuum (Vacuum Pumps)	7.0 CFM
Line Power (Pumps)	110-120 VAC
General Attributes
Product Height	8.40 IN
Product Length	19.00 IN
Product Width	12.90 IN
Shipping Height	8.40 IN
Shipping Length	19.00 IN
Shipping Width	12.90 IN
