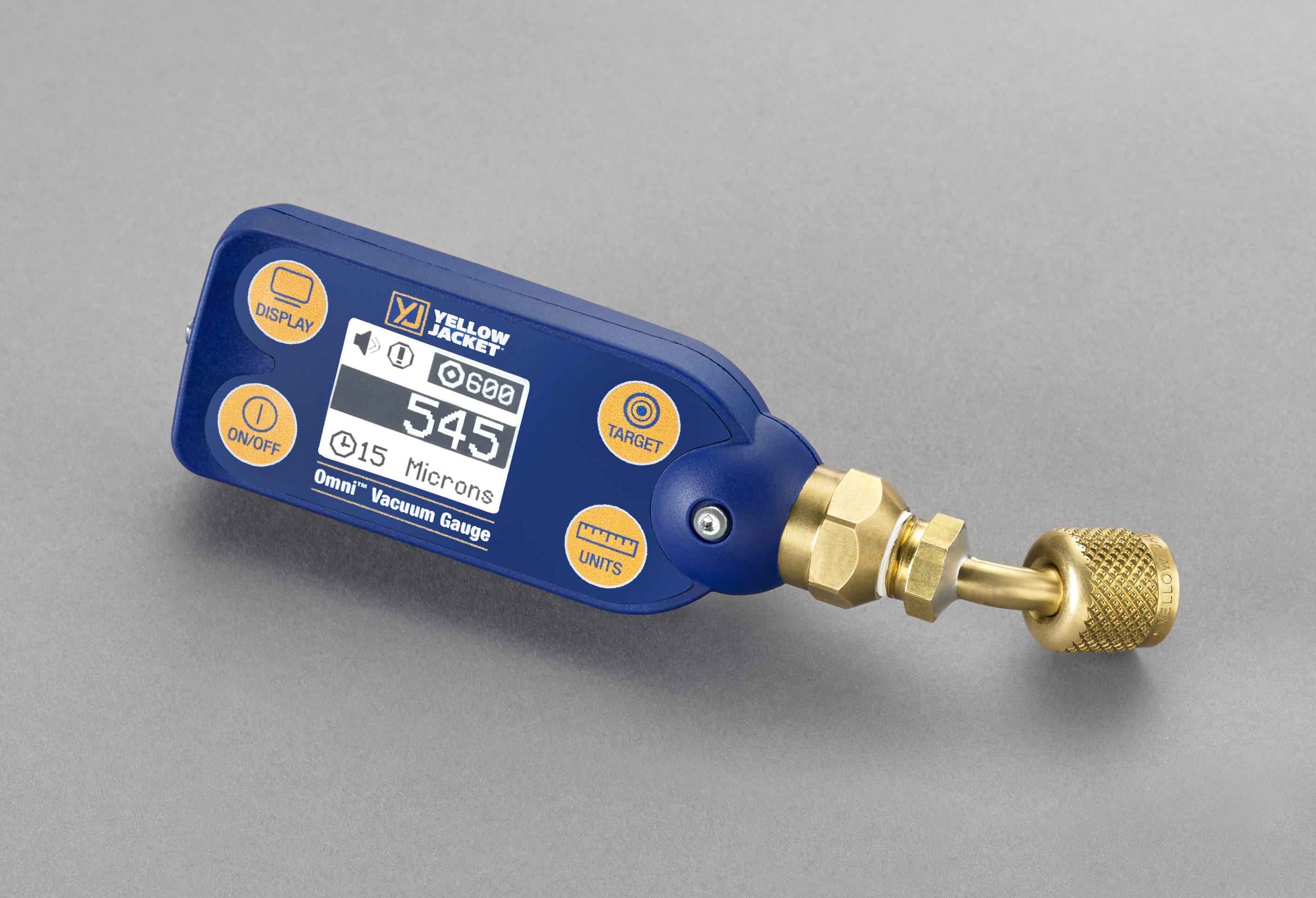

Yellow Jacket 69021 Omni Digital Vacuum Gauge with 5/16" Coupler

Name: Yellow Jacket 69021 Omni Digital Vacuum Gauge with 5/16" Coupler
Brand: Yellow Jacket
SKU: Yellow69021
Price: 174.23 USD
Availability: InStock

0 reviews | Catalog: 69021 | UPC: 686800690216 | Model: Yellow Jacket 69021

Compare

Omni Digital Vacuum Gauge with 5/16 Coupler

Audio and visual signal when target vacuum level is reached
Electronic paper display for clear visibility - even in direct sunlight
Rich and intuitive user interface - turn it on and its ready to use with default settings
45° degree bend for fitting
Automatic power down and time out
Power savings - multiple time-out selections
Low battery indicator and automatic power-down when inactive
Adapter fittings available
One year warranty
Made in U.S.A.

View Product Details

List Price: $203.85

Your Price: $174.23

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Yellow Jacket 69021 Omni Digital Vacuum Gauge with 5/16 Coupler	Yellow Jacket 69020 OMNI VACUUM GAUGE 1/4
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Yellow Jacket 69021 - Omni Digital Vacuum Gauge with 5/16" Coupler

Turn it on and it's ready to use
45° degree bend for fitting
Sensor handles 450 psi positive pressure
Reads several units of vacuum (microns, millibar, Torr and Pascal)

The YELLOW JACKET Omni Digital Vacuum Gauge is an easy-to-use, compact vacuum gauge that is loaded with features for the price. And it's rugged, too. Made with high impact, glass reinforced housing, it survives moisture and accidental drops or attachment to a high pressure line. The easy-to-clean vacuum sensor handles 450 psi positive pressure and reads several units of vacuum (microns, millibar, Torr, and Pascal).

Specifications
Vacuum Reading Resolution	1 micron (from 1,000 to 5 microns) 10 microns (from 10,000 to 1,000 microns) 100 microns (from 25,000 to 10,000 microns)
Display Vacuum Accuracy	+/- 20% of reading
Vacuum Reading Range	5 to 25,000 Microns (33.3 mBar, 25 Torr, 3330 Pa) Progress bar-graph from Atmosphere (ATM) to 25,000 Microns
Proof Pressure	450 psi
Working Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Working humidity	0-95% RH (non-condensing) IP
Class	IP-50
Battery Life	100+ hours continuous
Battery	(2) AAA batteries (included)
Size	6" long x 1.6" wide x 1.6" thick including fitting (15.3 x 4 x 4 cm)
Weight	0.39 lb (175 grams)
Warranty	One year
