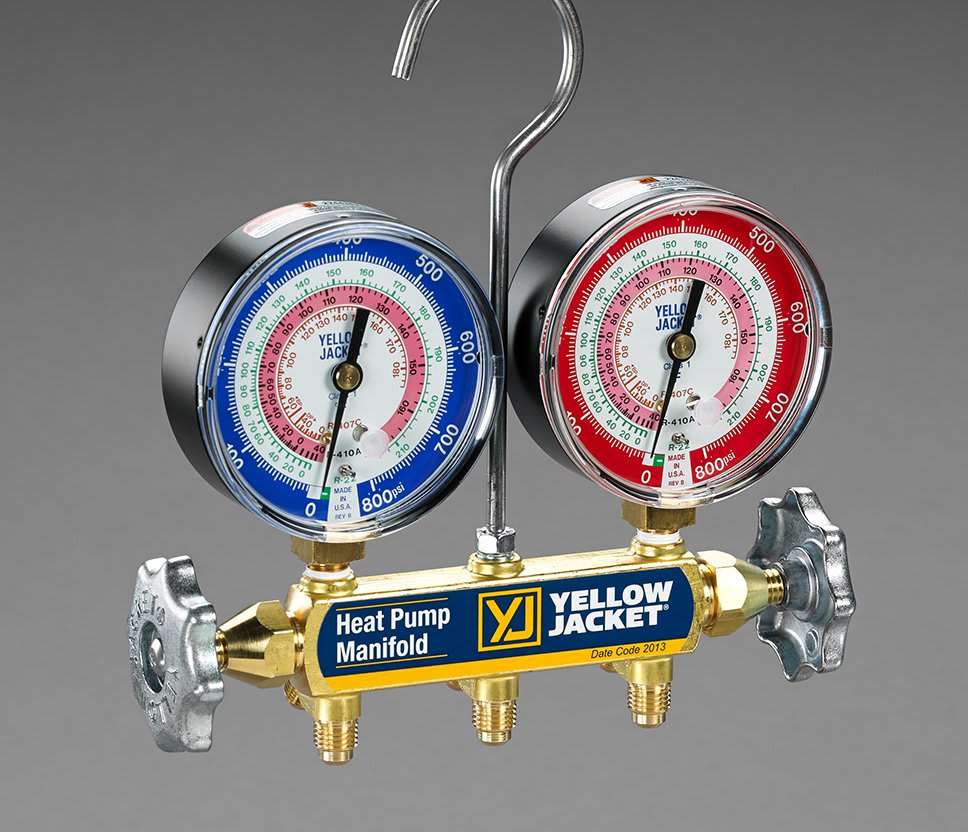

Yellow Jacket 42041 Heat Pump Manifold

Name: Yellow Jacket 42041 Heat Pump Manifold
Brand: Yellow Jacket
SKU: Yellow42041
Price: 89.46 USD
Availability: InStock

0 reviews | Catalog: 42041 | UPC: 686800420417 | Model: Yellow Jacket 42041

Compare

HEAT PUMP MANIFOLD

Please see chart below for a complete list of available packages
Large 3-1/8" gauges feature steel cases with polycarbonate crystal
High- and low-side gauges read up to 800 psi
Color-coded scales - larger dials are bold and easy to read
Dials with 1% accuracy (Class 1) full scale movement provide the level of accuracy necessary for critical charge systems
Proven sliding double "O"-ring pistons reduce wear
Long life nylon seats
Forged brass body for durability
Full porting maximizes capacity and flow
Full-size metal valve handles for easy operation
Packages with hose assemblies are UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure (File# SA9737)
Made in USA

View Product Details

List Price: $104.66

Your Price: $89.46

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Yellow Jacket 42041 HEAT PUMP MANIFOLD	Yellow Jacket 42052 HEAT PUMP MANFLD R410A/32 US	Yellow Jacket 42044 HEAT PUMP MANIFOLD W/HOSE	Yellow Jacket 42055 HPUMP MAN US R410A/32 W/HOSE	Yellow Jacket 42051 HEAT PUMP MANFLD R410A/32 EU	Yellow Jacket 42054 H PUMP MAN EU R410A/32 W/HOS	Yellow Jacket 49971 4-V HP MNFLD R410A/32 NOR EU
Price
In Stock
Refrigerant Type	R-22, R-407C, R-410A	R-410A	R-22, R-407C, R-410A	R-410A	R-410A	R-410A	R-410A
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Yellow Jacket 42041 Heat Pump Manifold

Hoses: None
Hose holder fittings: 1/4-1/4-1/4"
Refrigerant: R-22/R-407C/R-410A
Large 3-1/8" gauges feature steel cases with polycarbonate crystal

The Yellow Jacket Heat Pump Manifold features two 800 psi gauges to read all heat pump pressure conditions. Traditional lo-side manifold gauges can be susceptible to damage when heat pumps go into heating mode. Because the lo-side gauge of the Yellow Jacket Heat Pump Manifold is also designed for pressures up to 800 psi, it can read the pressure whether the pump is in heating mode, cooling mode, or transition.

Heat Pump Manifolds
UPC#	Description	Hoses	Hose holder fittings	Refrigerants
42041	Heat pump manifold	None	1/4-1/4-1/4"	R-22/R-407C/R-410A
42044	Heat pump manifold	(3) 60" black PLUS II 1/4" hoses	1/4-1/4-1/4"
49133	High side replacement gauge	800 psi, °F	-
49134	Low side replacement gauge	800 psi, °F	-
42052	Heat pump manifold	None	1/4-1/4-1/4"	R-410A
42055	Heat pump manifold	(3) 60" black PLUS II 1/4" ball valve hoses	1/4-1/4-1/4"
42051	Heat pump manifold	None	5/16-1/4-5/16"
42054	Heat pump manifold	60" black PLUS II 1/4" ball valve hoses; (2) 5/16" on service end (1) 1/4" on service end	5/16-1/4-5/16"
49971	Heat pump manifold	Manifold only	5/16-3/8-1/4-5/16"

Tech Specs

HVAC Equipment and Instruments/Manifolds and Gauges Template
Refrigerant Type	R-22, R-407C, R-410A
Test Equipment General Attributes
Product Height	2.50 IN
Product Length	9.50 IN
Product Width	8.50 IN
Country of Origin	United States
Shipping Height	2.50 IN
Shipping Length	9.50 IN
Shipping Width	8.50 IN
