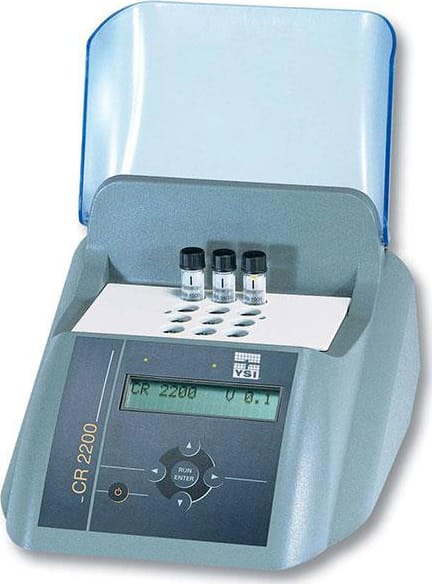

YSI CR 2200 Thermoreactor For COD And Thermal Digestions

0 reviews | Catalog: CR 2200 | Model: YSI CR 2200

Compare

1P21-2Y Thermoreactor for COD and thermal digestions for up to 12 test tubes, with 3 reactors temperatures and 8 fixed programs. 115 V version.

Thermoreactor for COD and thermal digestions for up to 12 test tubes
3 reactors temperatures and 8 fixed programs.
115 V version.

View Product Details

List Price: $920.00

Your Price: $894.44

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	YSI CR 2200 1P21-2Y Thermoreactor for COD and thermal digestions for up to 12 test tubes, ...	YSI CR 3200 1P22-2Y Thermoreactor for COD and thermal digestions, up to 24 reaction cuvett ...	YSI CR 4200 1P23-2Y Thermoreactor for COD and thermal digestions, 2 different temperature ...
Price
In Stock
# Blocks (Dry Block)	1	1	2
Voltage (Life Science)	100-120 VAC Only	100-120 VAC Only	100-120 VAC Only
Max Temp (Dry Block)	150 C	148 C	150 C
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

YSI CR 2200 - Thermoreactor For COD And Thermal Digestions

Thermoreactor for COD and thermal digestions for up to 12 test tubes
3 reactors temperatures and 8 fixed programs.
115 V version.

The thermoreactor CR 2200 is a dry temperature control device for laboratory use. It facilitates and secures the digestion using reaction cells.

The thermoreactor has 8 fixed temperature programs.

: 148 °C for 120 minutes
: 120 °C for 30 minutes
: 120 °C for 60 minutes
: 120 °C for 120 minutes
: 100 °C for 60 minutes
: 148 °C for 20 minutes
: 150 °C for 120 minutes
: 100 °C for 30 minutes

YSI CR 2200 General Specifications
Reactor type	Dry temperature control device with safety cover
Cell shafts	12 cell shafts for reaction cells 16 ± 0.2 mm
Reaction time setting	20 min, 30 min, 60 min, 120 min (via fixed programs)
Temperature setting	100 °C, 120 °C, 148 °C, 150 °C via fixed programs
Controlling accuracy	± 1 °C ± 1 Digit
Temperature stability	± 0.5 K
Overtemperature protection	190 °C ± 5 °C
Heating time (with empty thermoblock) from 25 °C to	100 °C approx. 5 min 120 °C approx. 7 min 148 °C approx. 10 min
Temperature of the enclose at an environmental temperature of 25 °C	< 30 °C with a block temperature of 148 °C
Power supply	230 VAC 50 Hz ± 15 % 115 VAC 60 Hz ± 15 % Power consumption: 280 W Fuses 2 x 3.15 AT
Enclosure	PC ABS, recyclable, high temperature resistant
Protective class	I according to DIN VDE 0700 part 1/11.90
Insulation group	Insulation group: B according to DIN VDE 0110/11.72
Overvoltage category	II
Protection	IP 20 according to DIN 40050
Ambient temperature	Storage: -25 °C to +65 °C Operation: +5 °C to +40 °C
Climatic class	2 according to VDI/VDE 3540 Relative humidity: Yearly mean: < 75 % 30 days /year: 95 % Other days: 85 % Light dew: yes
EMC	EN61326 FCC Class A
Test certificates	cETLus, CE
Dimensions D x W x H	312 x 255 x 185 mm
Weight	3 kg
Safety standards	EN61010 UL3101 CAN/CSA C22.2-1010 EN61010-2-010 IEC-CAN/CSA C22.2- 1010.2.010

Dry Block Heaters and Cooling Blocks
# Blocks (Dry Block)	1
Voltage (Life Science)	100-120 VAC Only
Max Temp (Dry Block)	150 C
Min Temp (Dry Block)	100 C
Special Dry Block Functions (inc or optional)	Sample Programs, Timer
