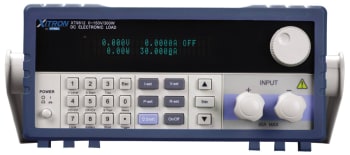

XiTron 822-XT9812B LED Programmable Electronic DC Load, 500V

Name: XiTron 822-XT9812B LED Programmable Electronic DC Load, 500V
Brand: XiTron
SKU: XiTron822-XT9812B
Price: 1630.01 USD
Availability: InStock

0 reviews | Model: XiTron 822-XT9812B

Compare

LED Programmable Electronic DC Load, 500V

Programmable electronic DC load with 300W, 0-15A current, and 500V voltage.
Six high speed operating modes: 1. Constant Current (CC); 2. Constant Resistance (CR); 3. Constant Voltage (CV); 4. Constant Wattage (CW); 5. Constant Current (CC) + Constant Voltage (CV); and 6. Constant Resistance (CR)+ Constant Wattage (CW)
LED mode supports an LED power driver test, provides steady reading, and capacitance sensitive driver compatible
Over current, over voltage, over power, over heating and reversed polarity protection
High-luminance VFD screen
Intelligent fan system that is automatically activated based on temperature changes
Soft-start time setting runs the power supply according to the pre-set voltage value
Battery and short-circuit testing functions
Capable of dynamic testing with a rising edge and falling edge settings
Supports external trigger of input and output
External current waveform monitor terminal
Supports remote voltage compensation and multi-data storage
Power-on-self-test, software calibration ready, and standard rack-mountable
Arbitrary waveform editing
USB Interface

View Product Details

List Price: $1,675.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cables - Misc
Rack Mounts

for the XiTron 822-XT9812B

XiTron 892-XT131 RS232 to RS232 Cable

Catalog: 892-XT131

(0)

In Stock!

Add to Cart

XiTron 892-RB-XT9812 Rack Adapter, XT9812, Black

Catalog: 892-RB-XT9812

(0)

In Stock!

Add to Cart

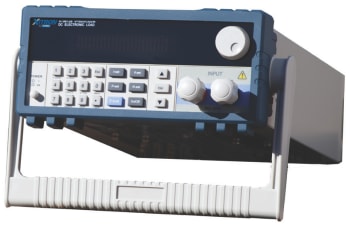

XiTron 822-XT9812B LED Programmable Electronic DC Load, 500V

LED Electric DC Load

Supports external trigger of input and output
Supports remote voltage compensation and multi-data storage
Power-on-self-test, software calibration ready, and standard rack-mountable

The XiTron 822-XT9812B LED Programmable Electronic DC Load is a new generation product from XiTron designed for LED driver or DC Power Supply applications. The 822-XT9812B features a 300W power, 0-15A current, and 0-500V voltage.

There is a special circuit that has been designed primarily for the LED driver. The design utilizes high-performance semiconductors with high speed and high accuracy, and resolutions of 0.1 mV and 0.01 mA (the basic accuracy is 0.03%, the basic current rise speed is 2.5 A/us).

With wide applications from production line settings

The 822-XT9812B has wide applications from production line settings to the engineering bench. Target markets include the following type of manufacturers and markets; LED driver, cell phone charger, cell phone battery, electronic vehicle battery, switching power supply and linear power supply manufacturers, research institutes, automotive electronics, aeronautics and astronautics, solar cells and fuel cell markets.

XView Software Compatible

While all Vitrek precision test equipment is designed to be used in a completely stand-alone manner, there are times when external tools can aid or enhance the operation of an instrument. XView software tools and drivers are designed to help easily configure an instrument from a single screen or are used to view a complete set of measurements in a single screen. Other XView tools are designed for data collection where results can be recorded in an Excel-compatible file for post-processing, insertion into reports, or simply for archival purposes.

Model: 822-XT9812B Specifications
Description	LED Programmable Electronic DC Load, 500V
INPUT RATING
Power	300W
Current	0-15A
Voltage	0-500V
CC MODE
Range	0-15A
Resolution	1mA
Accuracy	0.03% + 0.05%FS
CV MODE
Range	0.1-150V
Resolution	10mV
Accuracy	0.03%+0.02%FS or 0.05%(
CR MODE (Input Current ≥ 10%FS) (Input Voltage ≥ 10%FS)
Range	0.03Ω-5kΩ
Resolution	16 digit
Accuracy	0.1%+0.1%FS
CW MODE (Input Current ≥ 10%FS) (Input Voltage ≥ 10%FS)
Range	0-300W
Resolution	10mW
Accuracy	0.1%+0.1%FS
V MEASUREMENT
Voltage	0-150V or 0-500V
Resolution	10mV
Accuracy	0.015%+0.03%FS
I MEASUREMENT
Current	0-15A
Resolution	0.1mA
Accuracy	0.03%+0.08%FS
W MEASUREMENT (Input Current ≥ 10%FS) (Input Voltage ≥ 10%FS)
Power	300W
Resolution	10mW
Accuracy	0.1%+0.1%FS
Battery Measurement	Battery Input: 0.1-150V;Max. Measurement: Capacity=999AH Resolution=0.1mA; Time Range=1S-16H
Dynamic Measurement	Transition List: 0-25kHZ; 2.5A/μS; T1&T2:60μS-999S; Accuracy:+15% offset+10%FS
Current Soft- start-up time	1mS; 2mS; 5mS;10mS; 20mS; 50mS;100mS; 200mS; 500mS and 1000mS Accuracy:+15% offset+10%FS
LED Test	Press shift+ up button to enter LED test. Repeat to escape the LED test. A D character shows on lower right of the display in the LED test
SHORT CIRCUIT
Constant Current (CC)	≒33A or 18A(B)
Constant Voltage (CV)	0V
Constant Resistance (CR)	≒ 28mΩ or 200mΩ(B)
TEMPERATURE
Operating	0~40ºC
Storage	–10ºC ~ 70ºC
WEIGHT
Lbs/Kgs	7.7 lbs/3.5kgs
Operating Power Supply	100V/200V, 60Hz/50Hz Manual Switch

Tech Specs

Power Supplies/Electronic Loads Template
Watts	300 Watts
Max Current	15 A
Max Voltage	500 V
Min Current	0 A
Min Voltage	0 V
Programable	No
Test Equipment General Attributes
Product Weight	7.7 LBS
Product Height	15.00 IN
Product Length	10.00 IN
Product Width	15.00 IN
Shipping Weight	7.7 LBS
Country of Origin	United States
Shipping Height	15.00 IN
Shipping Length	10.00 IN
Shipping Width	15.00 IN
